Fully Automatic IBC Reconditioning, IBC Toto Washer Tunnel

System overview

The automatic IBC Tank cleaning line uses automation technology to realize manual forklift loading and unloading of barrels and adopts the process of assembly line to realize the function of automatic cleaning.

The equipment has the characteristics of high degree of automation, high cleaning efficiency, no dead spots in cleaning, safety and reliability, good working environment, low labor intensity, and saving manpower and material resources. It is the inevitable development trend of modern companies.

It is designed to remove a variety of product residues from IBC totes, with the capability to remove thick or dried-on residues. Unlike similar systems, the recirculation wash allows easy removal of oily residues using caustic chemicals. This system is designed to clean 275 and 330 gallon IBC totes with 200mm cover.

IBC tote washer has a variety of uses; it can be used to clean totes prior to shipment, to remove hazardous waste materials, and/or to prepare totes for sale.

Design feature of IBC tank washer tunnel

• Independently designed according to clients' working conditions, fully automatic internal and external cleaning , simple operation, stable performance and high cleaning efficiency;

• The cleaning time of each tote is about 2-5 minutes, which saves manpower and material resources, greatly improves production efficiency, and greatly reduces labor intensity;

• The system can be equipped with 5-500 bar pressure cleaning to solve the cleaning problem of various working conditions;

• The system adopts a precision 360° full coverage high-pressure three-dimensional cleaning head, which has high impact force and low liquid consumption

• Only 1-2 manual operations are required, which has high economic benefits and can quickly recover the investment cost.

• Quality and productivity have also been greatly improved.

Cleaning process

Upper bucket, exterior wash, interior wash (chemical cleaning),interior wash, draining, pressure testing, finish cleaning, lower bucket . Other process can be customized, such as drying,etc.

Benefits
Fast: Clean any tote in 3-7 minutes
Clean the entire IBC tote, including the top and corners
Powerful: Clean a variety of residues
Affordable: A fraction of the cost of CIP systems

Residues:
Any and all including:
Paints, adhesives, chemicals
Petroleum products
Food and beverages products and ingredients
Pharmaceutical products and ingredients
Personal care products and ingredients products
And many more.

Common application:

In all industries:

• Totes

• IBCs

• Bulk container

• Shipping container

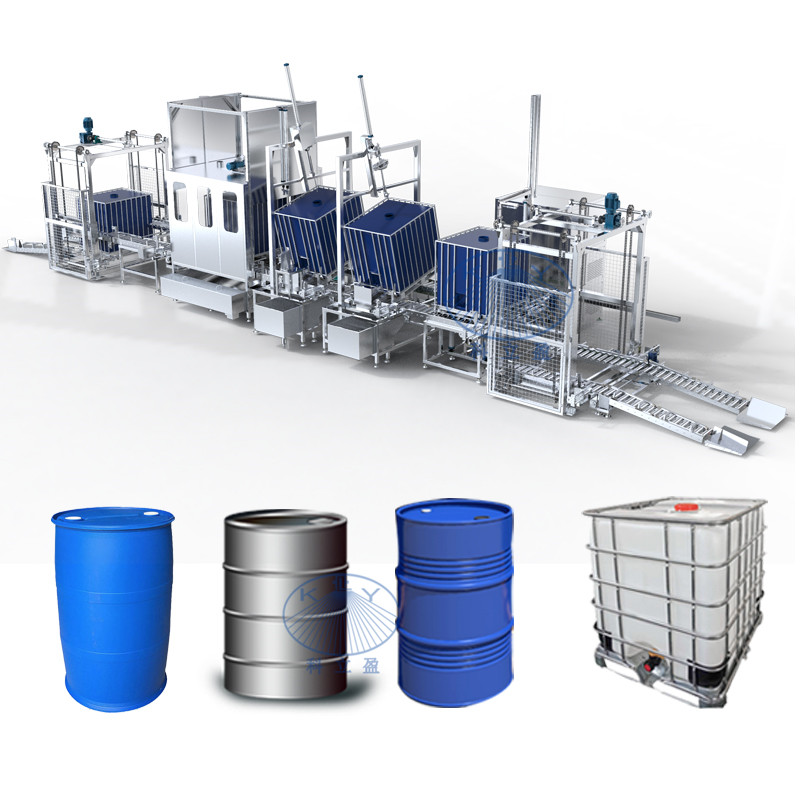

Product Photo:

Cleaning effect of IBC tote washer:

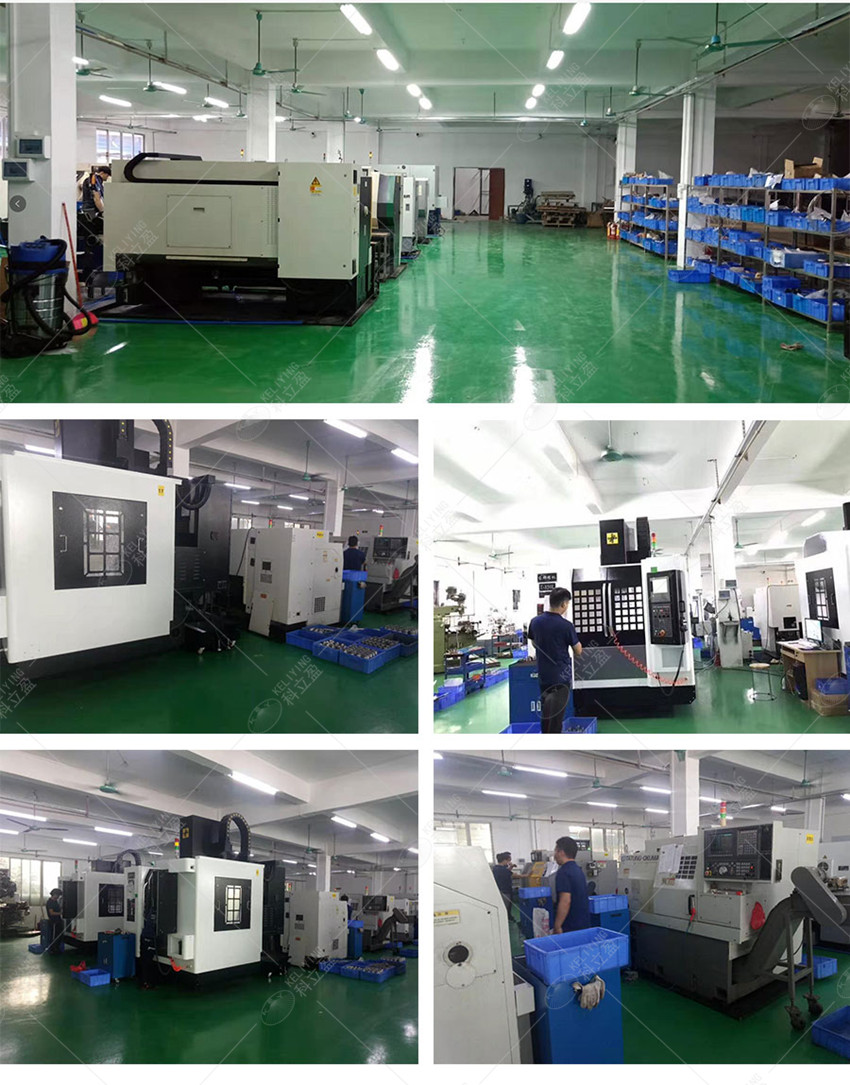

Our factory:

Our team:
