    IBC tote cleaning machine
    IBC tote cleaning machine
    Send Inquire

    IBC tank cleaning machine


    Material
    stainless steel, metal
    Power
    4 KW
    Warranty
    1 Year
    Max. Pressure
    60
    Mains
    380V / 50HZ
    Machinery Test Report
    Not Available
    Video outgoing-inspection
    Provided
    Warranty of core components
    Other
    Core Components
    Motor, Pump, Hose, Water tank , Filter, Cleaning nozzle, Spray gun
    Key Selling Points
    Easy to Operate
    Weight (KG)
    120kg
    Model
    MDIBC
    Operating pressure:
    40-60 bar
    Max. tank diameter
    1.5m
    Spay angle
    360°
    Material
    316L stainless steel

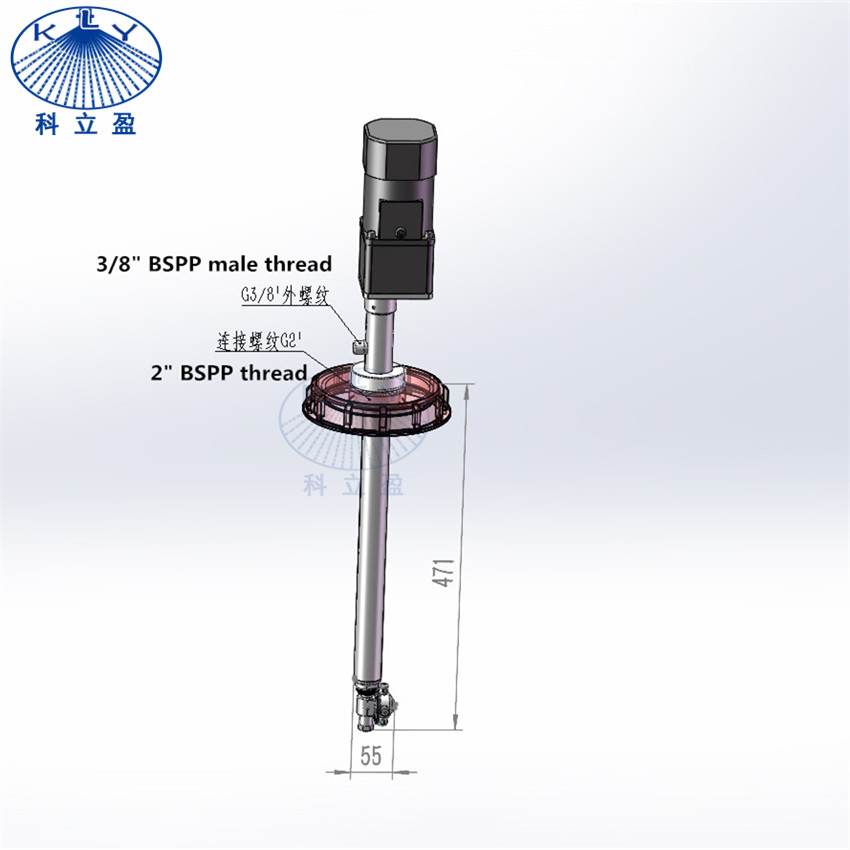

    Connection
    3/8''-2'' thread or flange connection
    Tempreture range
    60°C normal version

    KLY IBC tote cleaning machine offers quick and effective cleaning for Intermediate Bulk Containers (IBC) or totes, commonly seen in modern production plants.  With few parts and intuitive controls, the IBC tote washer is simple to install and operate.


    It is designed to remove a variety of product residues from IBC totes, with the capability to remove thick or dried-on residues. Unlike similar systems, the recirculation wash allows easy removal of oily residues using caustic chemicals. This system is designed to clean 275 and 330 gallon IBC totes


    IBC tote washer has a variety of uses; it can be used to clean totes prior to shipment, to remove hazardous waste materials, and/or to prepare totes for sale.


    Standard design

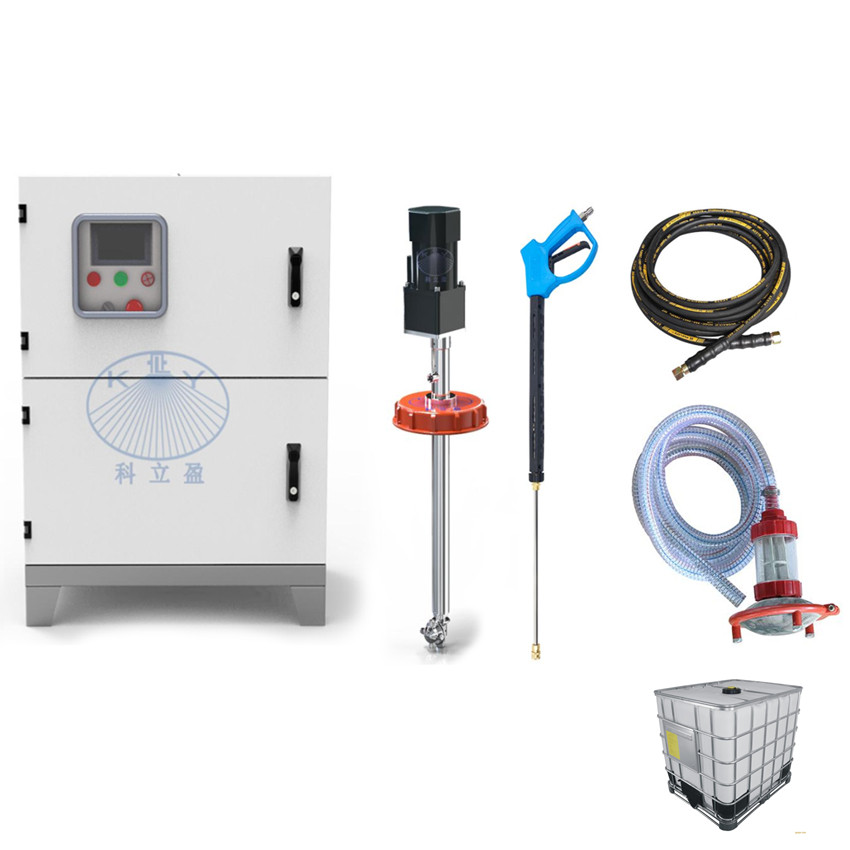

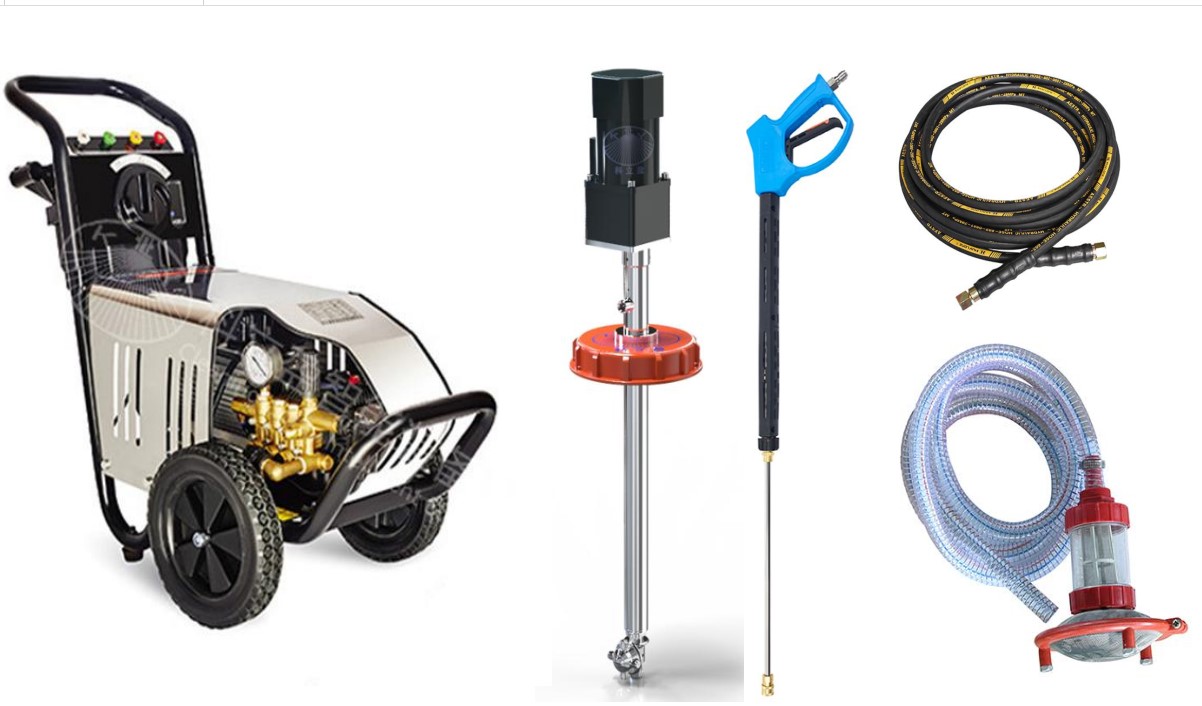

    The KLY IBC tote cleaner consists of all the necessary components for designed operation and installation. Included in this system is the  pump station, water tank, pressure gauge,filter, high pressure hose, and IBC tank cleaning nozzles.


    Benefits

    Fast: Cleans any drum in 2-6 minutes

    Cleans the entire IBC tote, top and corners

    Versatile, cleans a variety of residues

    Quick ROI



    Applications

    IBC totes

    In all industries


    Residues

    Latex, Paints, adhesives, chemicals

    Petroleum products

    Food and beverages products and ingredients

    Pharmaceutical products and ingredients

    Personal care products and ingredients

    ...and many more

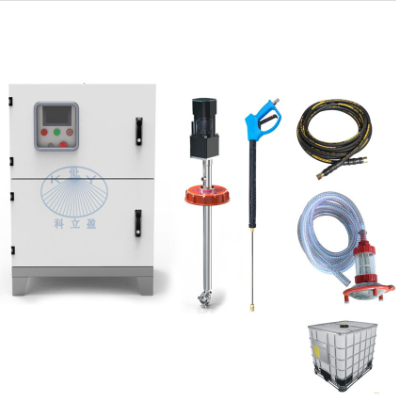

    Product Photo:


    Performance data:

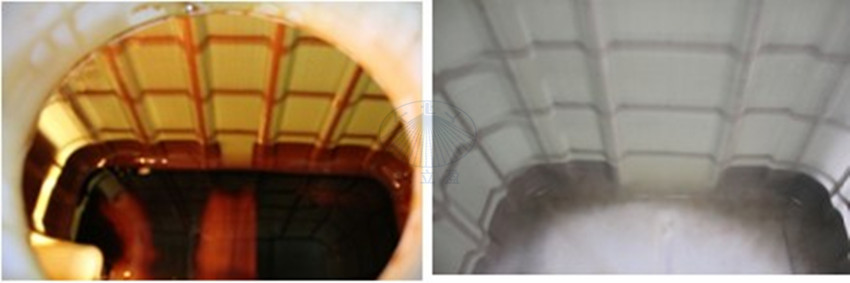

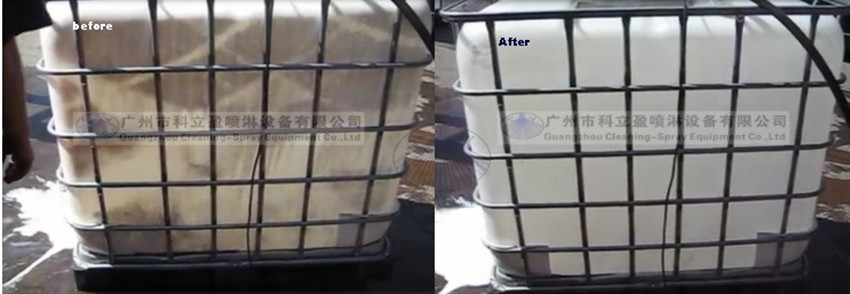

    Cleaning effect of IBC cleaning machine:

    1 (2)_副本.jpg

    2 (2)_副本.jpg



    Cleaning process:
