Design feature:

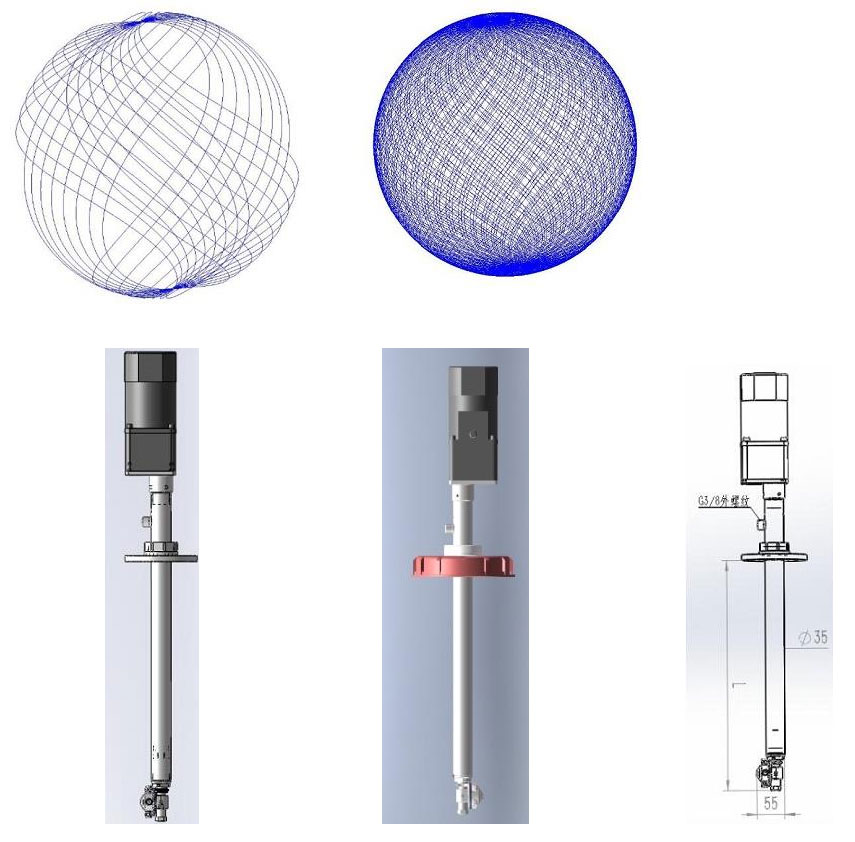

MD series are driven by the motor with external gear and provides 360° impact indexed coverage for the cleaning of the inside of tanks and process vessels.

1. Using dynamic seal at leakage point to reduce leakage,

only 3% leakage, thus save cleaning fluid.

2. The nozzle have a unique steady flow design which can

make the jet be more concentrated, greater impact.

3. Driven by external motor, thereby reducing the pressure

loss of water flow, resulting in higher water impact.

4. Compact build ideal for small openings

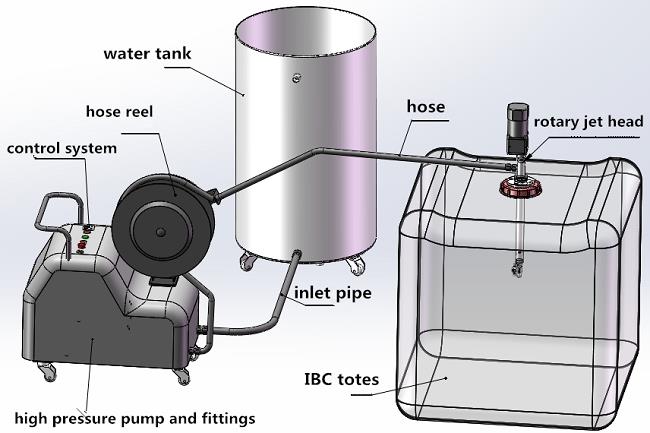

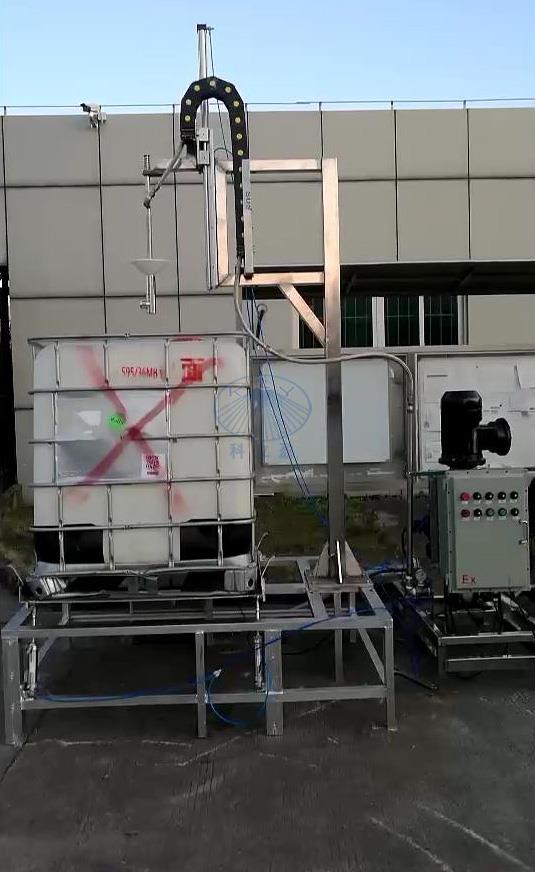

Application:

Model MD series is a highly versatile machine and is

applicable in most all types of tanks for process,

storage, and transportation. It can be used as a portable

unit or permanently mounted.

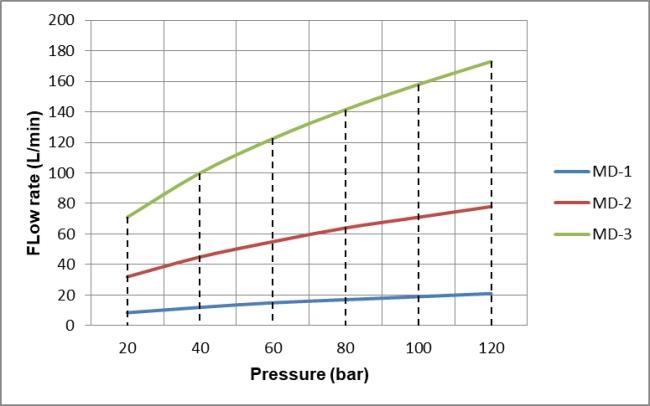

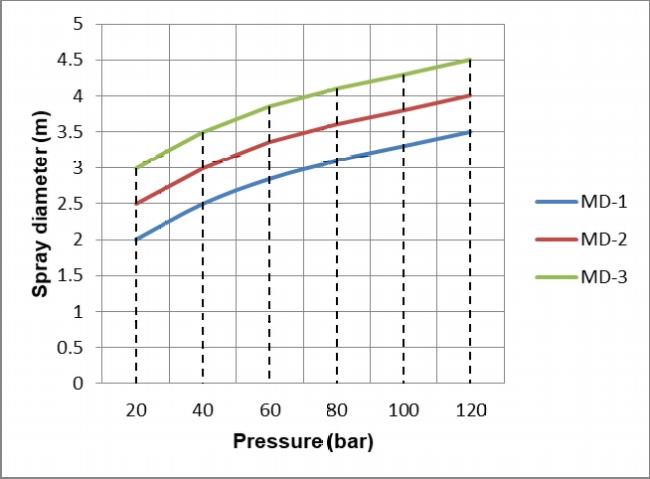

Performance data:

Material:  304SS or 316SS 304SS or 316SS

Spray angle: 360 degree  360°

Max. spray diameter: 4m 4m

Max. operating temperature: 95 °C 95°

Operating pressure:    40-120 bar 3-100 bar

Connection: flange or thread flange or thread









Cleaning cycle:
