High efficient rotating tank cleaning nozzle
Model |
DG2 3D Rotating Tank Cleaning Nozzle |
Material |
316L SS |
Max. Tank Diameter |
2m |
Operating Pressure |
5-20Bar |
Temperature Range |
Below 90 Degree |
Installation |
Operation In Every Direction Is Possible |
Application |
Cleaning And Rinsing Of Small Sized Tanks, Keg, Drum, Container I.E. Chemical Industry, Drink And Food Industry. |
Design feature:
● Very high cleaning performance already at low pressure
● Small diameter to insert in small openings
● Driven and lubricated by the cleaning fluid
● Systematically cleans the entire tank interior(360°)
● Robust, low-maintenance stainless steel construction

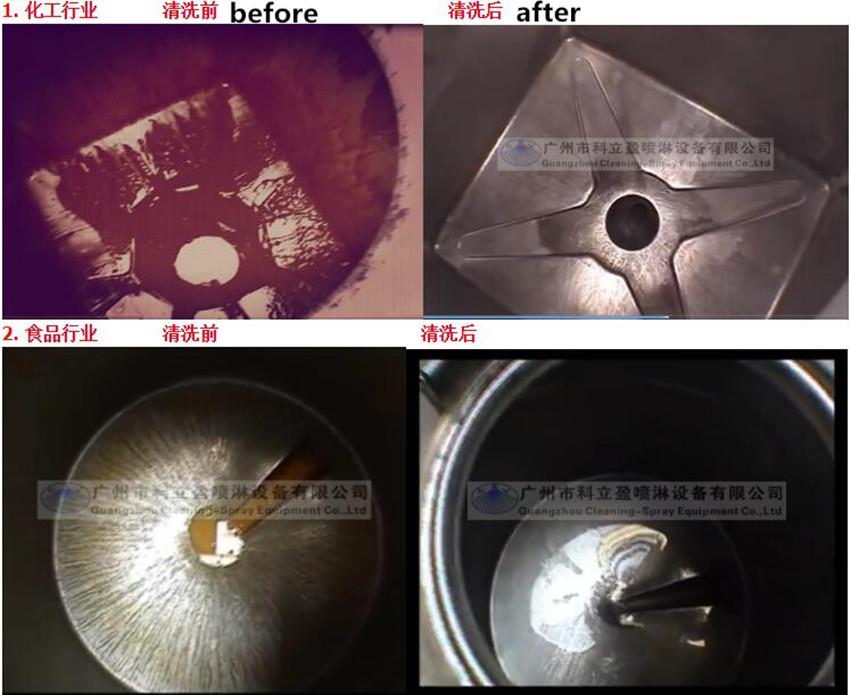

● 100% thoroughly clean, every time
● Optimized structural design makes water jet with greater impact
● Excellent seal design, only 1% leakage of water
● Designed with a separate gearbox, uneasy to get clogging
Programmed rotation machines:
The cleaning fluid drives via the turbine an internal gear reducer that keeps the sprayer turning in two planes.

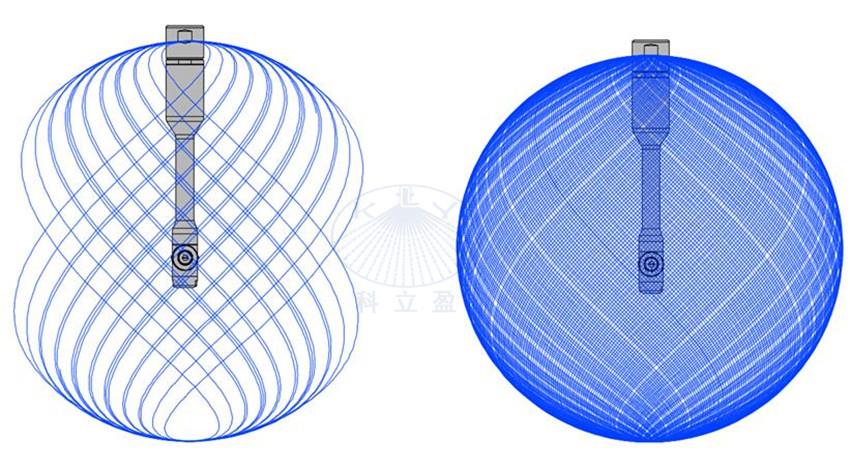

In the course of spraying cycle, the jets sweep the entire inside surface of the tank according to the preprogrammed, model-specific pattern.
This takes a certain amount of time, but these models generate the highest jet pressures (= force of impact) and are therefore ideal for the toughest of cleaning tasks.
The standard machine configuration uses 2 or 4 nozzles to blast the tank walls and rinse all surfaces. In operation, the unit has to run for the cycle time 2-4 min depending on type and pressure. This ensures full cleaning. For extremely difficult applications the cleaning time might have to be extend.
Application:

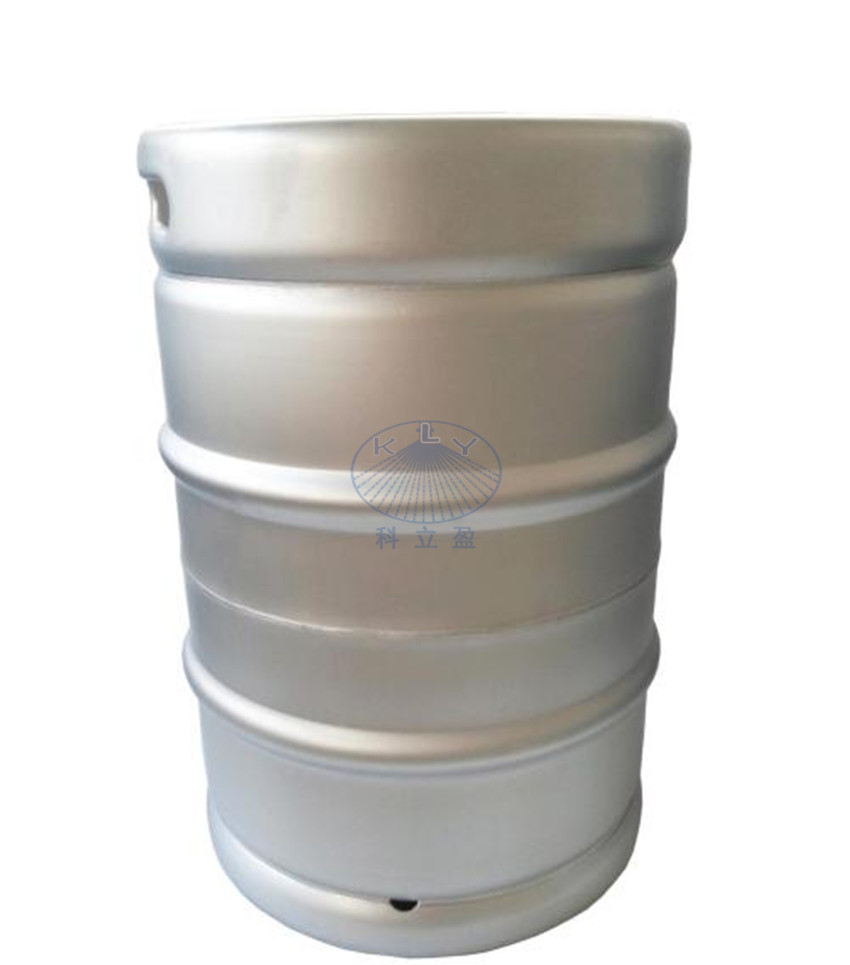

DG2 rotary jet head is suitable for 3D cleaning of small containers, such as oak barrels, beer barrels, 200L iron drums, etc. It is commonly used in beer industry, wine industry, beverage industry, and where a high cleaning performance is required.

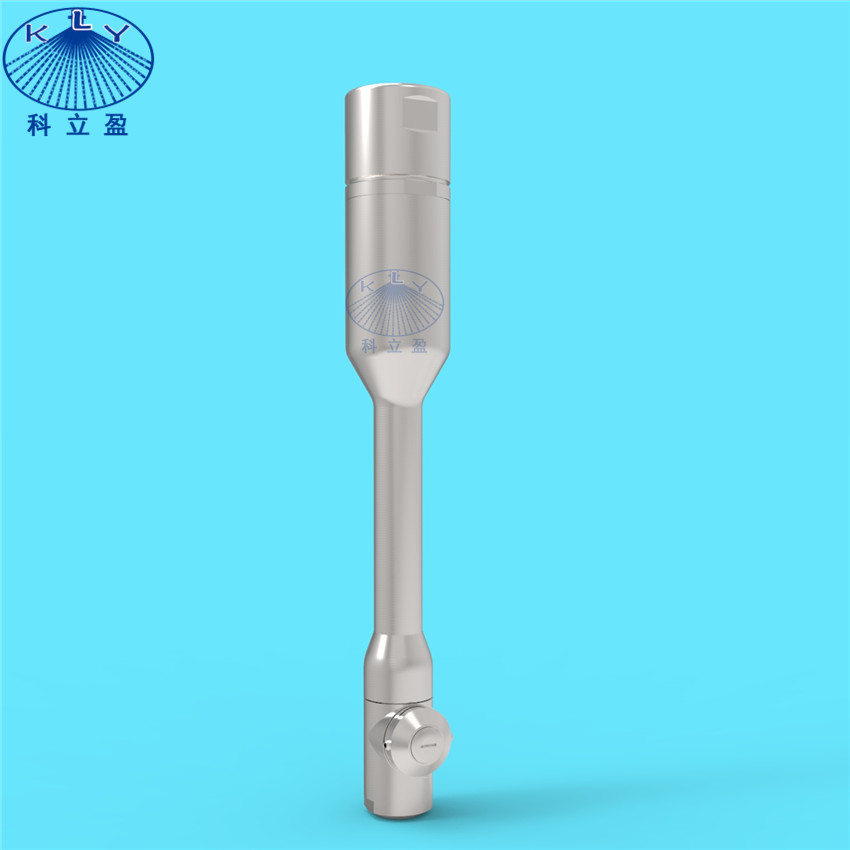

Product Photos:
