Model | MMD series rotary jet head |
Material | 316LSS ,304SS |
Operating pressure | 2-200 bar |
Recommended operating pressure | 10-150 bar |
Max. pressure | 200 bar |
Max. operating temperature | standard version 60°C, High temperature version 120°C |
Max. ambient temperature | standard version 100°C, High temperature version 200°C |
Installation | operation in every direction is possible |
Nozzle orifice size | 1.0, 1.2, 1.5mm ( other orifice size on request) |
Spray diameter | 1-1.5m |
Length of lance | 500, 1000mm (on request) |
Parameters of motor | Voltage DC12V, power 60W (optional explosion-proof motor, optional speed motor) |
Connection | thread or flange |
Water inlet | 3/8" BSPP (on request) |
Cleaning cycle time | 4-6 minutes |
Weight | 5-9 kg |
Common application:
Model MMD series is a highly versatile machine and is applicable in most all types of
tanks for process, storage, and transportation. It can be used as a portable unit or permanently mounted.
e.g: in food industry, beverage industry, pharmaceutical industry and chemical industry
MMD series rotary jet head are driven by the motor with external gear and provides 360° impact indexed coverage for the
cleaning of the inside of tanks and process vessels.
Using dynamic seal at leakage point to reduce leakage, less than 3% leakage, thus save cleaning fluid.
The nozzle have a unique steady flow design which can make the jet be more concentrated, greater impact.
Driven by external motor, thereby reducing the pressure loss of water flow, resulting in higher water impact.
Compact build ideal for small openings
Maximum pressure up to 200 bar

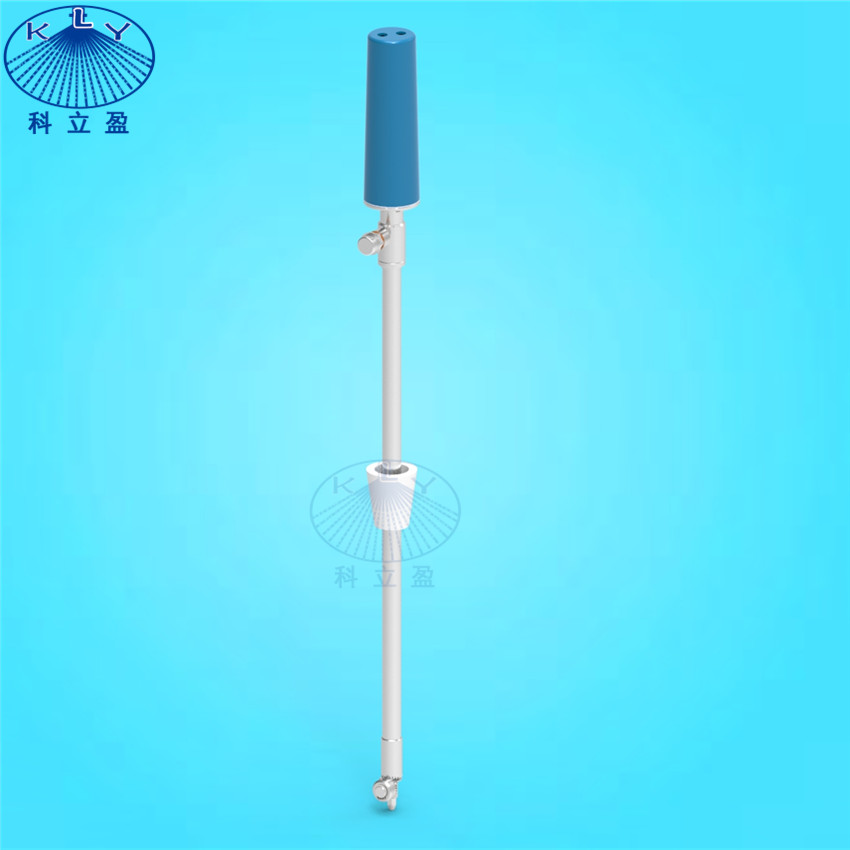

Product photo:

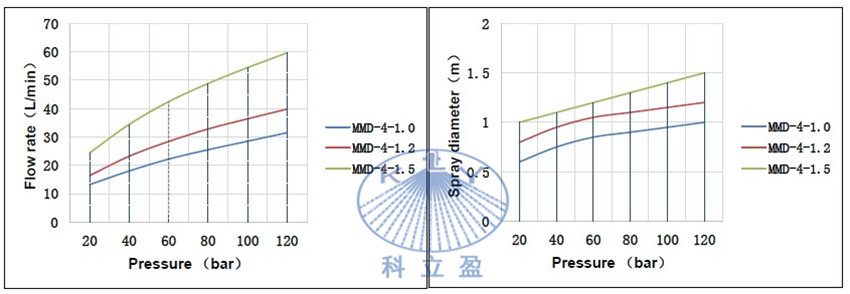

Performance Data:

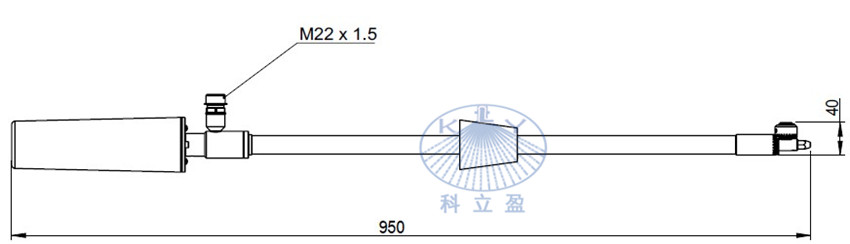

Dimension:

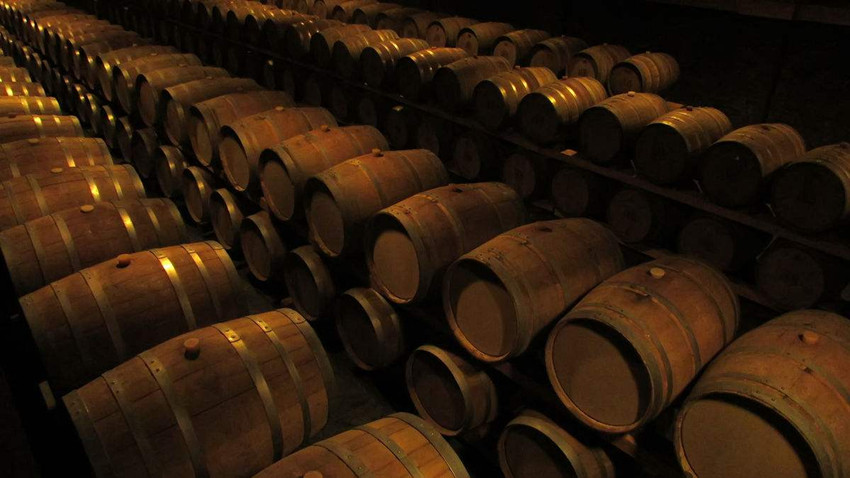

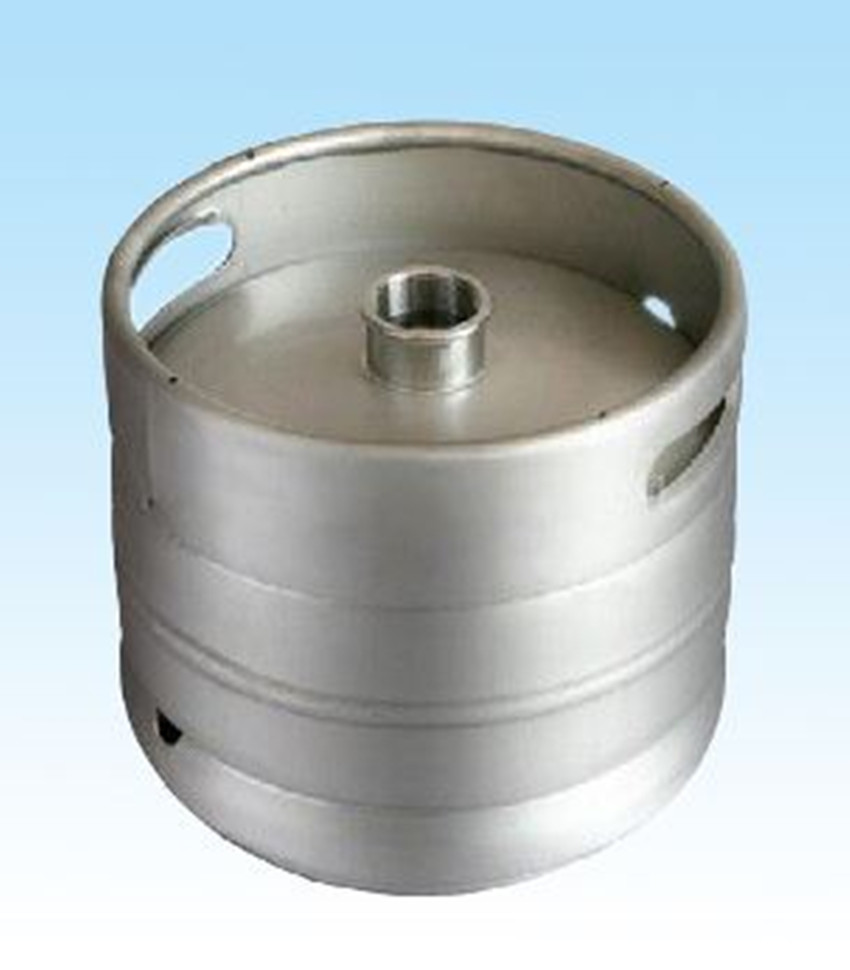

Application:
