QMD high presure rotary jet head

Send Inquire

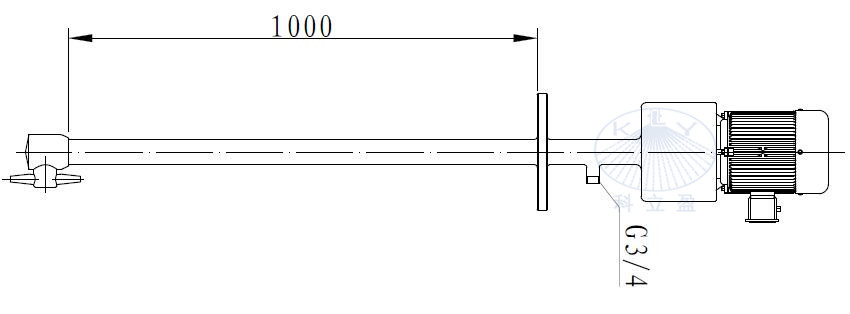

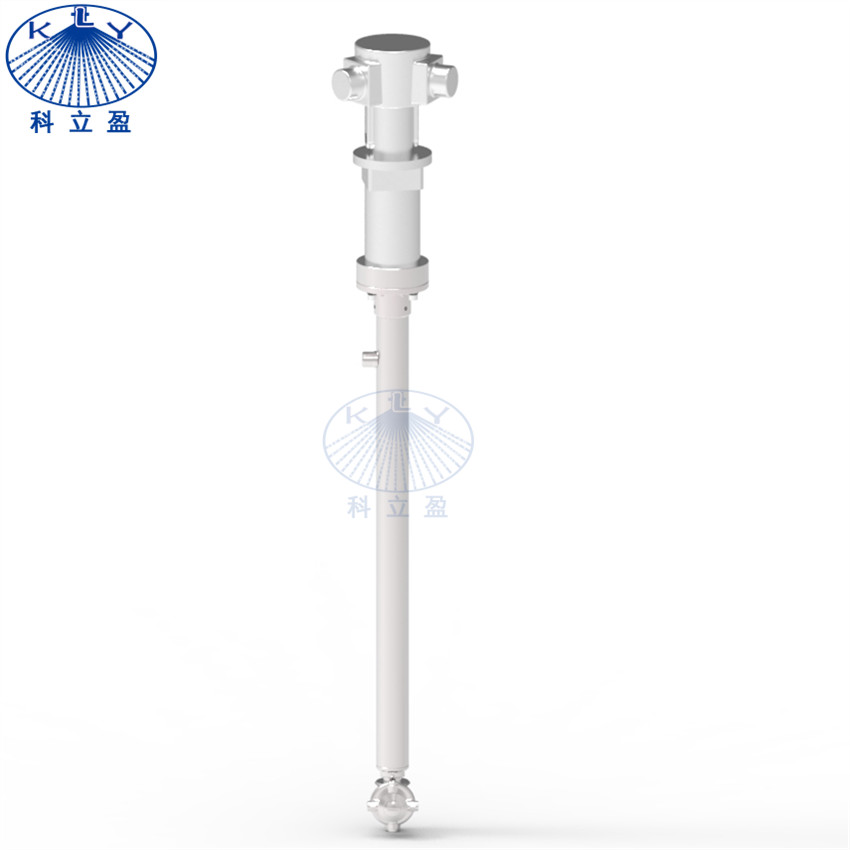

QMD pneumatic high pressure rotary jet head

Model	QMD rotary jet head
Material	316LSS or 304SS
Connection	thread or flange connection

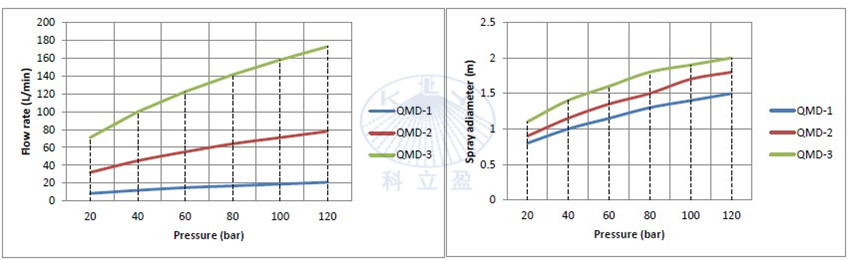

Recommanded pressure	30-100 bar
Temperature	95°
Max. tank diameter	1-2m
Application	rinsing and cleaning of tanks / containers
Filteration	Line strainer with a mesh size of 0,3 mm/50 mesh

Design features :

Using dynamic seal at leakage point to reduce leakage, only 3% leakage, thus save cleaning fluid.
The nozzle have a unique steady flow design which can make the jet be more concentrated, greater impact.
Driven by external air motor, thereby reducing the pressure loss of water flow, resulting in higher water impact.
Compact build ideal for small openings
Explosion-proof
Three-dimensional cleaning, 360 degree impact coverage

Common application:

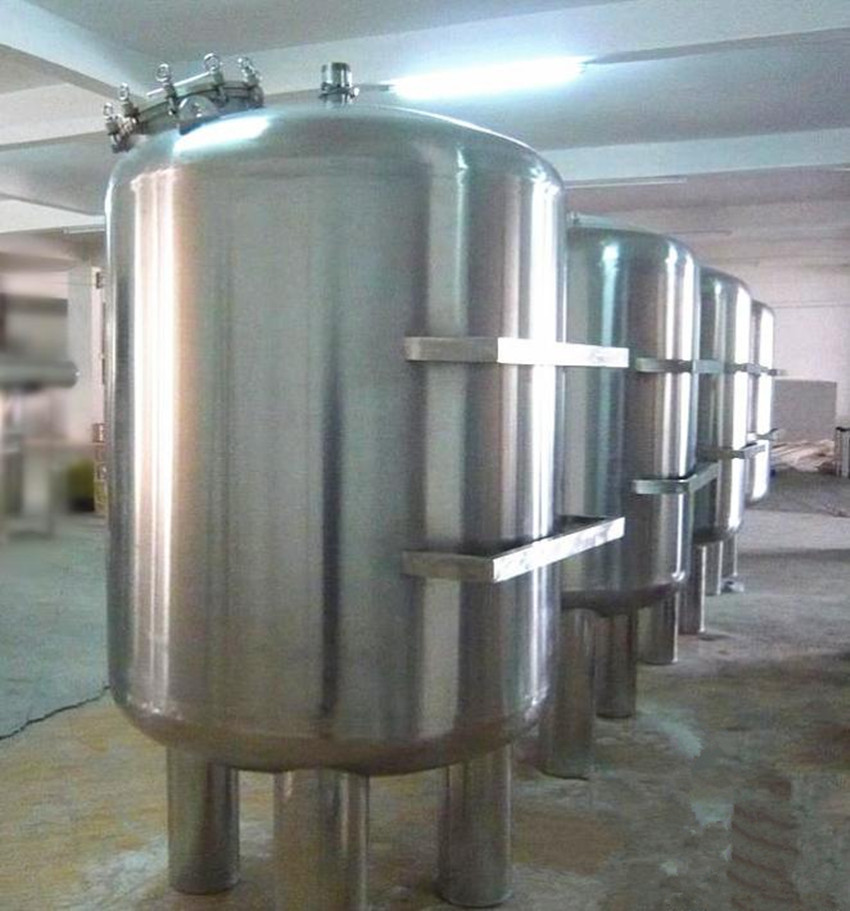

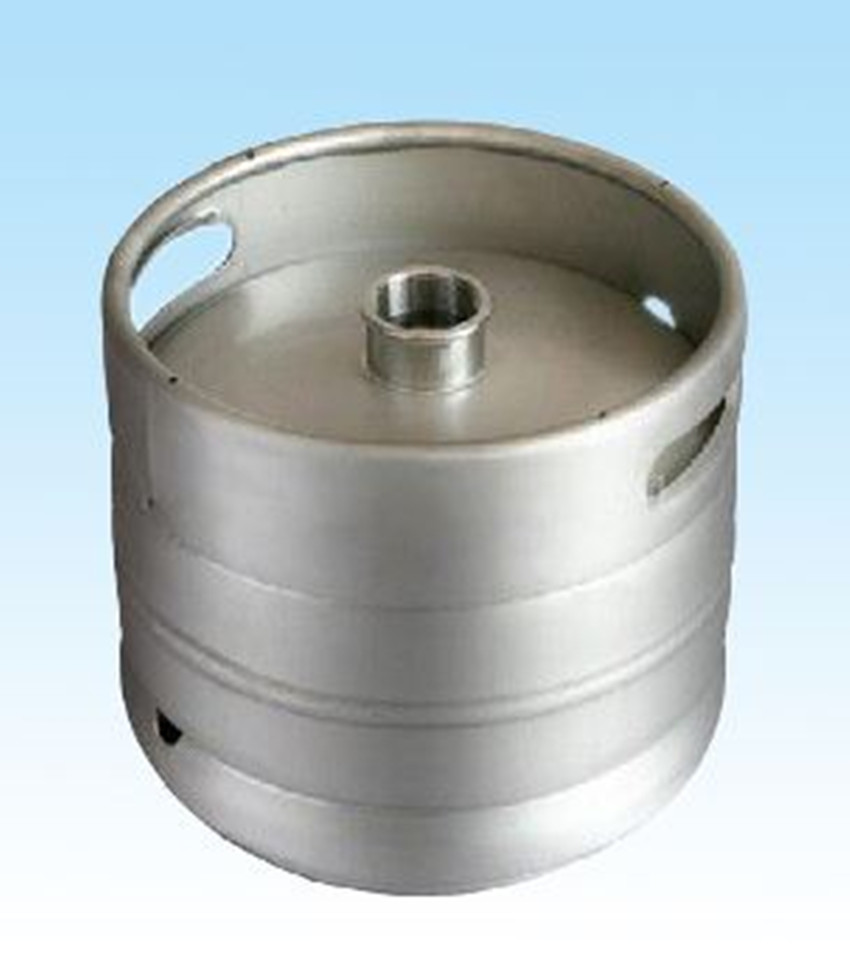

Model QMD series is a highly versatile machine and is applicable in most all types of

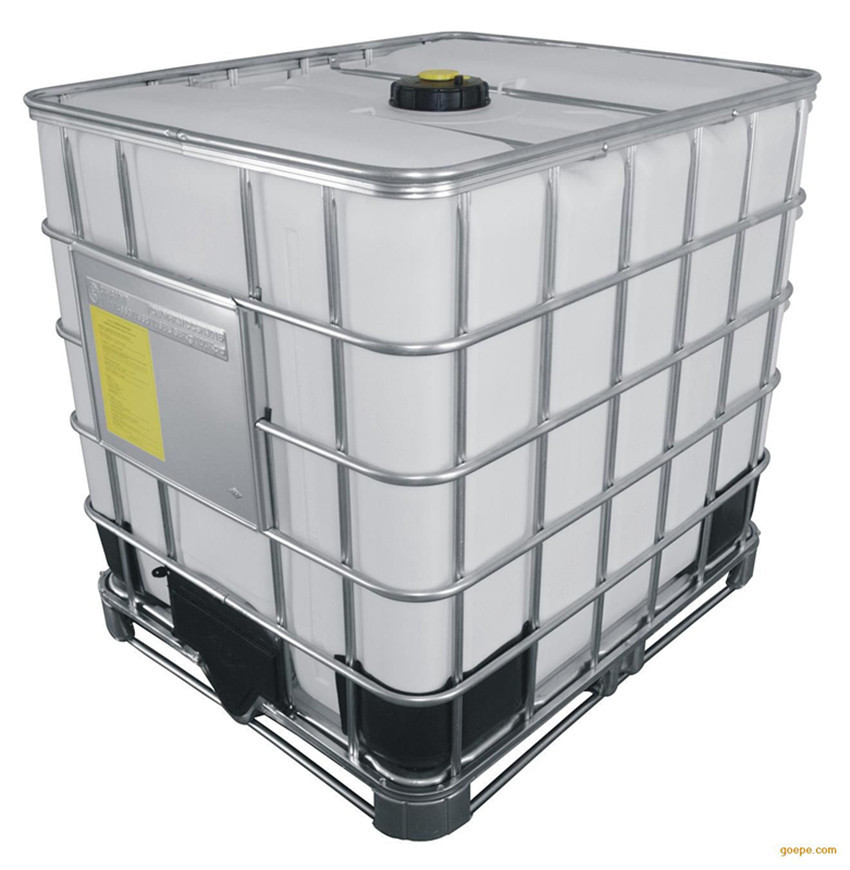

tanks for process, storage, and transportation. It can be used as a portable unit or permanently mounted. It is suitable for cleaning of IBC totes or reactor.

e.g: in food industry, beverage industry, pharmaceutical industry and chemical industry
