DG5 3D rotary jet head
Operating Range
Pressure: 50 to 340+ PSI (3 to 20 bar)
Temperature: 32° to 195°F (0° to 95°C)
Flow Rate: 25 to 220 l/min)
Cleaning Radius: 8 - 10.5′ (2.5 - 3.2 Meters)
Wash Cycle Time: 4-15 Minutes
Impact: 12 lbs (5.5 kg) at 10′(3m)
Overall Dimensions
Height: 8.38″ (231 mm)
Body Diameter: 1.92″ (49 mm)
Weight: 5.06 lb (2.6 kg)
Design feature:
The DG5 rotary jet head provides 3D indexed impact cleaning over a defined time period.
It is automatic and represents a guaranteed means of achieving quality assurance in tank cleaning.
● Very high cleaning performance already at low pressure
● Bearings in the rotating tee and nozzle housings are self-lubricating
● Robust, low-maintenance stainless steel construction
● Optimized structural design makes water jet with greater impact
● Excellent seal design, only 3% leakage of water
● Designed with a separate gearbox, uneasy to get clogging
Application:
DG5 is suitable for processing, storage and transportation tanks and vessels between 250 and 1.250 m3 (66.000 to 328.000 US gallons).
Used in marine, oil & gas ,breweries, food and dairy processes and many other industries.

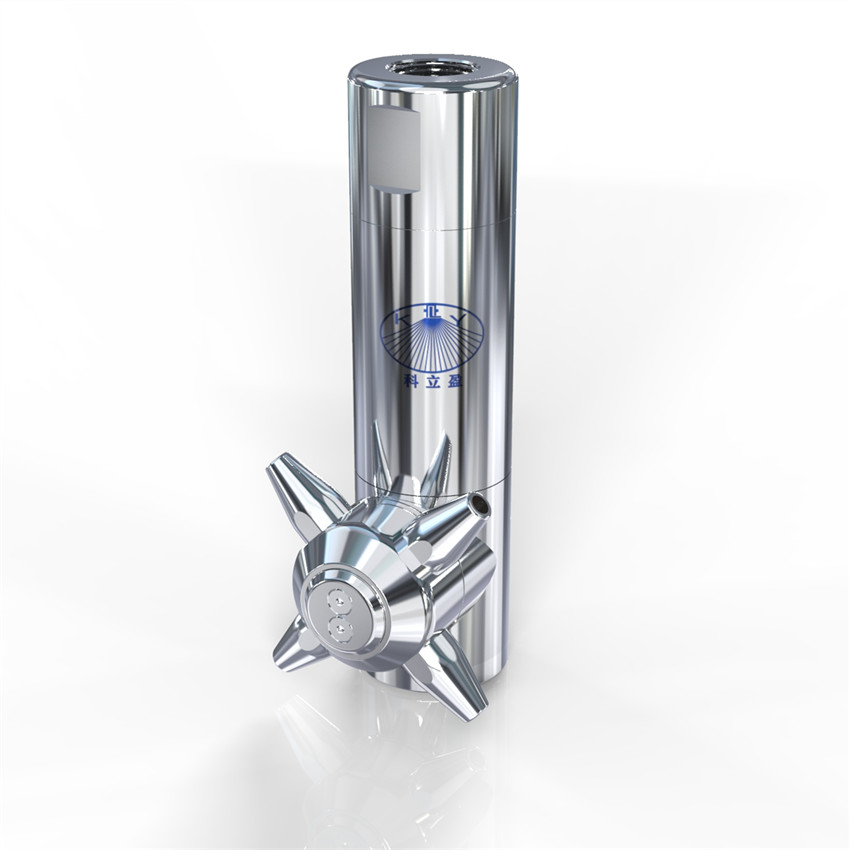

Product Photos:

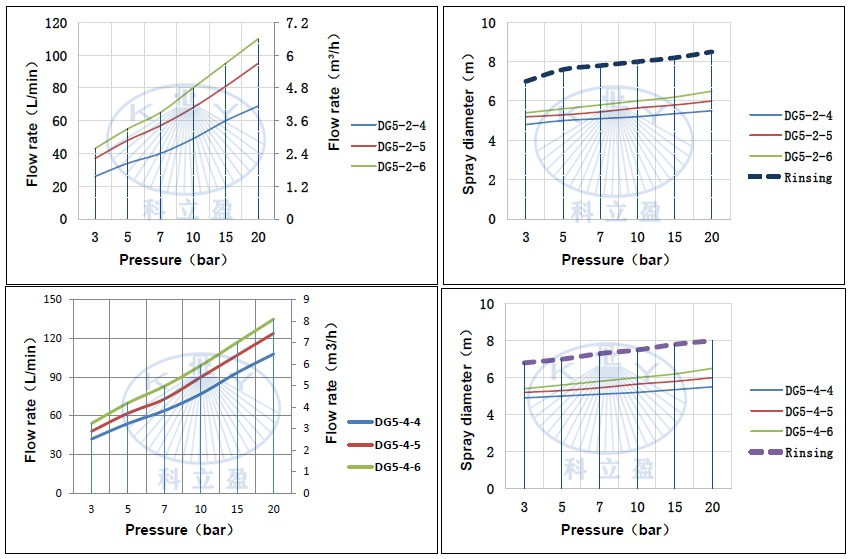

Performance data:

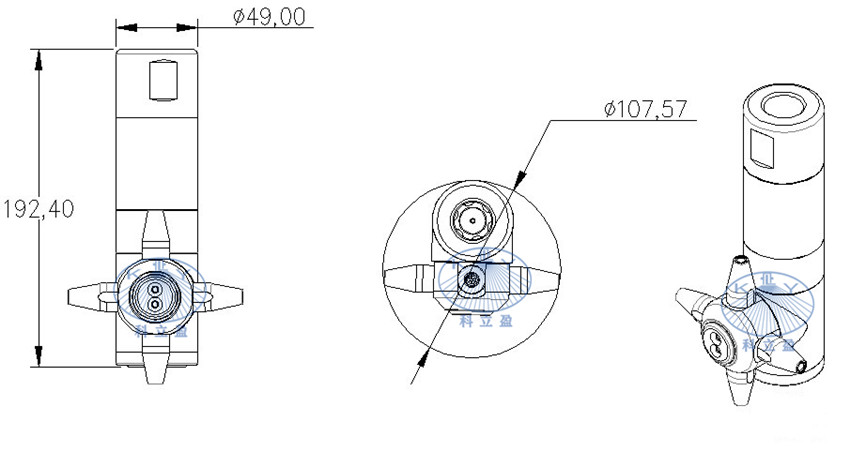

Dimensions of DG5 tank cleaning nozzle:

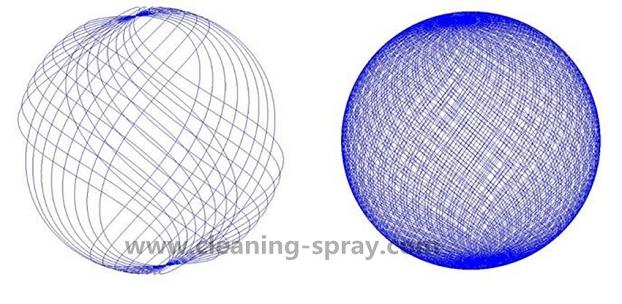

Cleaning process:

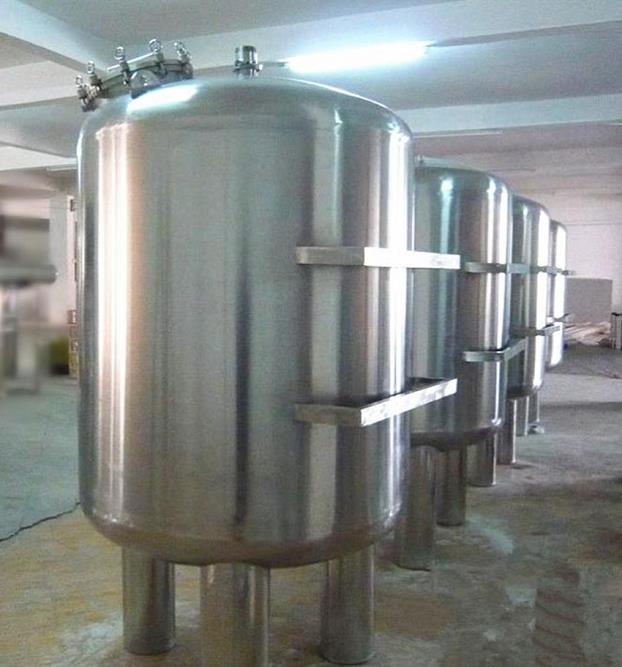

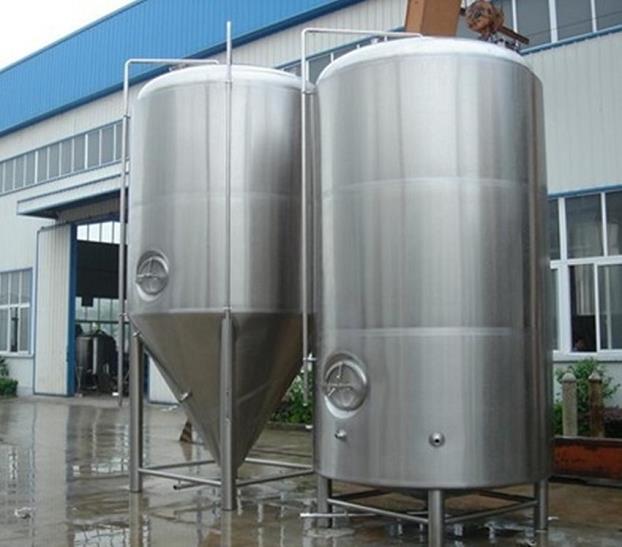

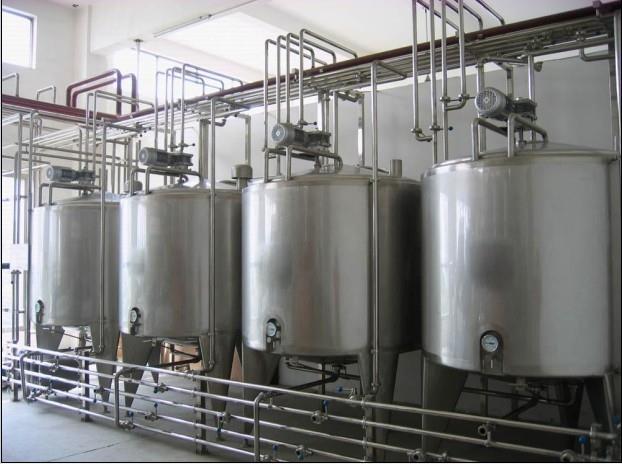

Application of DG5 3D rotary tank cleaning nozzle:

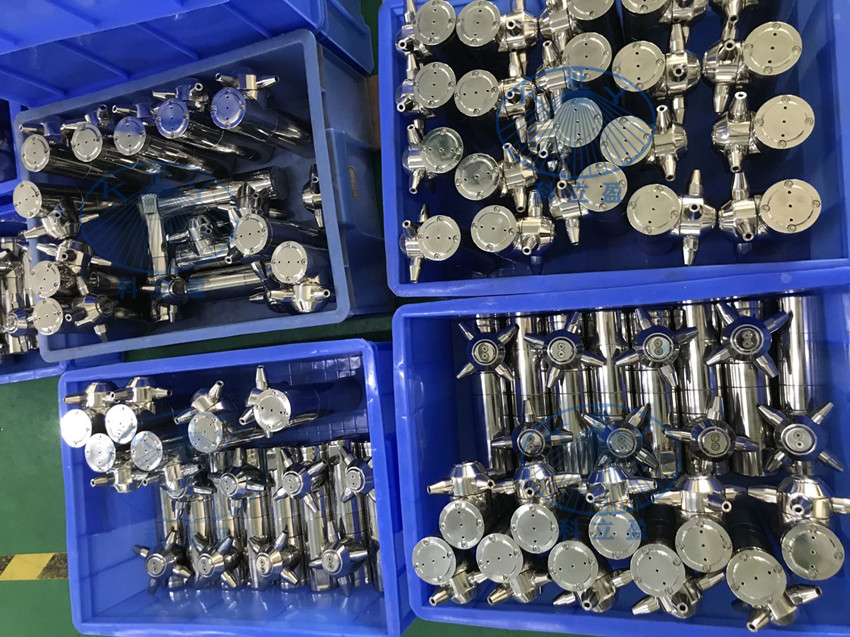

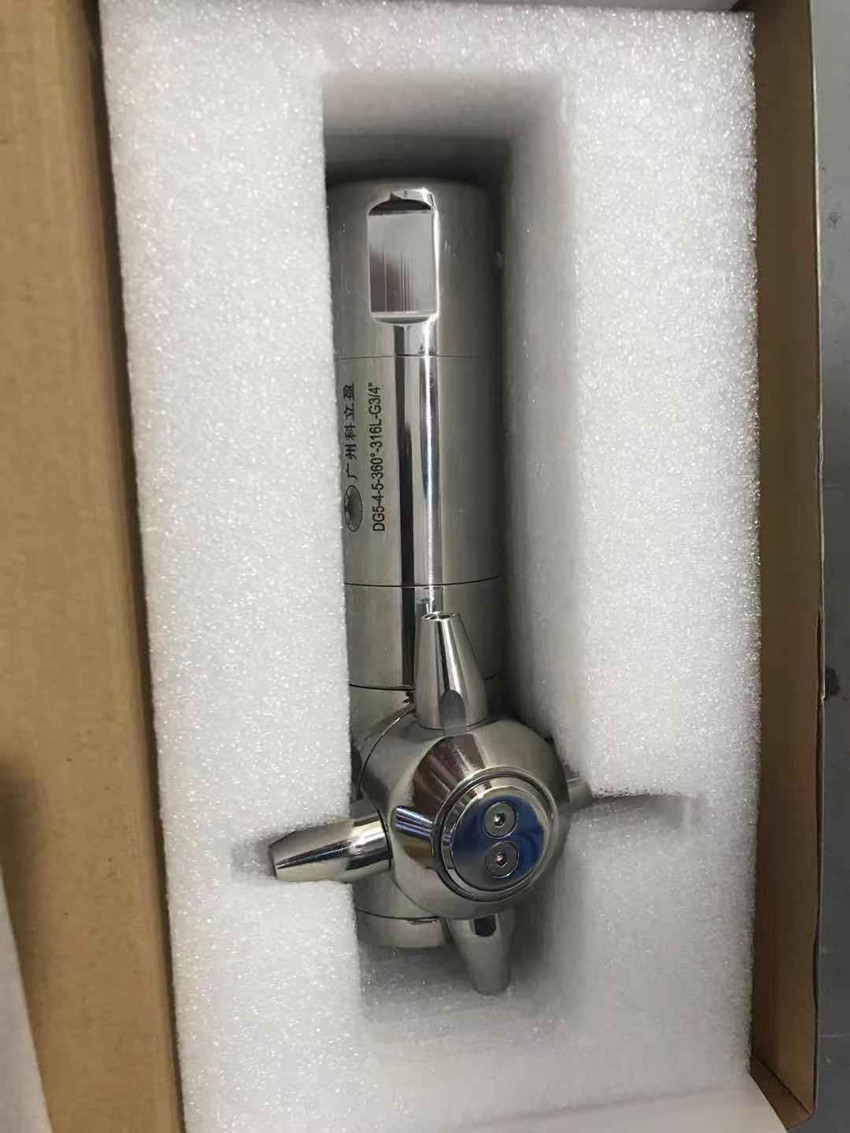

Packing of tank cleaning nozzle:
