DG5 360 degree routed tank cleaning nozzle

Model: 360 degree routed tank cleaning nozzle

Material:316L SS

Max. tank diameter:5m

Max. pressure: 30 bar

Cleaning cycle time: 2-6 minutes

Min. tank openings: 98mm

Operating pressure:5-20Bar

Temperature range:90°

Installation: Operation in every direction is possible

Design feature:

● Very high cleaning performance already at low pressure

● Driven and lubricated by the cleaning fluid

● 360 degree Systematically cleans the entire tank interior

● Compact, durable and easy to maintain

● Optimized structural design makes water jet with greater impact

● Excellent seal design, only 3% leakage of water

● Designed with a separate gearbox, uneasy to get clogging

● Handle the most serious tank cleaning applications.

● Provides a powerful and thorough 360-degree cleaning pattern, 100% thoroughly clean

● Ideal cleaning results with short cleaning cycle times

●Available in different kind of nozzle size




Programmed rotation machines:

The cleaning fluid drives via the turbine an internal gear reducer that keeps the sprayer turning in two planes.
In the course of spraying cycle, the jets sweep the entire inside surface of the tank according to the set trajectory.

Application:

DG5 rotating tank cleaning nozzle are suitable for small tanks &totes, such as fuel ethanol, beer, chemical, industrial fermentation industry

and the need for high impact cleaning occasions.

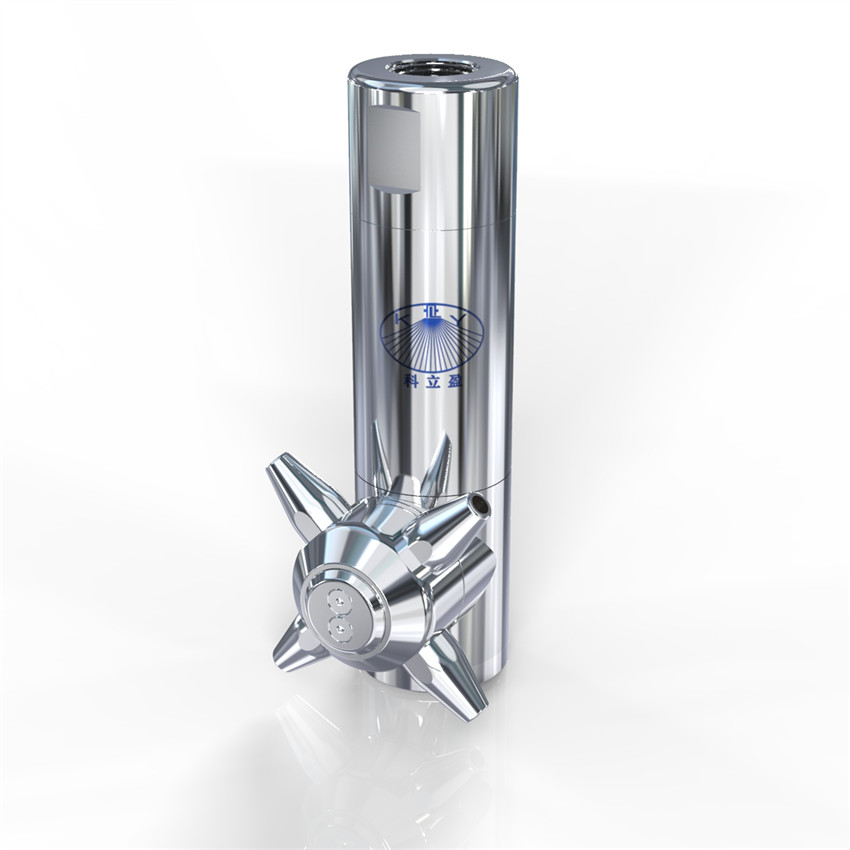

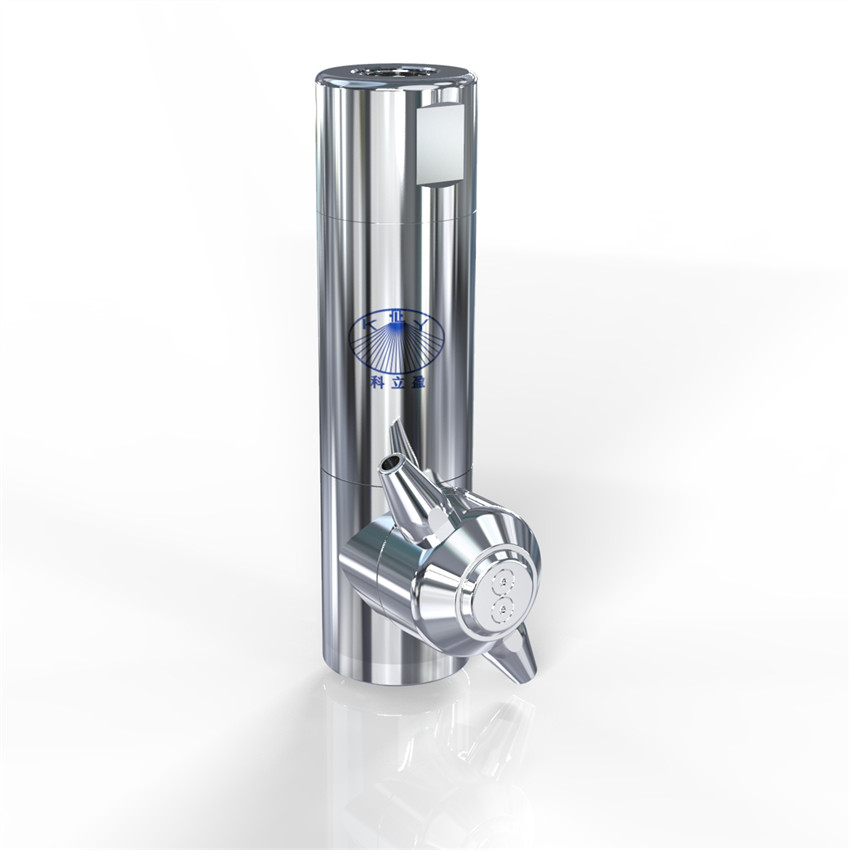

Product Photos:

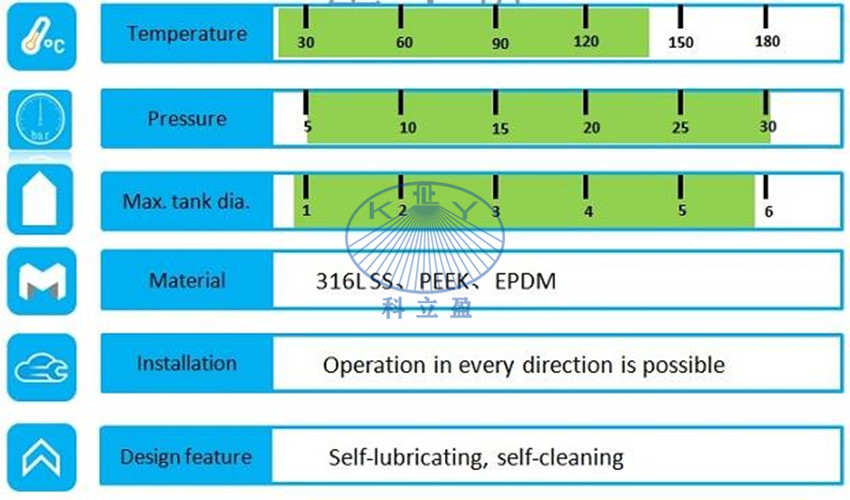

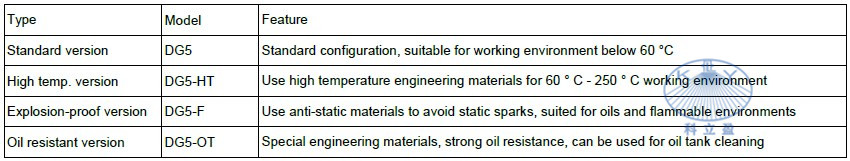

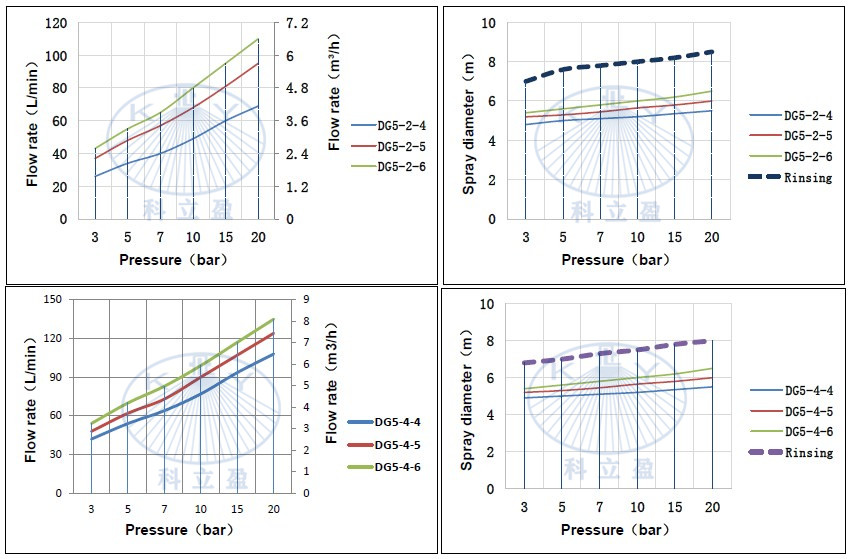

Performance data:

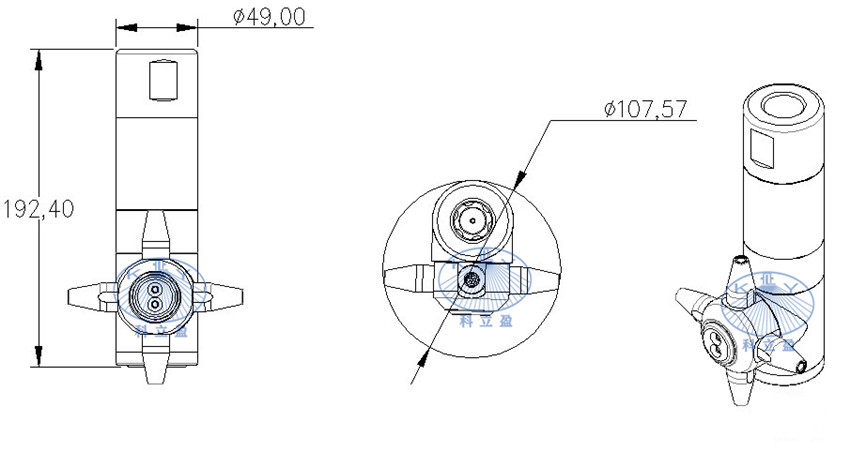

Dimensions of DG5 tank cleaning nozzle:

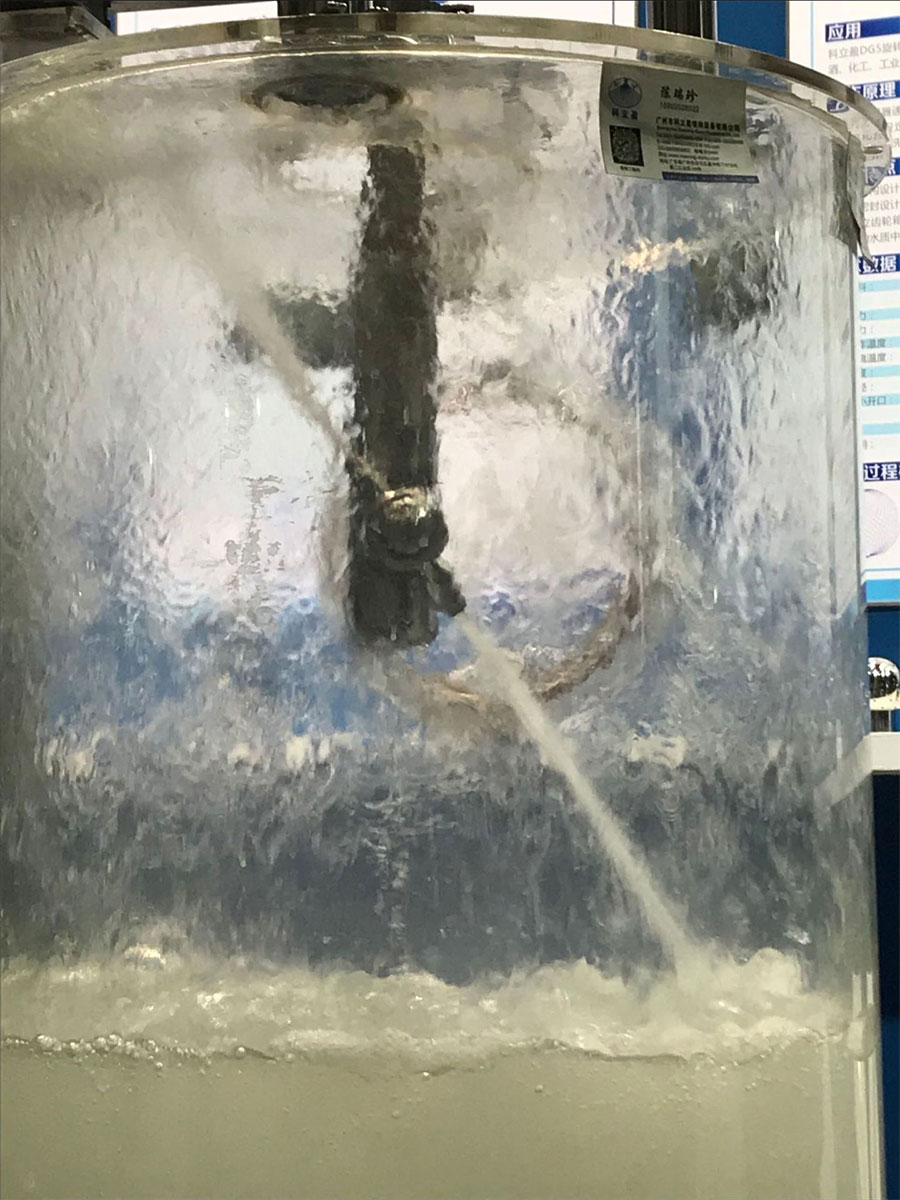

Cleaning process:

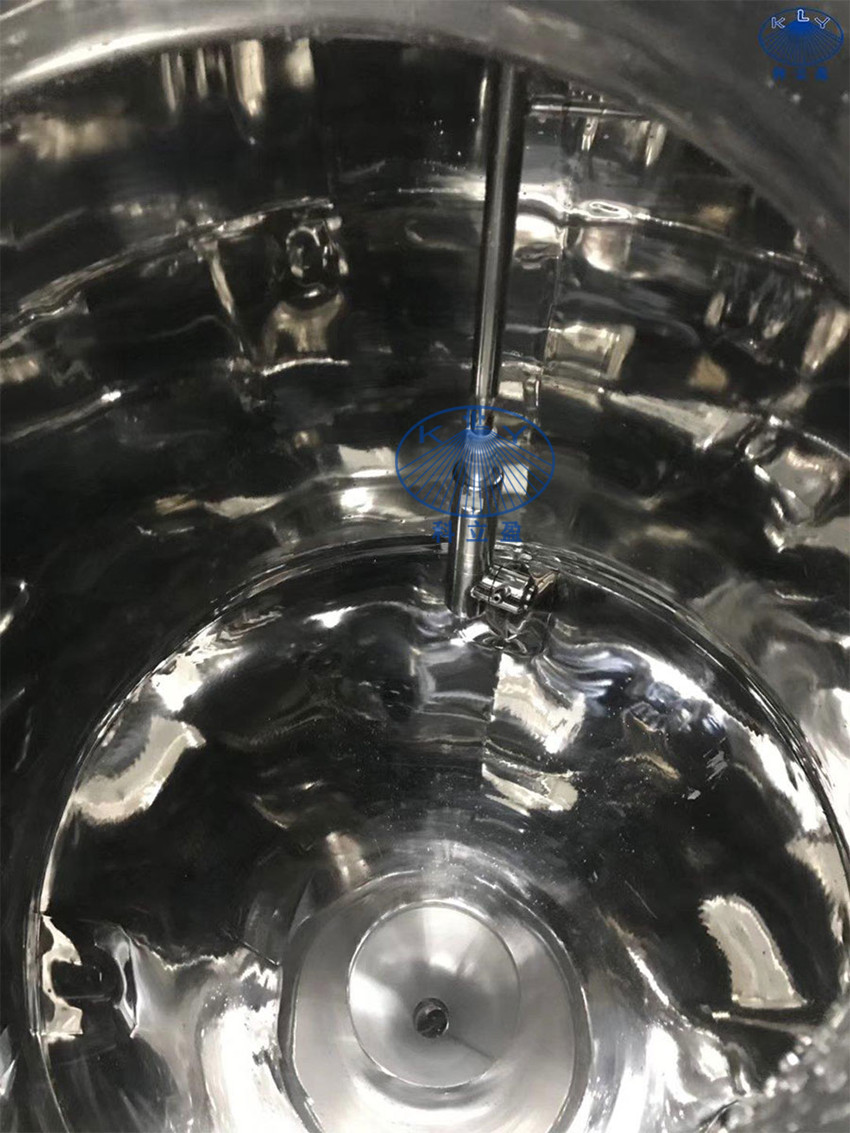

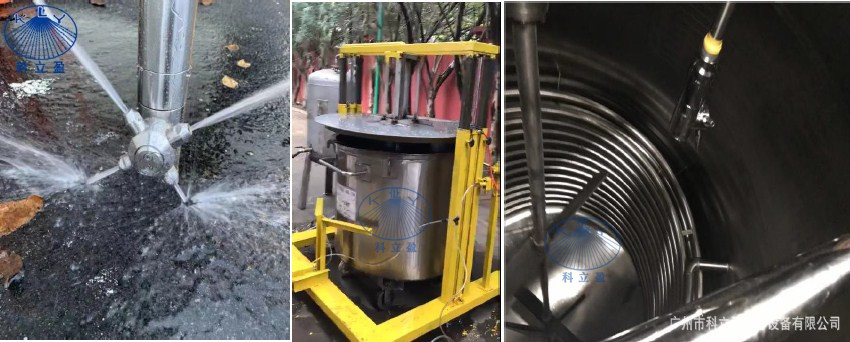

Application of DG5 3D rotary tank cleaning nozzle:
