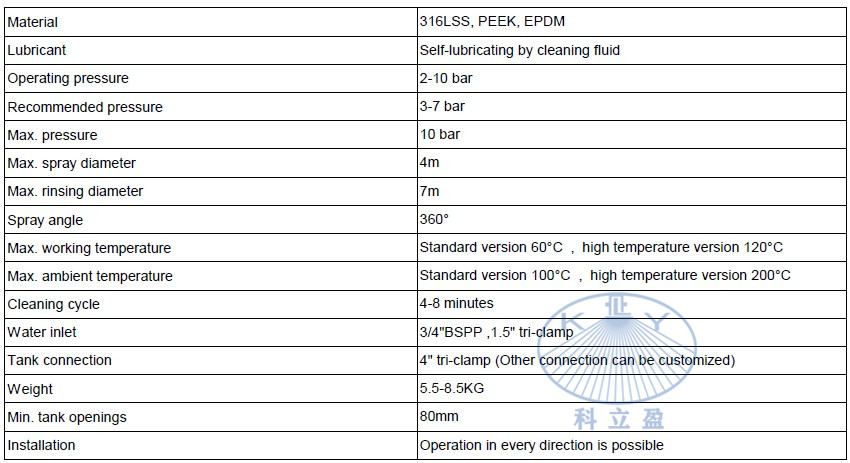

Model | TG rotary jet head |
Material | 316L SS |
Max. tank diameter | 4 m |
Operating pressure | 3-7 Bar |
Tempreture range | 2-80° |
Installation | Operation in every direction is possible |
Application | Cleaning and rinsing of small to medium sized tanks i.e. chemical industry,drink and food industry. |

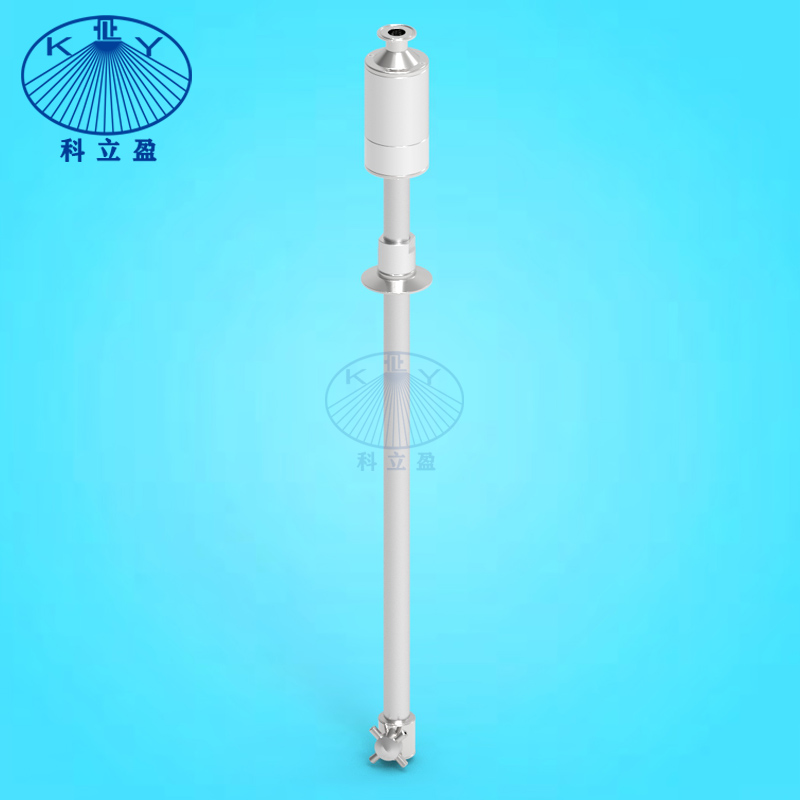

KLY TG series rotary jet head drives impeller through cleaning liquid to drive internal deceleration mechanism to run at low speed, through the transmission mechanism, operate according to the set trajectory to realize revolution and rotation, so as to realize 360° coverage.
KLY TG series rotary jet head is suitable for three-dimensional cleaning of small to medium tanks and containers used in processing, storage and transportation, such as pharmaceutical, wine, food, dairy and solvent-based cleaning industries.
Design feature:
Sanitary design;
Optimized structure;
Gears are made of PEEK;
Self-cleaning and self-lubricating;
Strong impact; Low consumption of liquid.
