DG8 180 Degree tank cleaning nozzle
| Model | DG8 high pressure rotating tank cleaning nozzle |
| Material | 316L SS |
| Lubrication | Food grade lubricants |
| Max. tank diameter | 8 m |
| Max. rinsing diameter | 12 m |
| Operating pressure | 5-50 Bar |
| Max. pressure | 70 bar |
| Tempreture range | 2-80° |
| Connection | 1-1/4" NPT, 1-1/4" BSPP female thread |
| Installation | Operation in every direction is possible |
| Cleaning cycle time | 6-12 minutes |
| Weight | 3.3 KG |
| Application | Cleaning and rinsing of large tanks i.e. chemical industry,drink and food industry. |
Working principle
DG8 rotary jet head revolves 360° in both horizontal and vertical planes. Synchronized solid jets provide a tight and thorough scouring pattern covering all interior tank surfaces in one complete cycle.
Design feature:
Systematically cleans the entire tank interior(360°)
Robust, low-maintenance stainless steel construction
100% thoroughly clean,every time
Optimized structural design makes water jet with greater impact
Excellent seal design, only 3% leakage of water
Designed with a separate gearbox,uneasy to get clogging
Rotating shaft and other parts are made of tungsten carbide, which has a longer life
Independent gearbox is designed with separate sealing, cleaning fluid does not pass through gearbox for longer service life
Application:
DG8 rotary jet heads are suitable for three-dimension cleaning of small to medium sized tanks, spray dryer, fracturing mud tanks, fermentation tanks, vessel, and storage tanks, such as tank cleaning stations, beer, pharmaceuticals, chemical, industrial fermentation industry, and many others.

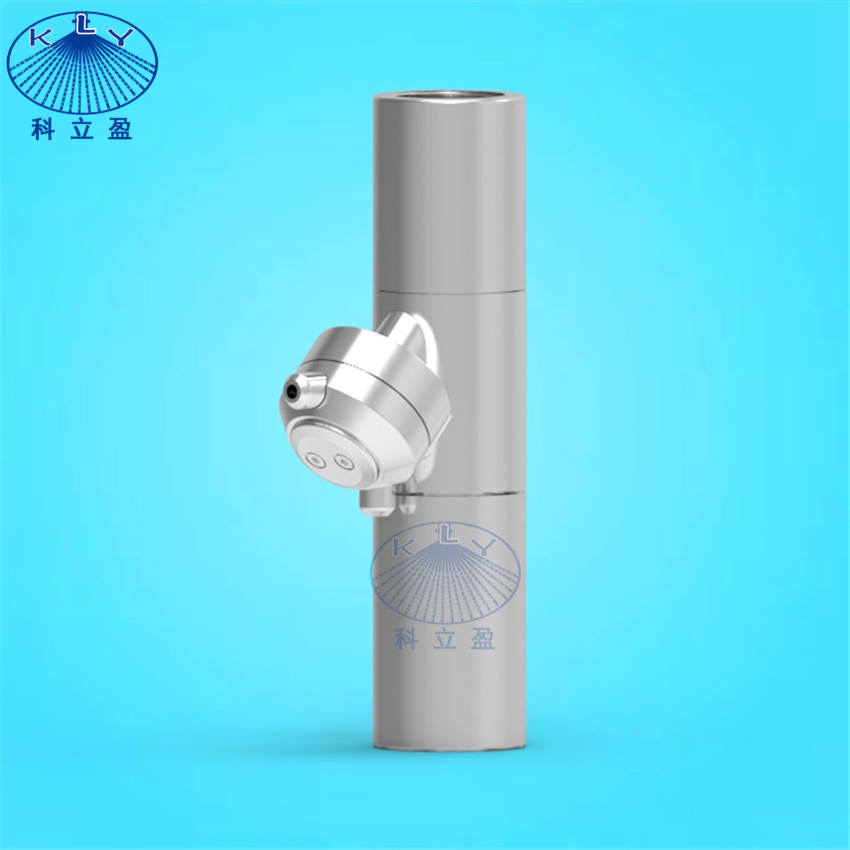

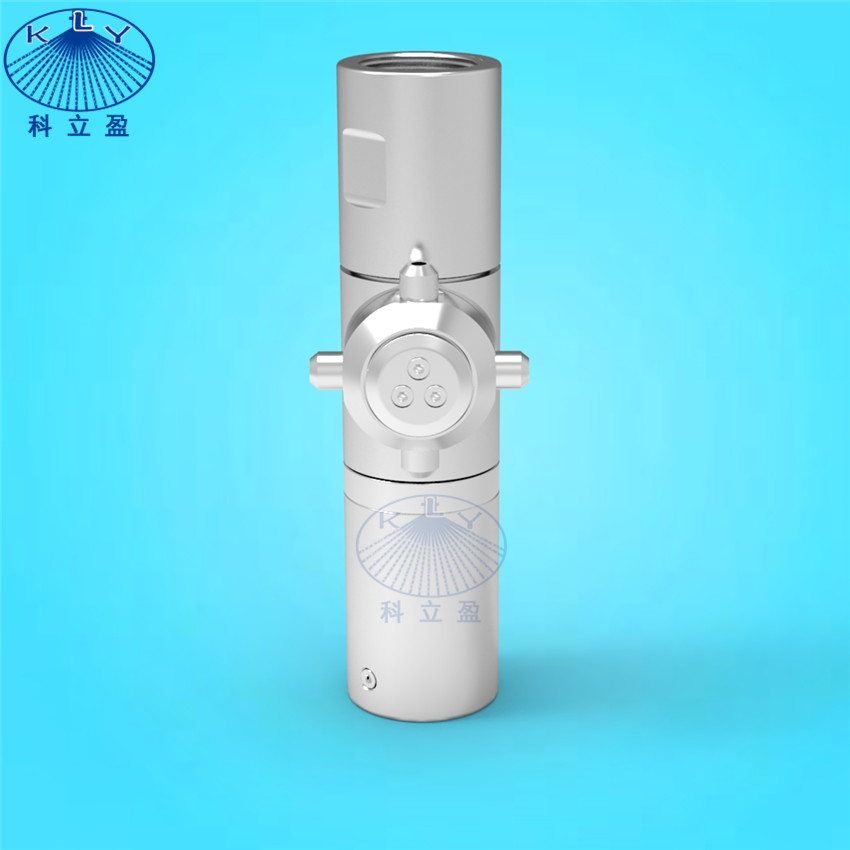

Product Photos:

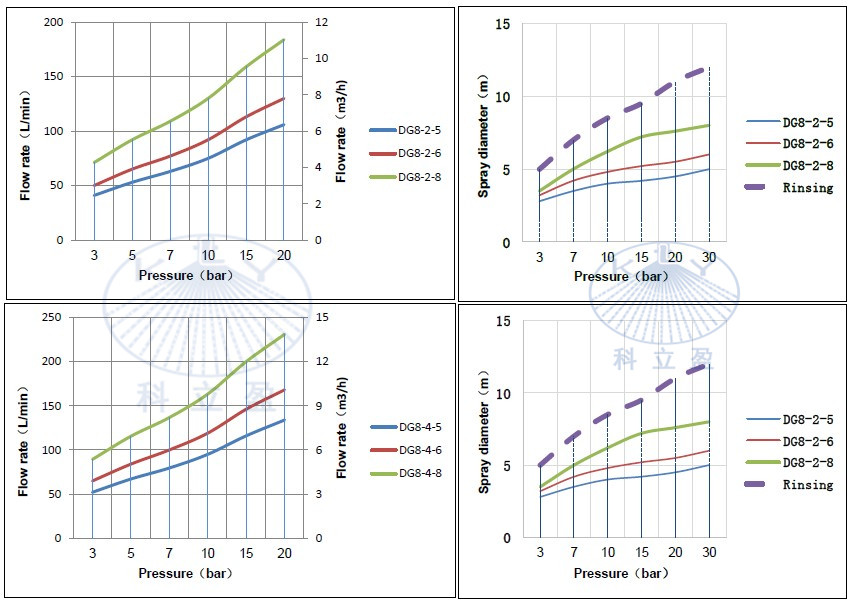

Performance data:

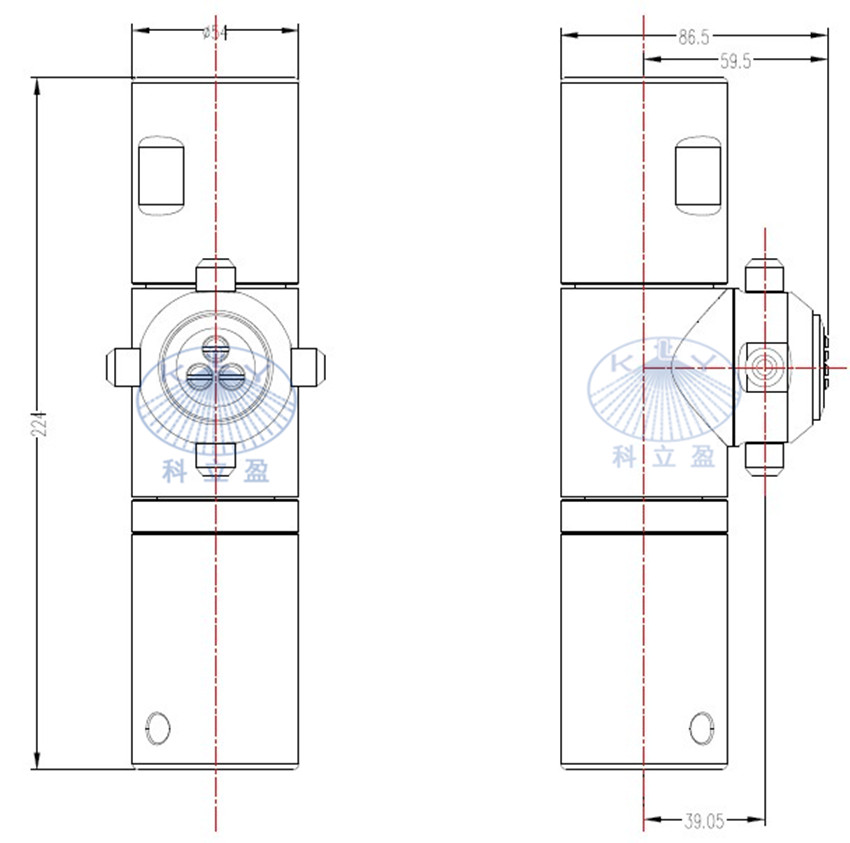

Dimensions of DG8 rotary jet head:

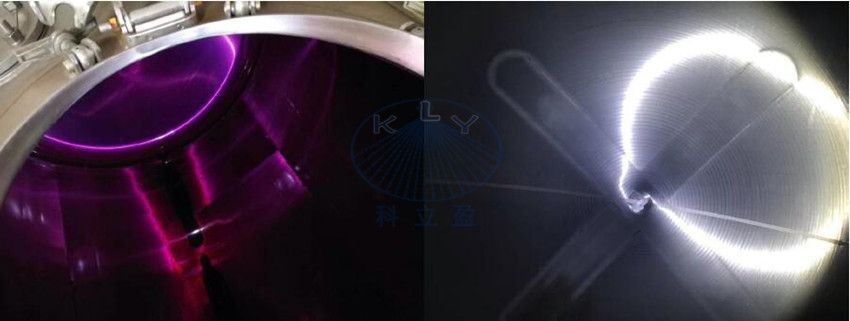

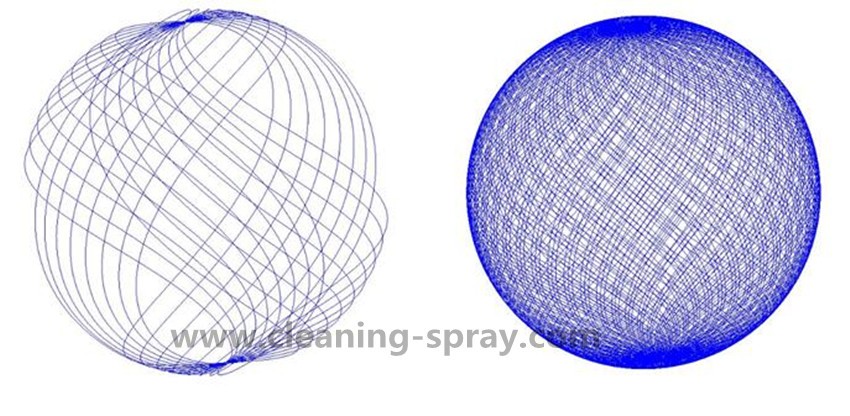

Cleaning process:

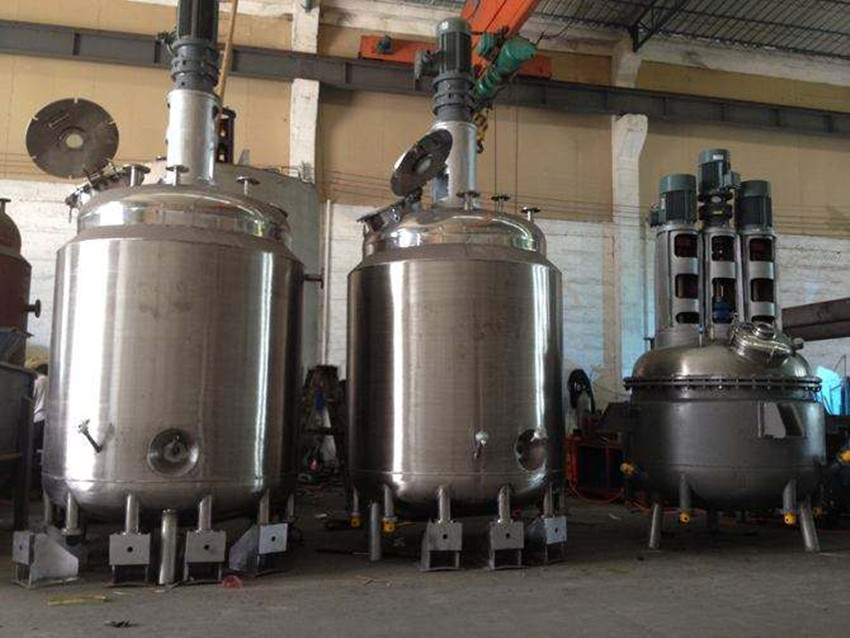

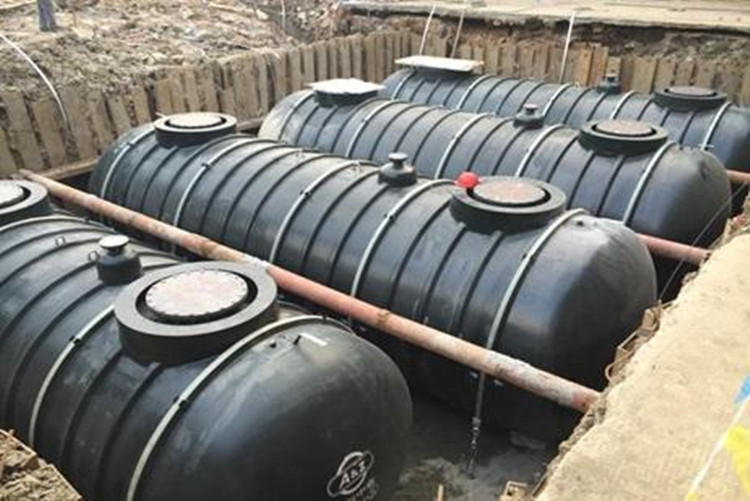

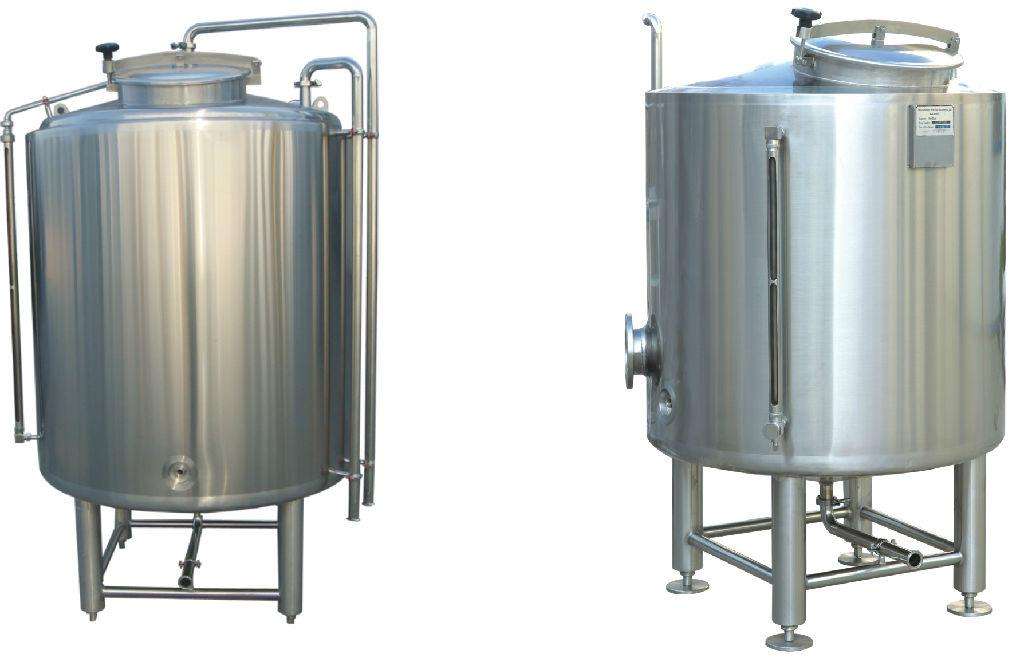

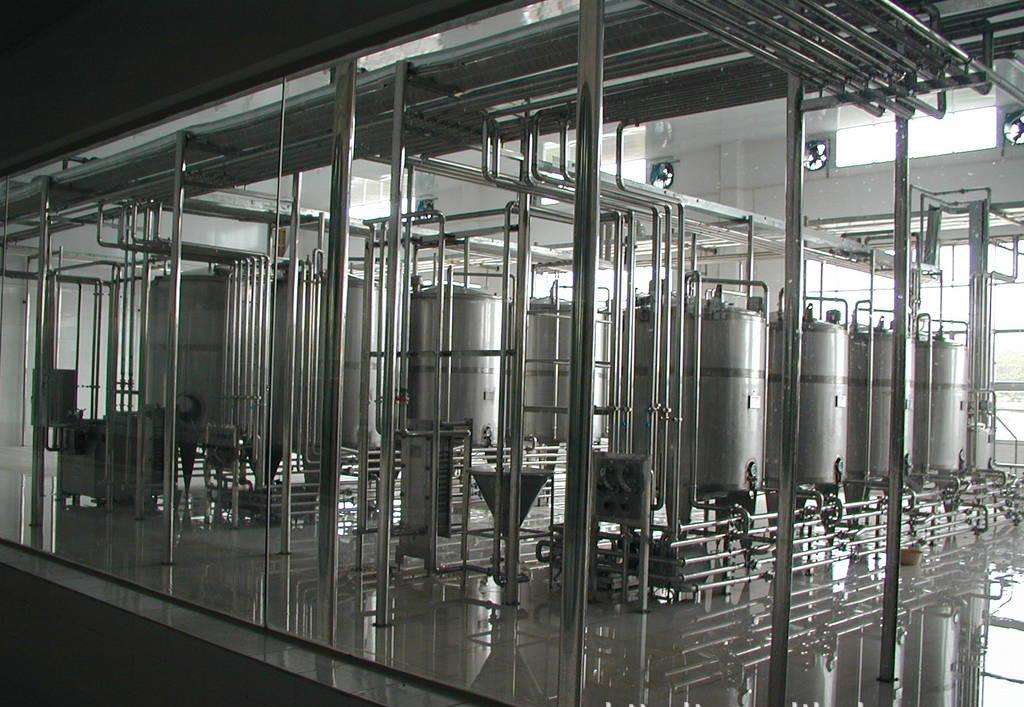

Application of DG8 3D rotary tank cleaning nozzle:

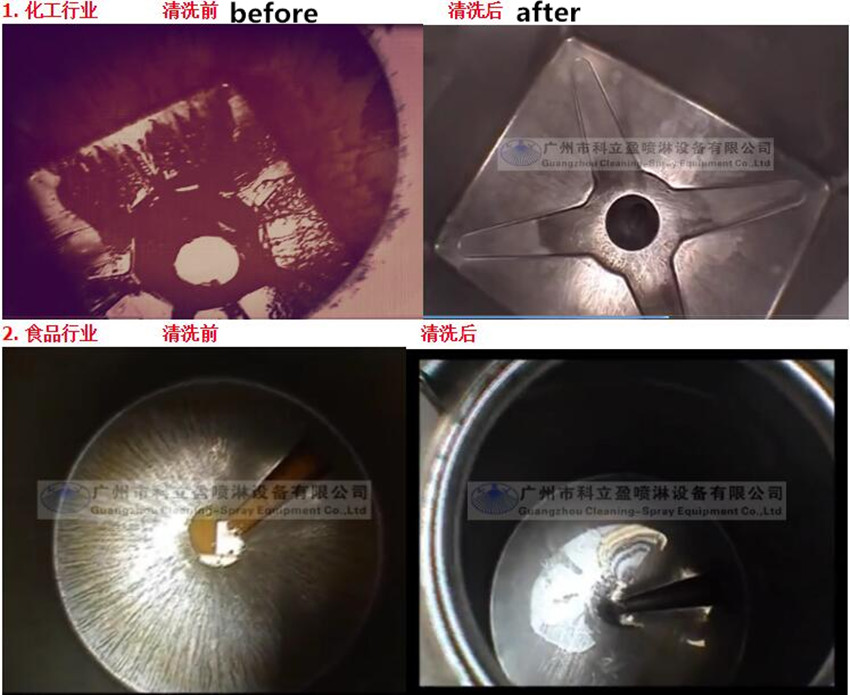

Cleaning effect:
