ST-450 Retractable 3D Rotary Tank Washer

Technical information
Recommended operating pressure: 5-20 bar (72.5-290 PSI)
Temperature: 32° to 195°F (0° to 95°C)
Flow Rate: 30-136 L/min (7.9-36 GPM）
Max. spray diameter: 5m
Cleaning cycle time: 4-6 Minutes

Weight:  18 KG
Impact: 12 lbs (5.5 kg) at 10′(3m)

Overall Dimensions
Height: 8.38″ (231 mm)
Body Diameter: 1.92″ (49 mm)
Weight: 5.06 lb (2.6 kg)

Design feature:

● Very high cleaning performance already at low pressure

● Bearings in the rotating tee and nozzle housings are self-lubricating

● Robust, low-maintenance stainless steel construction

● Optimized structural design makes water jet with greater impact

● Excellent seal design, only 3% leakage of water

● Designed with a separate gearbox, uneasy to get clogging

Application:

KLY STP-450 series retractable rotary cleaner is suitable for  pharmaceutical, food and beverage, chemical,marine and other industries. It is especially suitable for the occasions where the nozzles cannot  be placed in the cleaning object,as well as the cleaning of corners and pipes. Typical applications: movable bulkhead systems,CIP cleaning of pipes of drying and powder conveying equipment, cyclones,fluidized bed, granulator and other equipments.

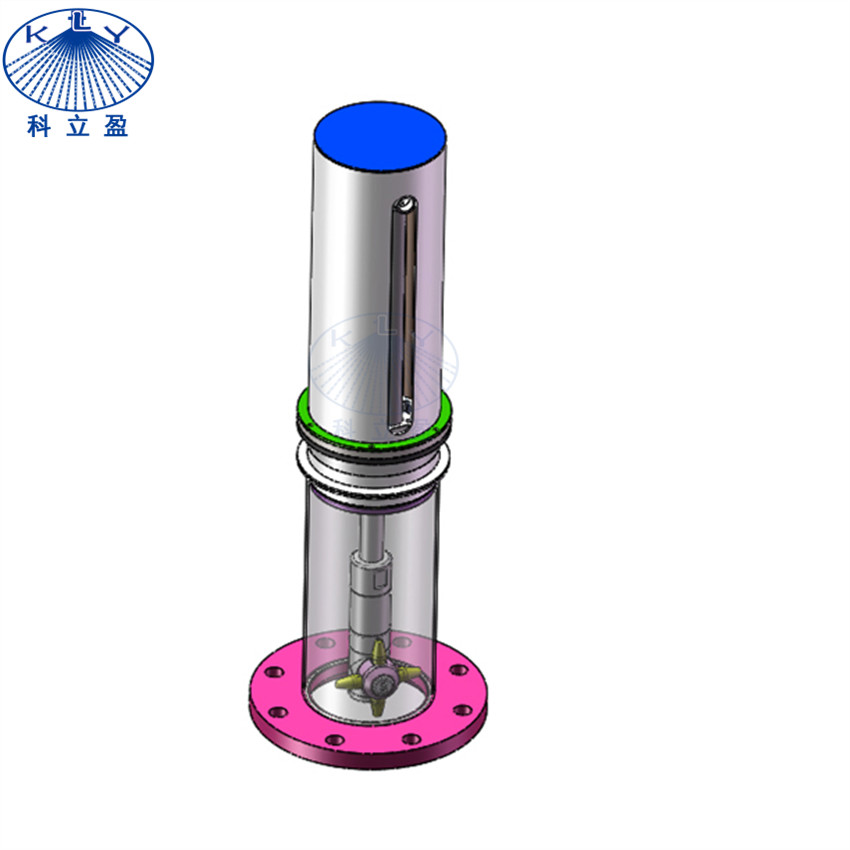

Product Photos:

Performance data:

Dimensions of DG5 tank cleaning nozzle:

Cleaning process:

Application of DG5 3D rotary tank cleaning nozzle:

Packing of tank cleaning nozzle:
