DG20 tank cleaning machine for the largest tanks and most difficult applications, this gear driven tank cleaning machine is our most powerful.
Marine Tank Cleaning Machines
Model | Marine Tank Cleaning Machines |
Material | 316L SS |
Max. Tank Diameter | 20m |
Operating Pressure | 5-20Bar |
Temperature Range | 95° |
Installation | Operation In Every Direction Is Possible |
Application | Cleaning And Rinsing Of Large Tanks I.E. Chemical Industry, Drink And Food Industry. |

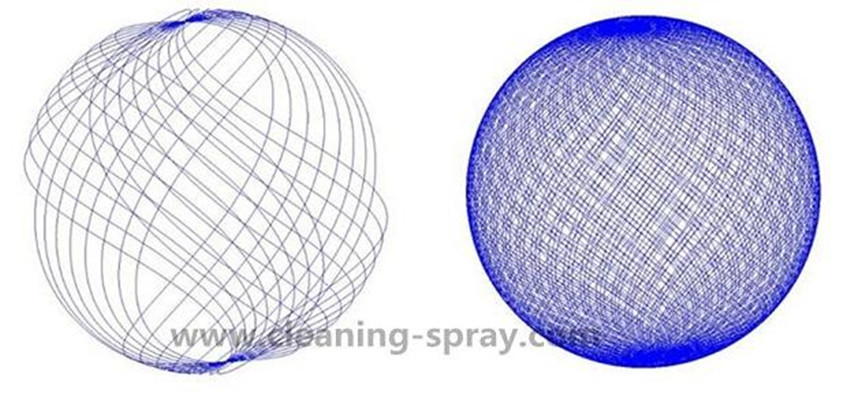

Use 360 ° coverage design
When the tank washer is working, the axial and radial directions are simultaneously rotated according to the set trajectory, and a full 360 ° cleaning without dead angle is truly realized.
The gear rotates according to the pre-designed trajectory and rotates in the orbit to drive the nozzle to realize automatic cleaning
Achieve 360 ° no dead angle cleaning
2. Fluid- driven structure
The cleaning liquid drives the turbine to rotate, which is driven by the turbine, the internal gear reduction mechanism, and the gear mechanism finally drives the tank washer to rotate, achieving axial and radial rotation.
3.Self-lubricating and self-cleaning design
The tank washer can be used to clean itself during the cleaning process. During the cleaning process, self-lubrication is performed by the cleaning liquid.
4.Sealing performance
It adopts advanced dynamic sealing technology, and the leak point is sealed by imported rotary seal, which reduces the leakage amount, reduces the pressure loss, saves the cleaning liquid, and generates a larger impact water flow.
As shown in the figure:
With small leakage, corrosion resistance, high pressure resistance, long service life, etc.
5. Operational stability
The reduction mechanism uses a multi-stage planetary gear reduction mechanism. Compared with other transmission methods, the transmission is more stable, can withstand higher working pressure, and has a longer service life. As shown below:
6.Higher impact
Due to the use of dynamic sealing technology, the small amount of liquid leakage means that the pressure loss is small, and a larger impact force is obtained at the same working pressure.
With the double nozzle design, the water flow from the tank washer is divided into 2 streams, which has a greater impact than 4 nozzles divided into 4 streams, a
nd the liquid consumption is smaller.
In addition, the nozzle adopts a unique steady flow design. Installing a flow stabilizer at the nozzle can make the jet water flow more concentrated, the impact force
is greater, and the cleaning is more thorough. Get a more concentrated water jet for powerful mechanical flushing
7.Anti-blocking
Due to the independent gear box design and the use of dynamic sealing technology, it is difficult for foreign particles in the external cleaning liquid to enter the gear
box, thereby protecting the gears, preventing clogging, and adapting to work in poor water quality. Can work in poor water quality, and will not block or jam when
running.
8.Installation orientation requirements
The tank washer is mainly driven by the medium to drive the turbine to work, so the installation direction will not affect the use effect, and it can be installed and used
at any angle.
Marine rotary tank cleaner Photos:

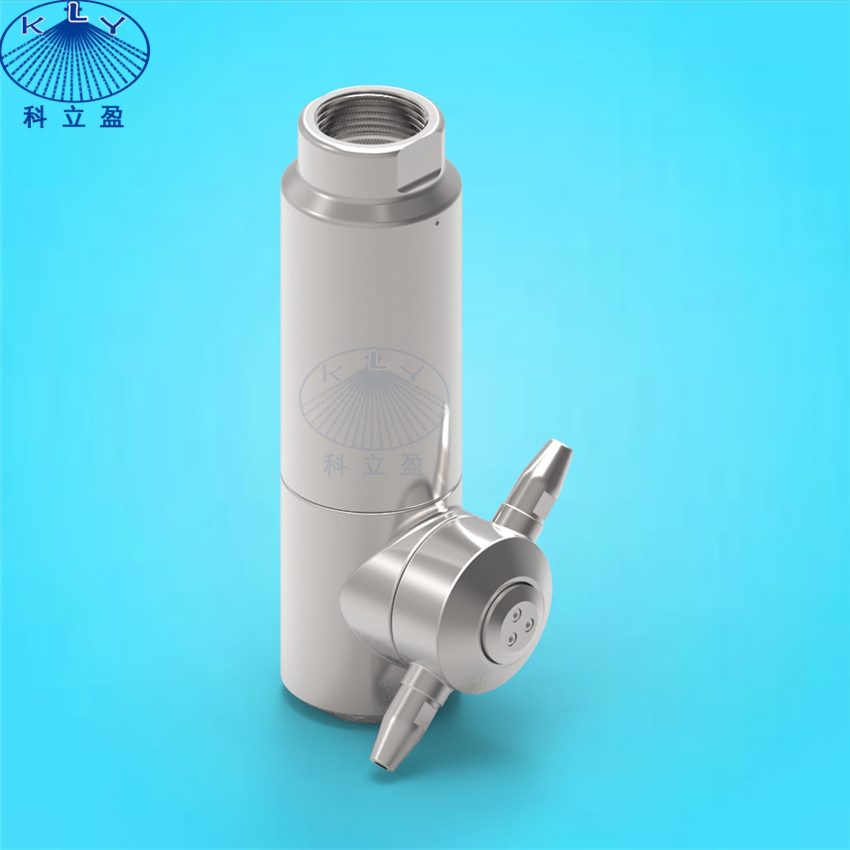

2 nozzles version:

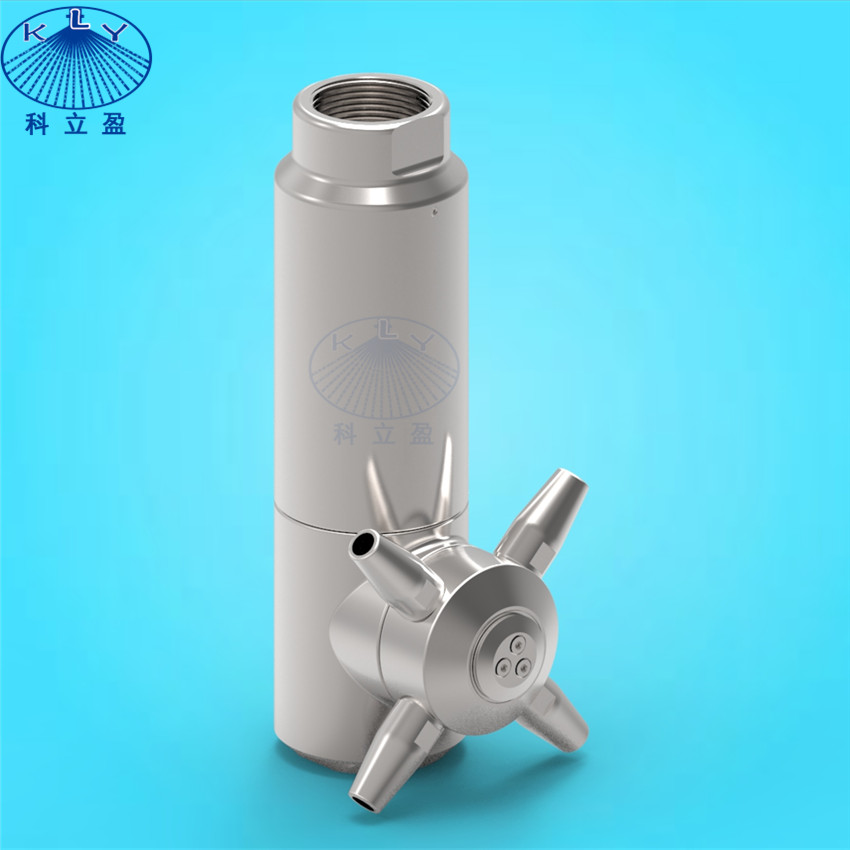

4 nozzles version:

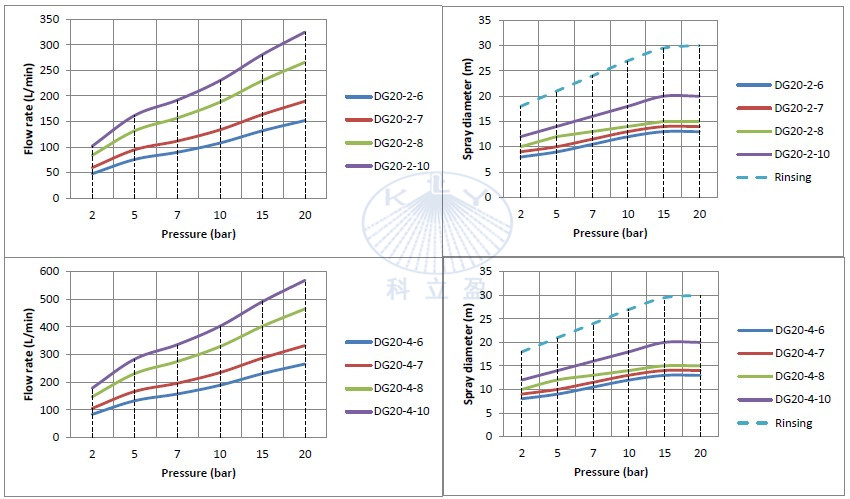

Obrital tank cleaner Performance data:

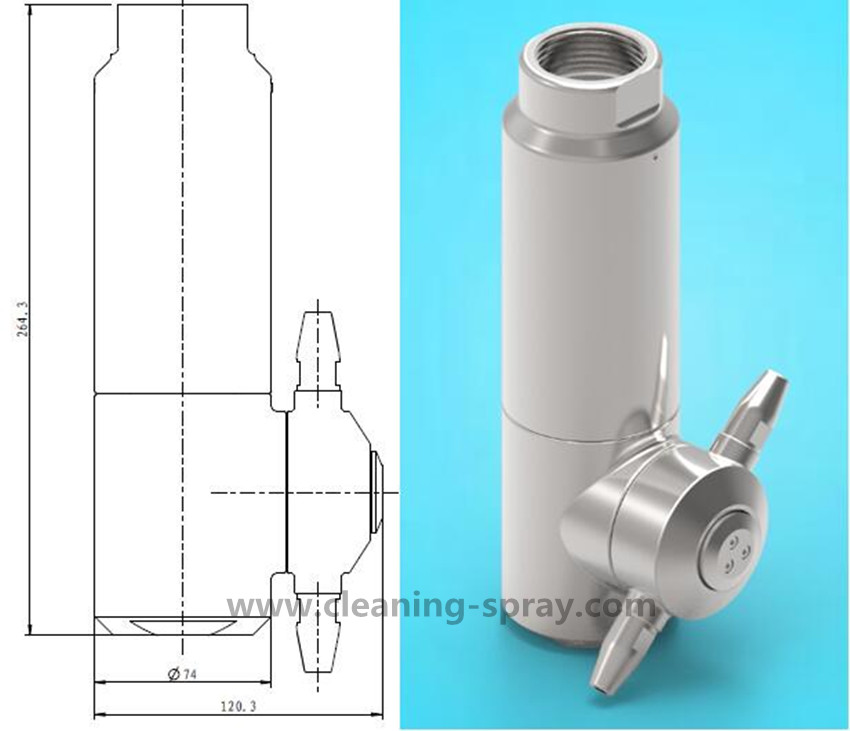

Dimensions:
Cleaning process:

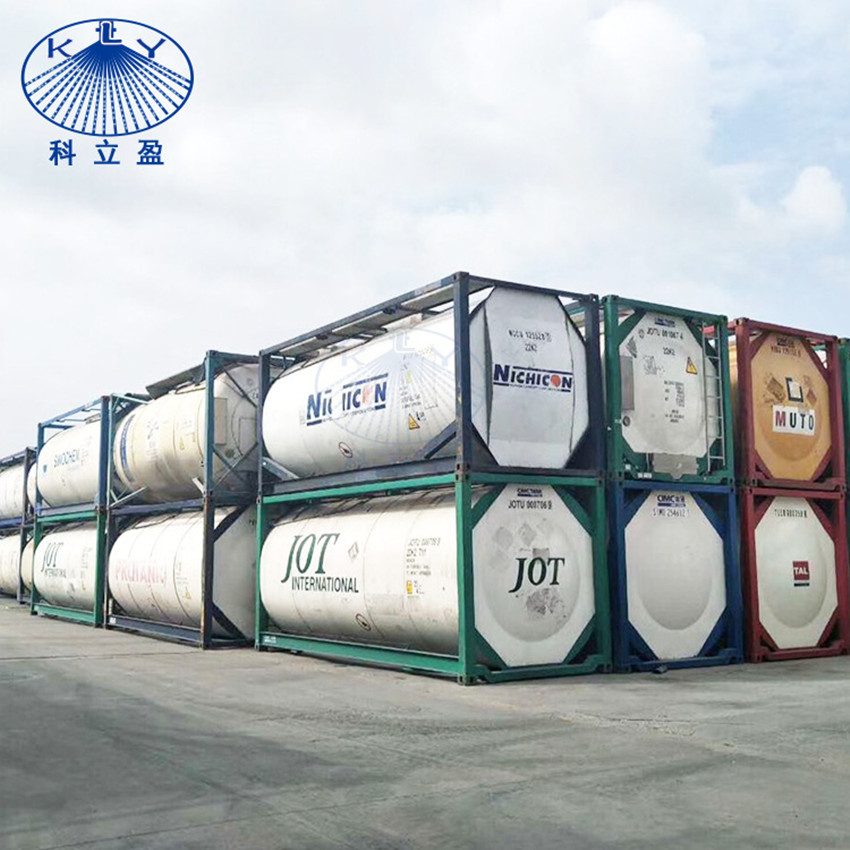

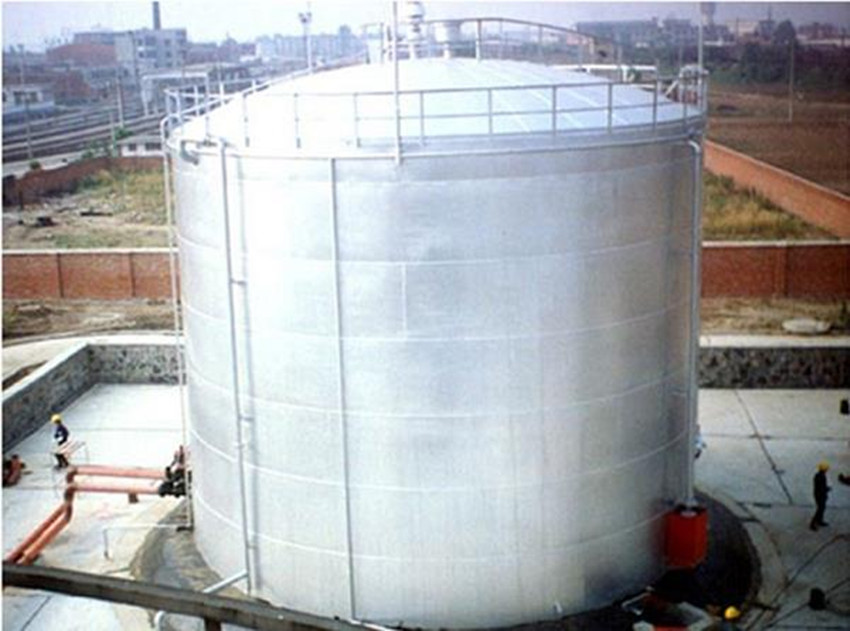

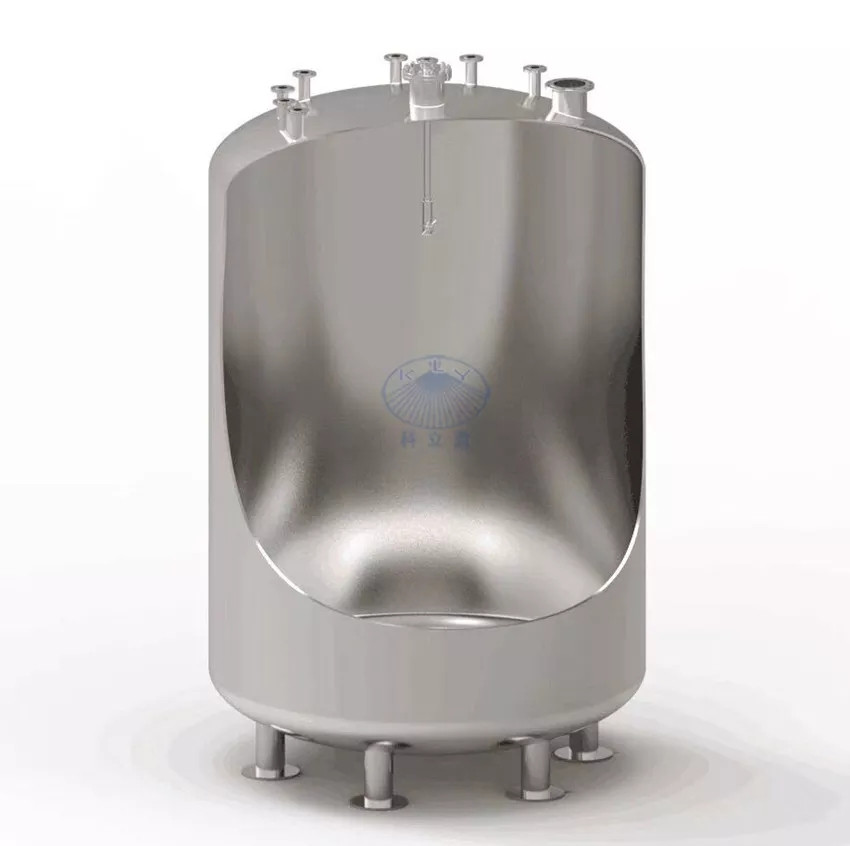

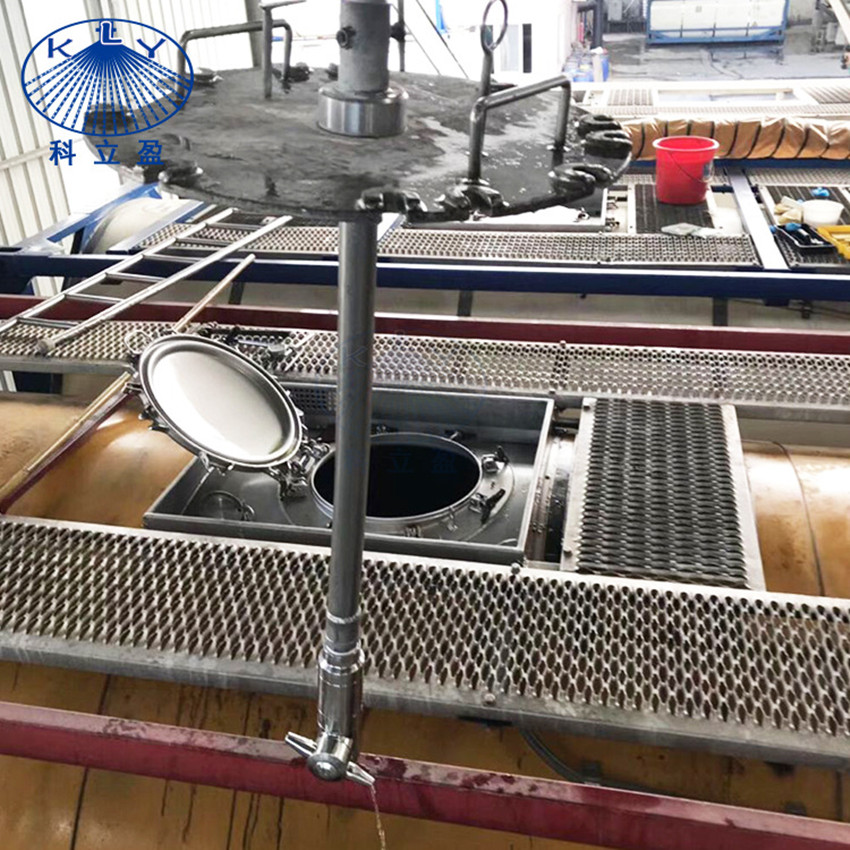

Application of DG20 3D rotary tank cleaning nozzle:

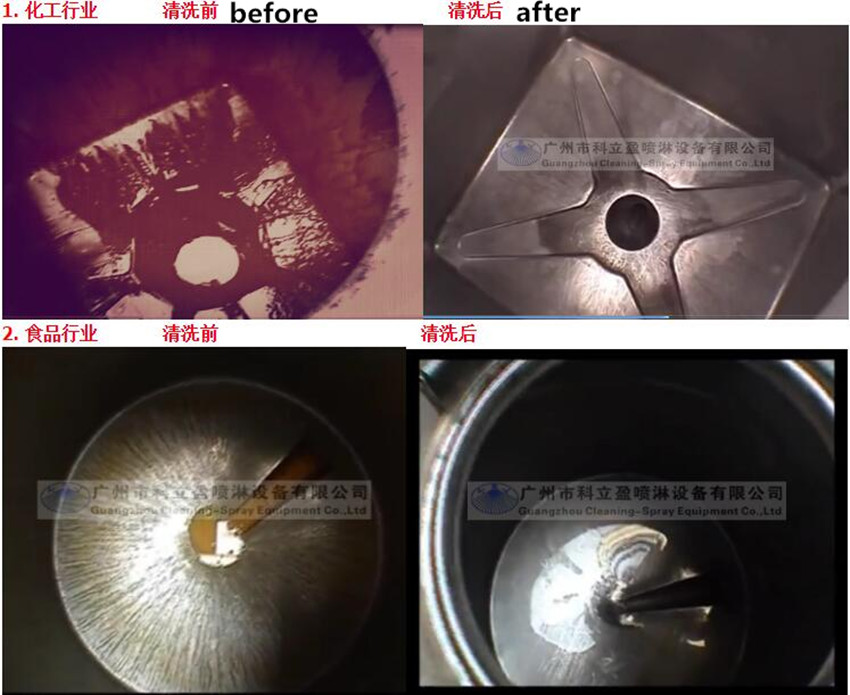

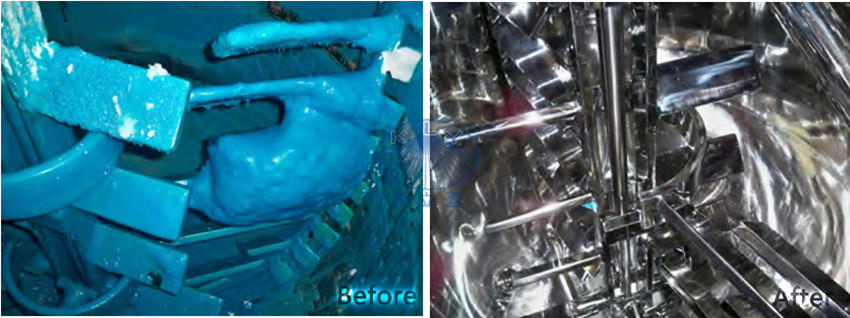

Cleaning effect:
