3D Rotating Jet Head, Fluid-driven Tank Cleaning Nozzle
DG15 3D rotary jet head for medium to large tanks and most difficult applications. An effective way to fully clean fishing boat, well boats,fuel storage tanks, ISO tank container, underground tank,gasoline storage tank .
3D rotating jet head for cleaning of ISO oil storage tank
Model | DG15 3D Rotating Jet Head |
Material | 316L SS |
Max. Tank Diameter | 15m |
Operating Pressure | 3-20Bar |
Temperature Range | 2-80° |
Installation | Operation In Every Direction Is Possible |
Application | Cleaning And Rinsing Of Large Tanks I.E. Oil, Chemical Industry, Drink And Food Industry. |
DG15 3D rotary jet head for medium to large tanks and most difficult applications. An effective way to fully clean fuel storage tanks, ISO tank container.
● Very high cleaning performance already at low pressure
● Driven and lubricated by the cleaning fluid, requires no external power
● Systematically cleans the entire tank interior(360°)
● Robust, low-maintenance stainless steel construction
● 100% thoroughly clean, every time
● Optimized structural design makes water jet with greater impact
● Excellent seal design, only 0.5% leakage of water
● Designed with a separate gearbox, uneasy to get clogging
The standard machine configuration uses two or four nozzles to blast the tank walls and rinse all surfaces. In operation, the unit has to run for the cycle time between on type 6 and 12 min depending on type and pressure. This ensures full cleaning. For extremely difficult applications the cleaning time might have to be extend.
Application:
DG15 rotating tank cleaning nozzles are suitable for medium to large tanks, such as Oil, Dairy , Food, Pharmaceutical, Beer, Chemical, Fuel ethanol, industrial fermentation industries and many others.

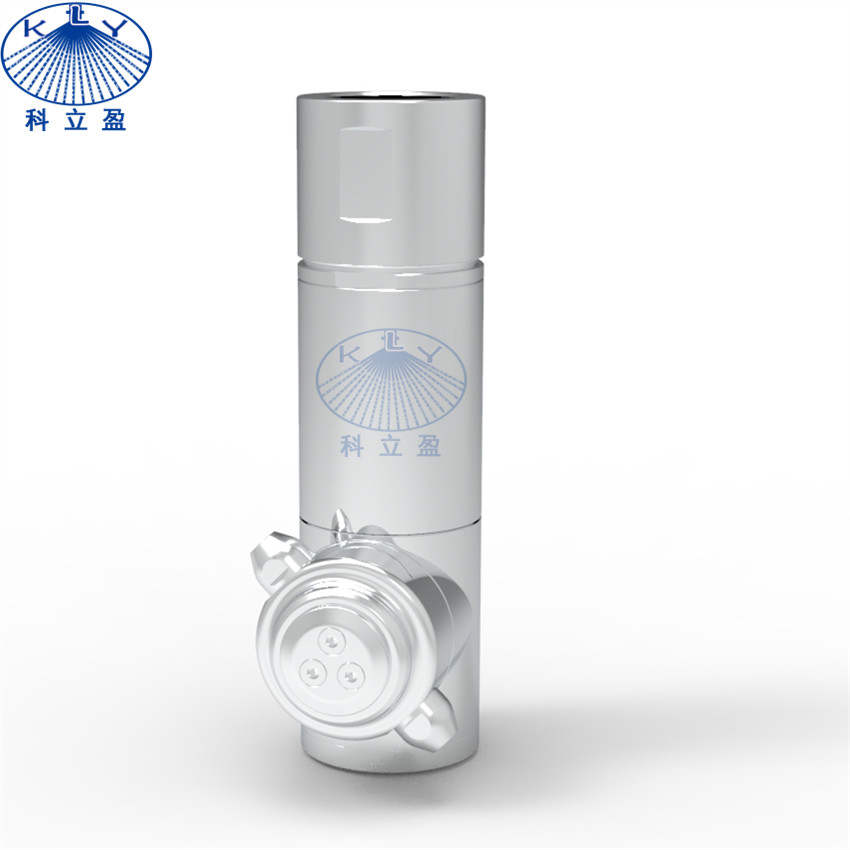

Product Photos:

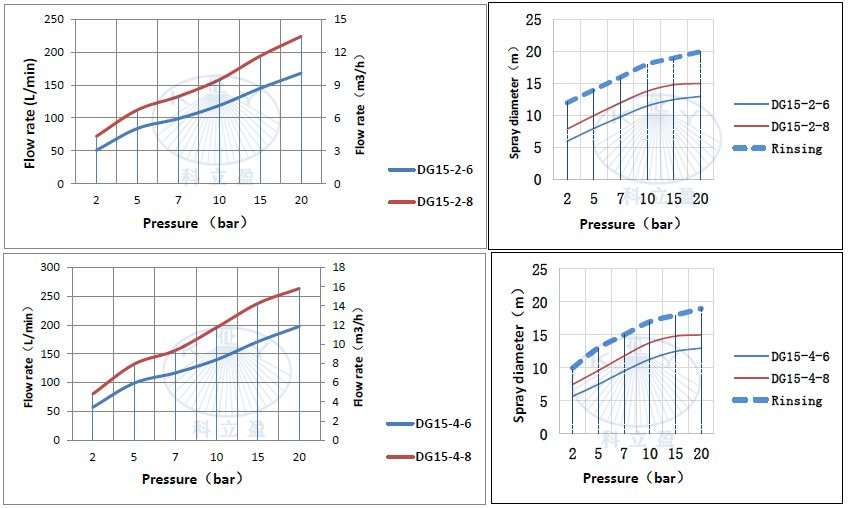

Performance data:

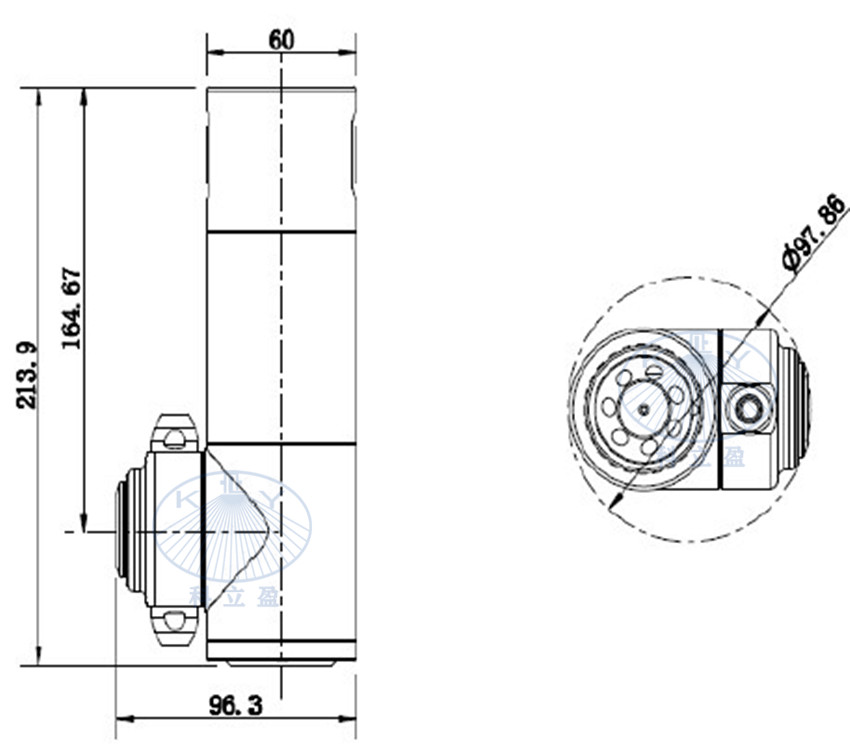

Dimensions of DG15 rotary jet head:

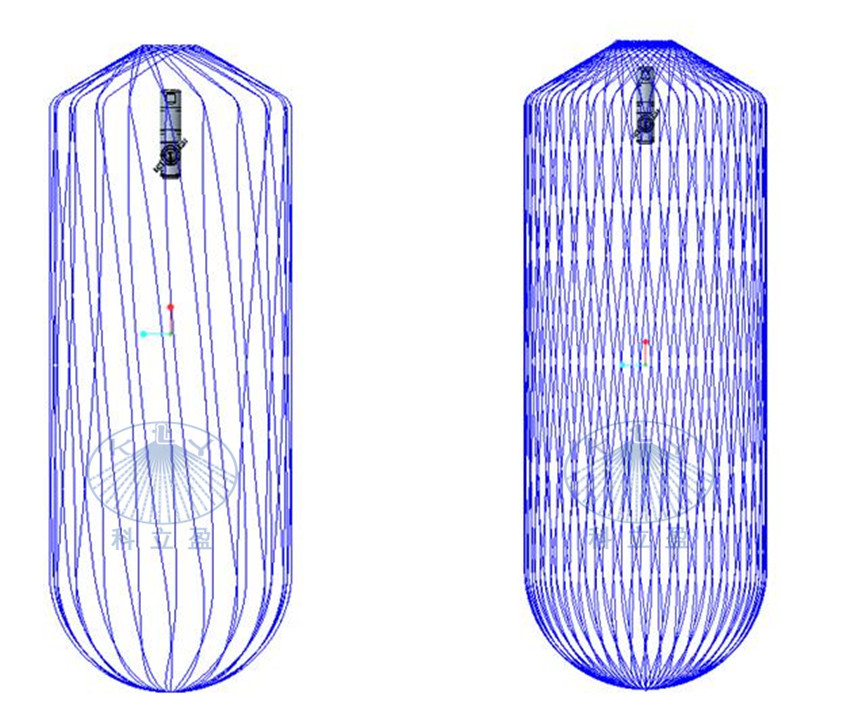

Cleaning process:

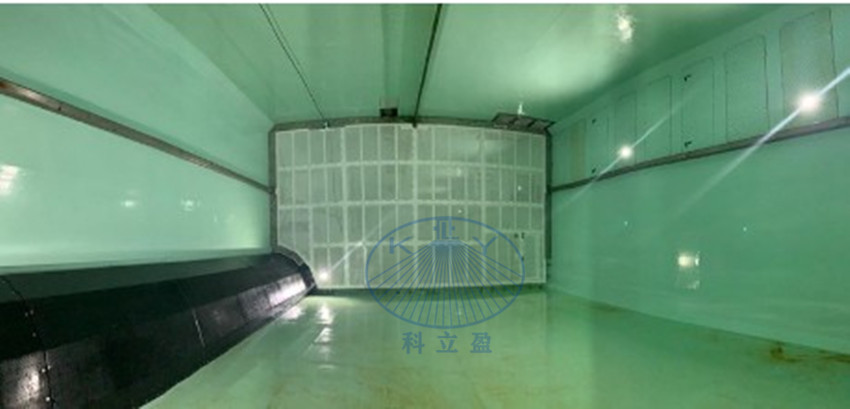

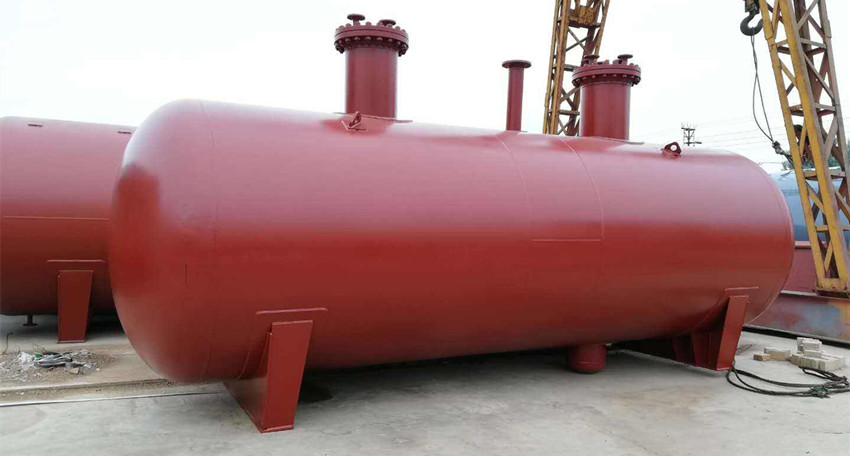

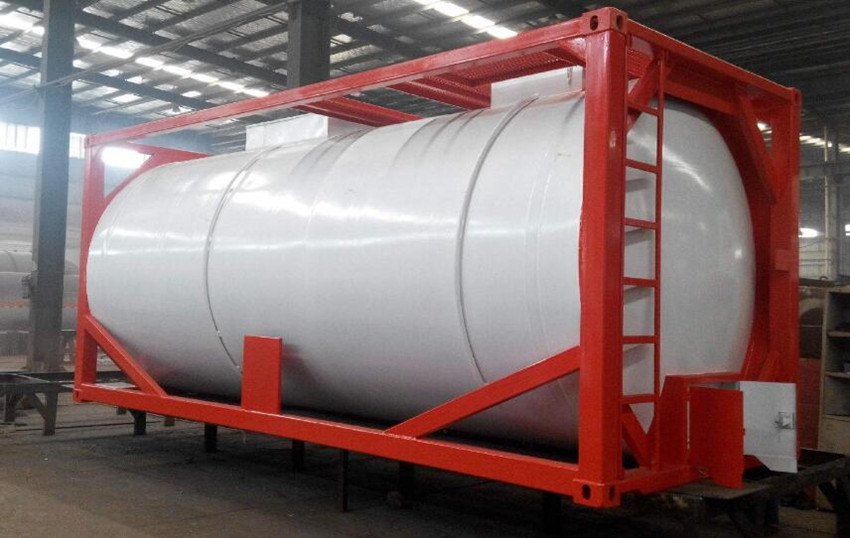

Application of DG15 3D rotary tank cleaning nozzle:

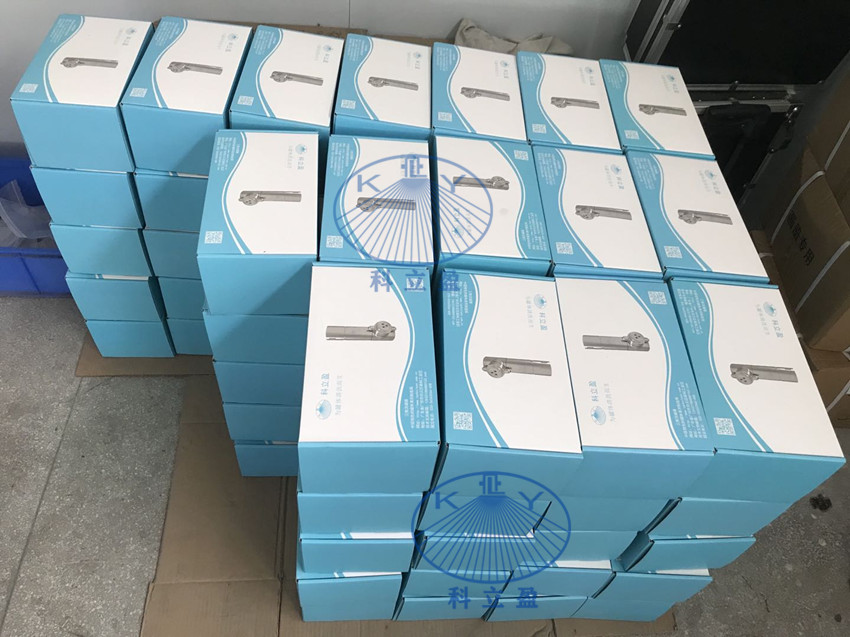

Packing of fluid-driven tank cleaning nozzles
