DG20 360 spray 3D rotary tank cleaning machine
Model | DG20 360 Spray 3D Rotary Tank Cleaning Machine |
Material | 316L SS |
Max. Tank Diameter | 20m |
Operating Pressure | 5-20Bar |
Temperature Range | 2-80° |
Installation | Operation In Every Direction Is Possible |
Application | Cleaning And Rinsing Of Large Tanks I.E. Chemical Industry, Drink And Food Industry. |
DG20 tank cleaning machine for the largest tanks and most difficult applications, this gear driven tank cleaning machine is our most powerful.
● Very high cleaning performance already at low pressure
● Driven and lubricated by the cleaning fluid
● Time saving, low consumption of cleaning fluid
● Systematically cleans the entire tank interior(360°)
● Robust, low-maintenance stainless steel construction
● 100% thoroughly clean, every time
● Optimized structural design makes water jet with greater impact
● Excellent seal design, only 3% leakage of water
● Designed with a separate gearbox, uneasy to get clogging
● self-cleaning, self-flushing, and self-lubricating, requiring no oil or grease in the gearbox
Programmed rotation machines:
The cleaning fluid drives via the turbine an internal gear reducer that keeps the sprayer turning in two planes.
In the course of spraying cycle, the jets sweep the entire inside surface of the tank according to the preprogrammed, model-specific pattern.
This takes a certain amount of time, but these models generate the highest jet pressures (= force of impact) and are therefore ideal for very large tanks and the toughest of cleaning tasks.
The standard machine configuration uses 2 nozzles to blast the tank walls and rinse all surfaces. In operation, the unit has to run for the cycle time between on type 8 and 12 min depending on type and pressure. This ensures full cleaning. For extremely difficult applications the cleaning time might have to be extend.
Application:
DG20 Storage Tank Cleaning Nozzles are suitable for medium to large tanks, such as Dairy , Food, Pharmaceutical, Beer, Chemical, Fuel ethanol, industrial fermentation industries and many others.

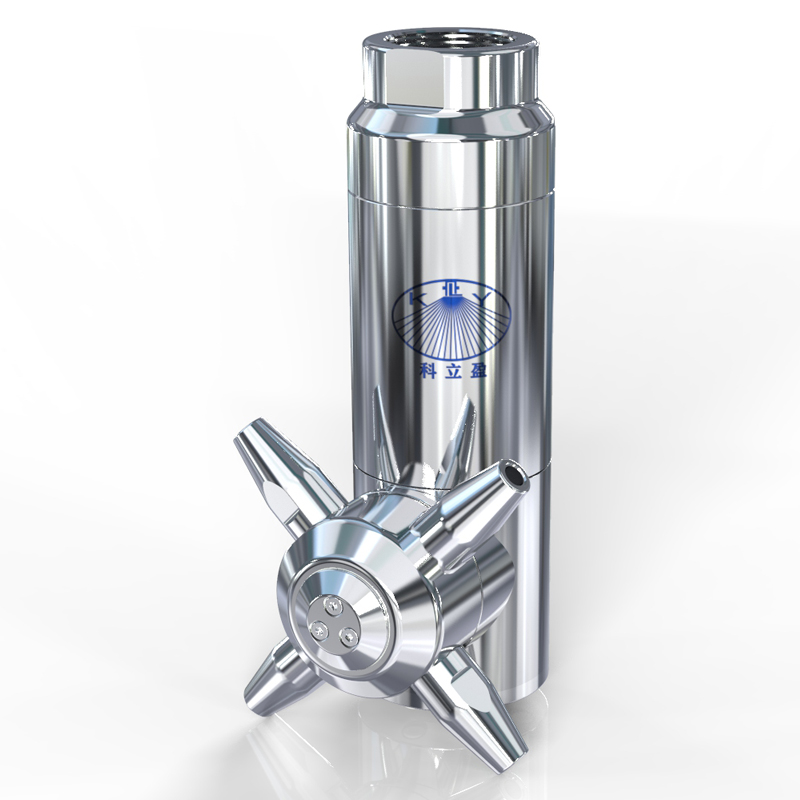

Product Photos:

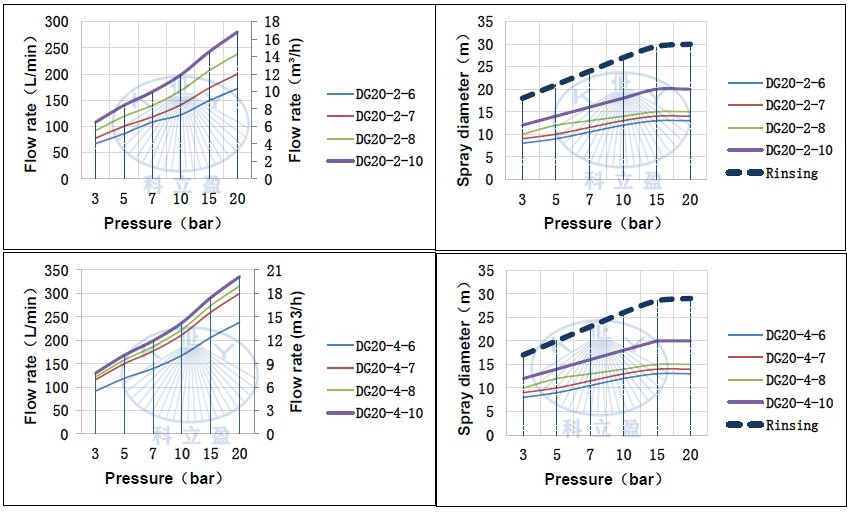

Performance data:

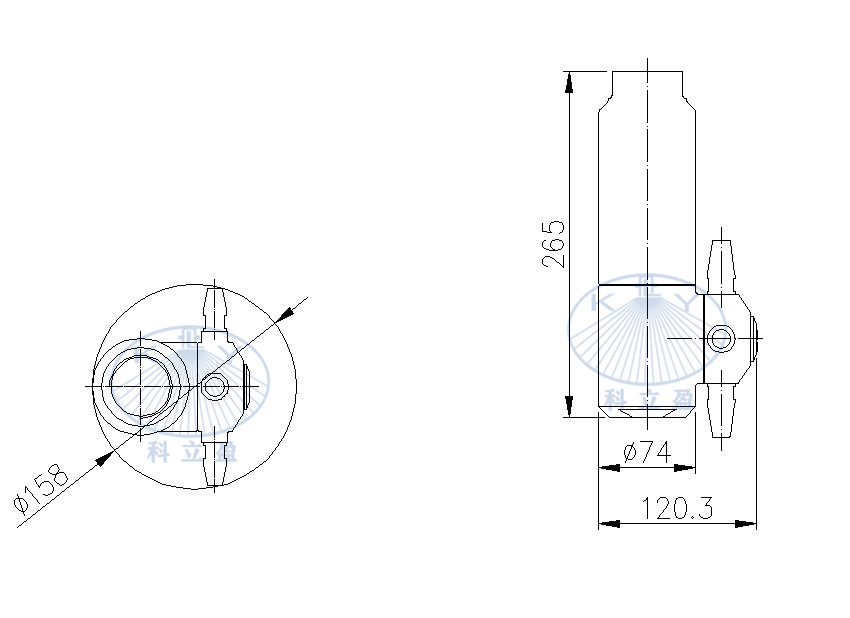

Dimensions:

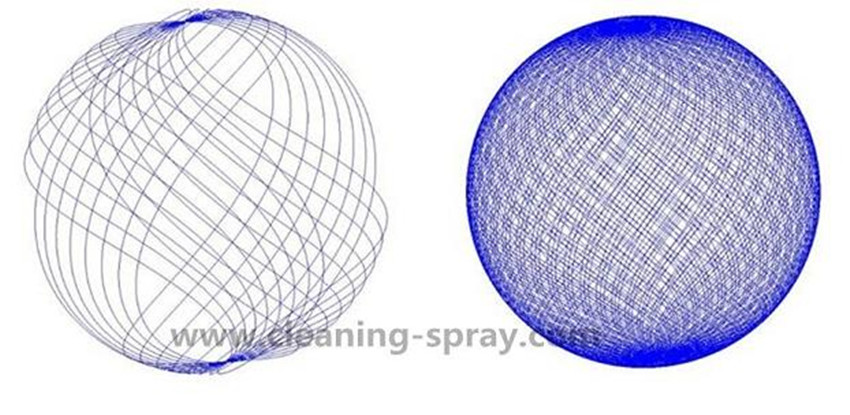

Cleaning process:

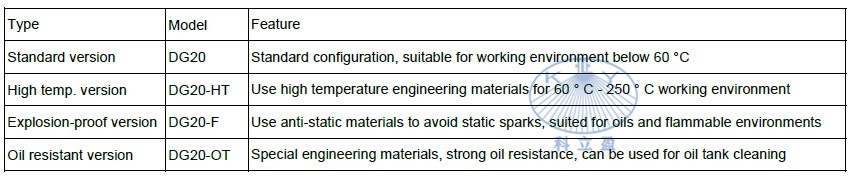

Type:

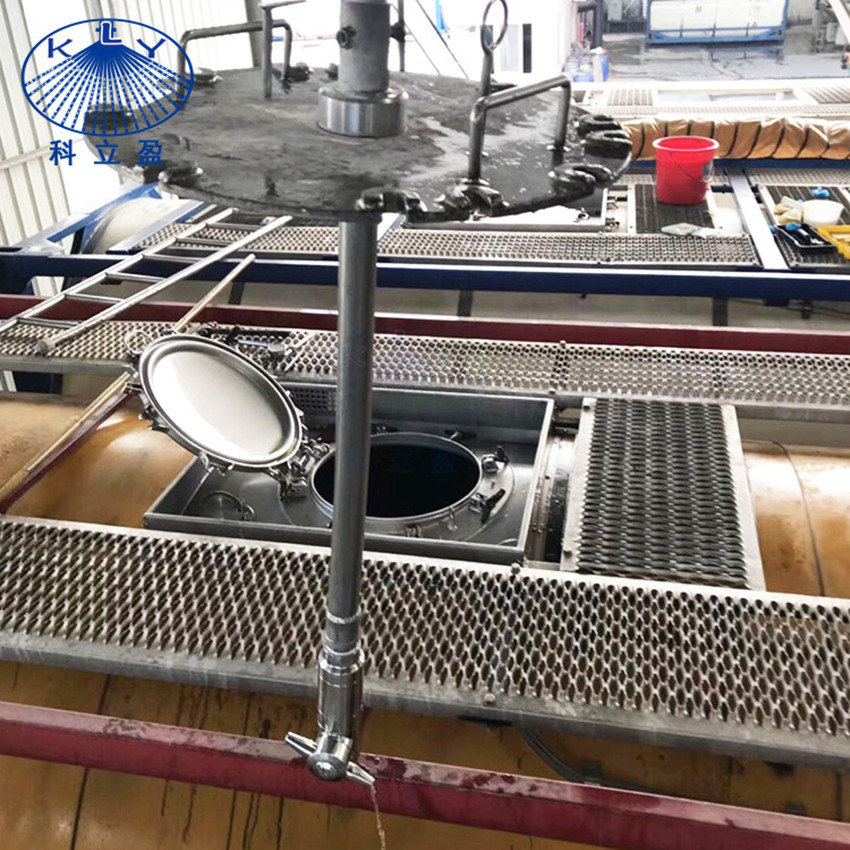

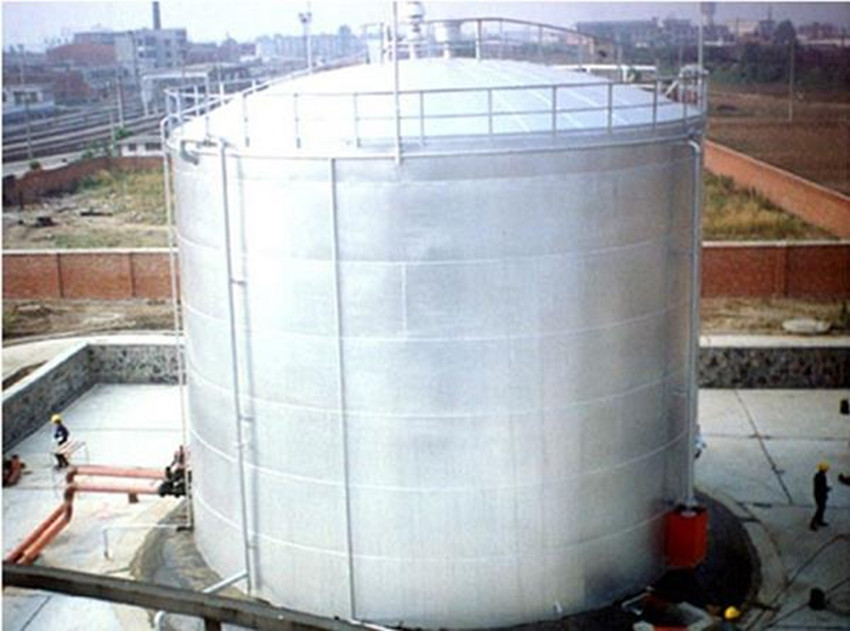

Application of DG20 3D rotary tank cleaning nozzle:

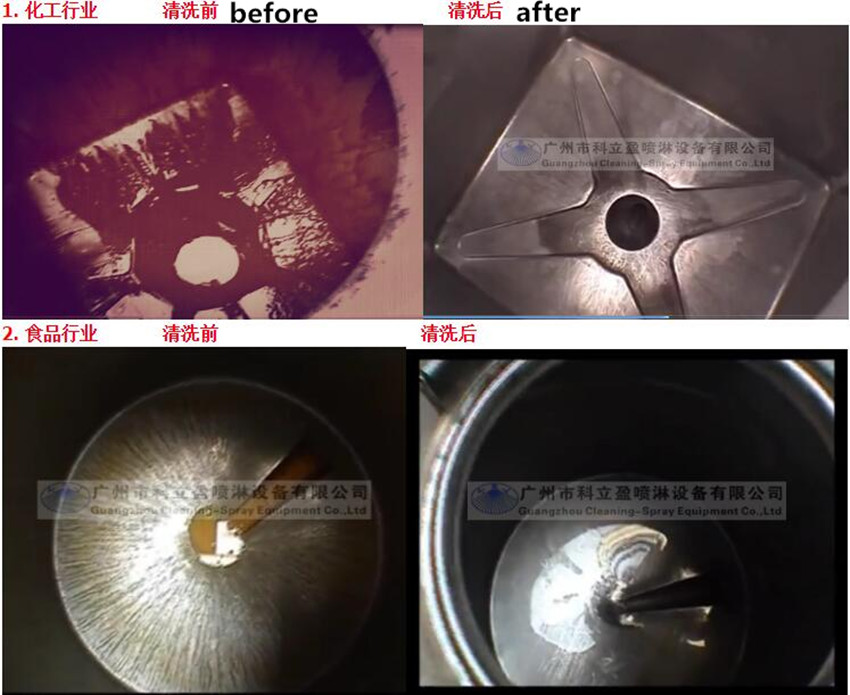

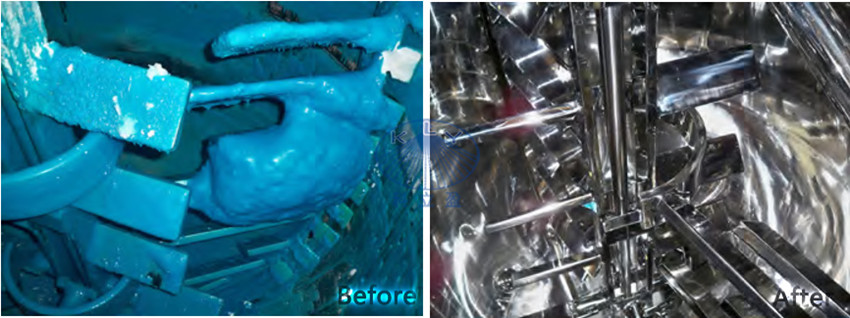

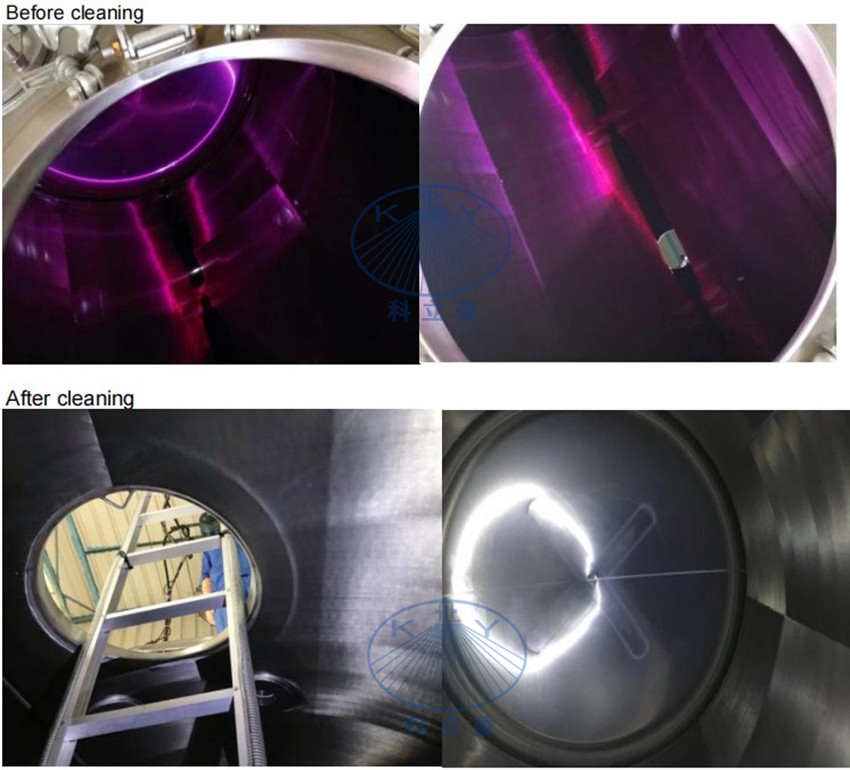

Cleaning effect:

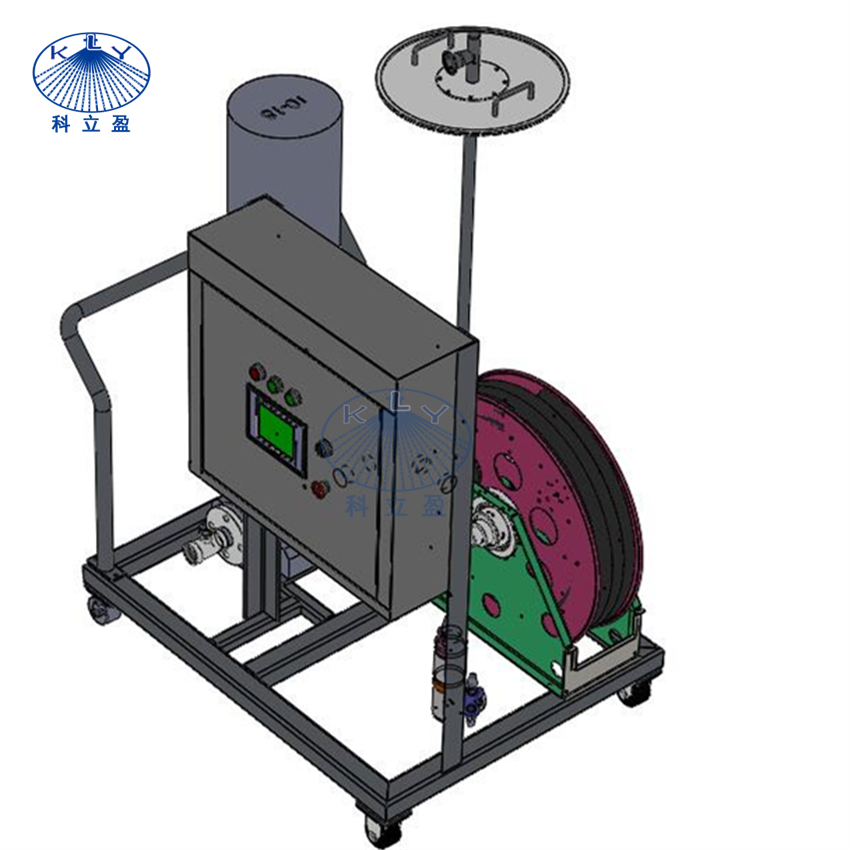

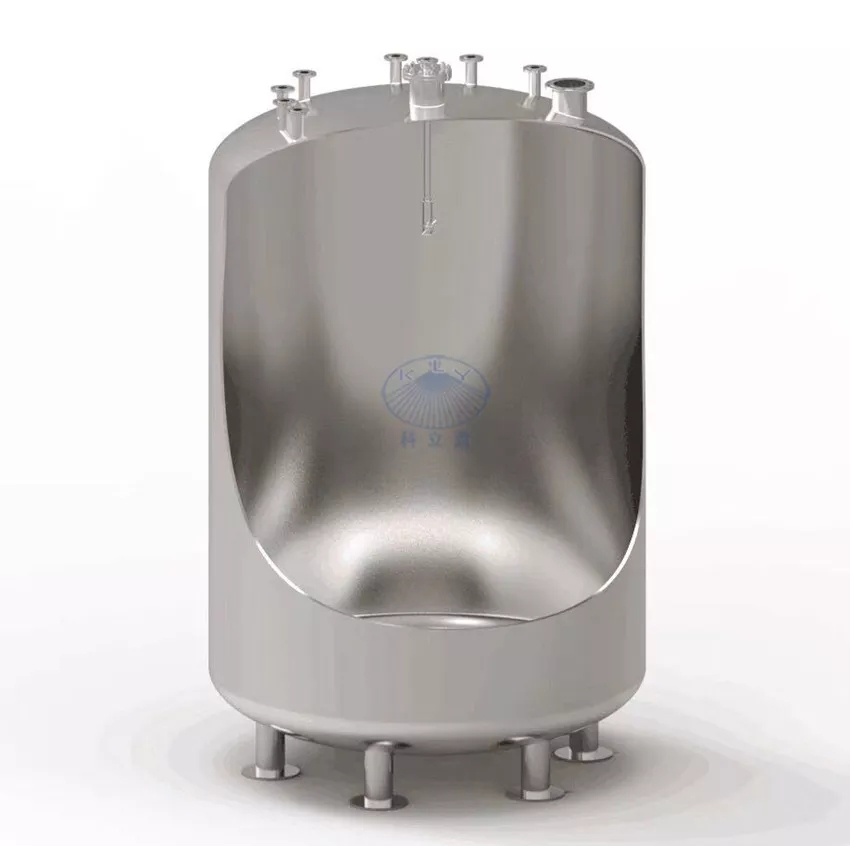

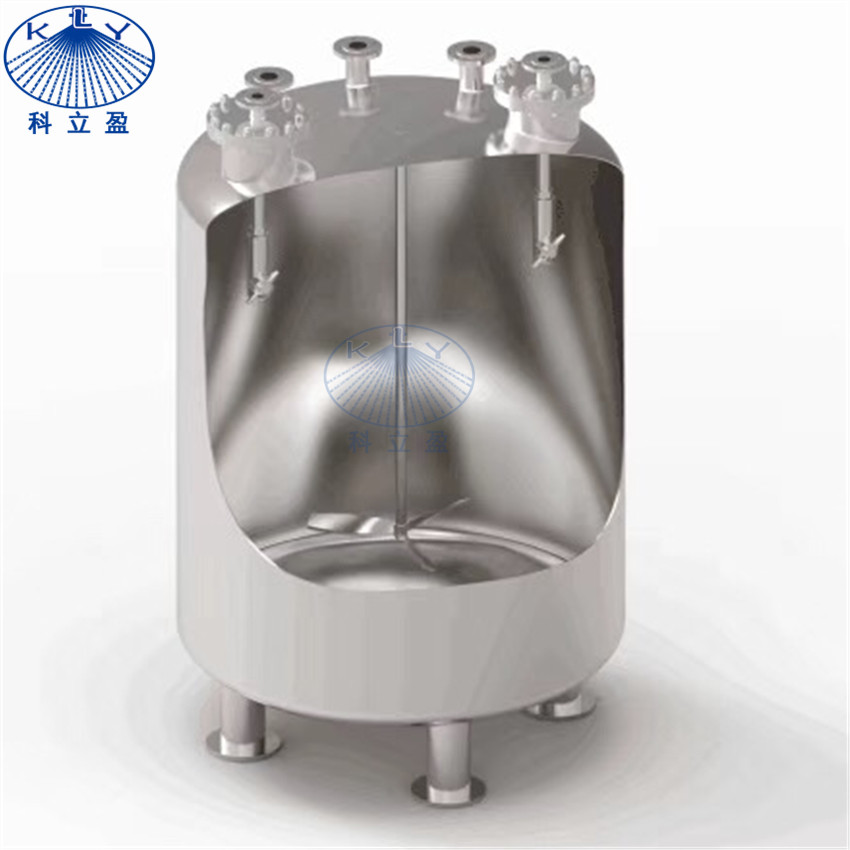

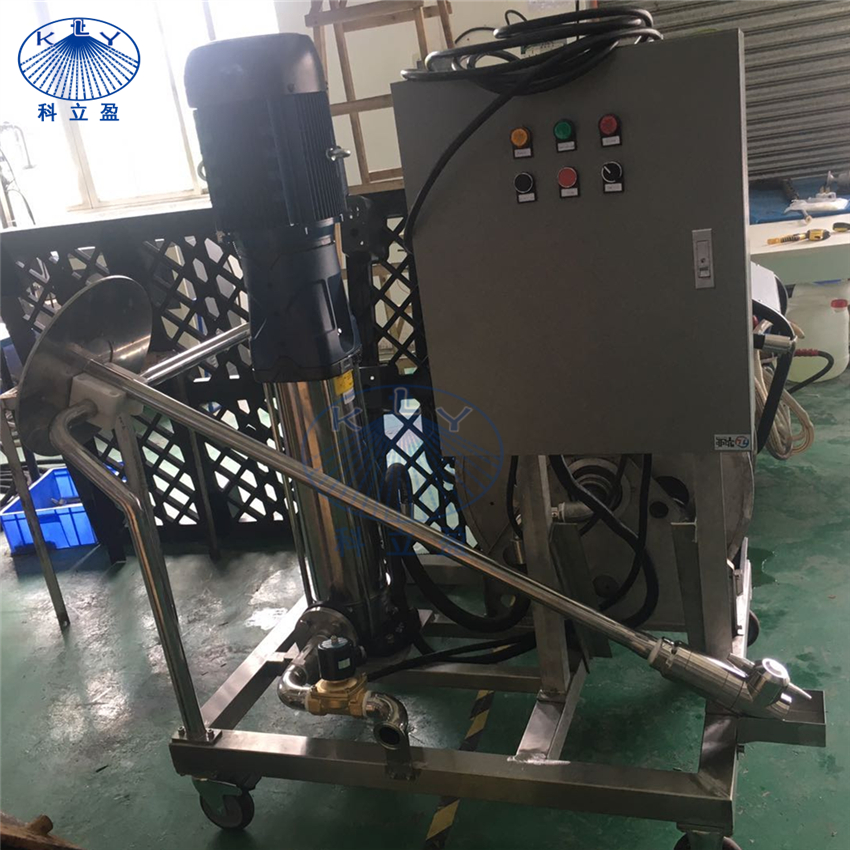

Tank cleaning system and DG20 tank cleaning nozzle:
Packing:
