KLY TCM15 1 1/2" portable tank cleaning machine
Model | KLY TCM15 1 1/2" portable tank cleaning machine |
Connection | 1 1/2" BSPP (NPT thread on request) |
Material | 316LSS |
Spray angle | 360 degree |
Pressure | 2-30 bar |
Recommended operating pressure | 5-15 bar |
Weight | 10 KG |
Min. tank openings | 165mm |
Installation | Operation in every direction is possible |
The TCM15 is a twin nozzle or four nozzle, nonprogrammable tank cleaning machine ideal for portable use. Particularly suitable for corrugated tanks where cleaning is required at more than one level without the use of fixed multi-stage systems.
It can also be used as a fixed installation either mounted on a standpipe from deck or submerged, installed in the bottom of the tanks as an effective compliment to any deckmounted machine.
The symmetrically opposed nozzles are driven by an integrated turbine and gearing unit providing safe and reliable starting and stable speed control. Rotation in the horizontal plane combined with vertical movement provides an almost spherical cleaning pattern. Speed will vary slightly according to nozzle size and pressure with one full cycle taking approximately 30 minutes.
Common application:
Cleaning tanker trucks
Cleaning rail cars
Cleaning petrochemical reactors
Cleaning residues from chemical tanks
Cleaning sewage tanks
Cleaning silt from water supply tanks
Cleaning pharmaceutical tanks
Cleaning food processing tanks
Cleaning pulp storage/processing tanks
Cleaning blenders
Cleaning storage tanks
Oil tankers
Product tankers
Chemical tankers
Dry bulk carriers
Barges
Offshore supply vessels (OSV) for driling mud tank cleaning systems
Platform supply vessels (PSV) and drill ships for mud pit tank cleaning systems
Anchor handling tugs
Drill ships
Platforms
Ferries
Cruise ships

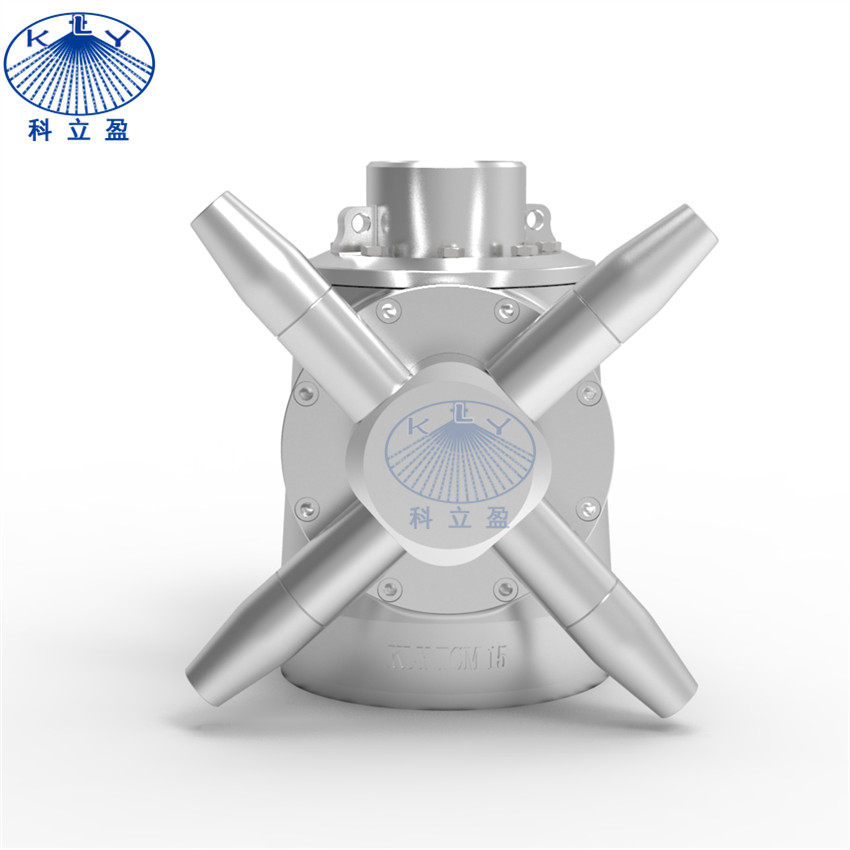

Product Photos of portable tank cleaning machine:

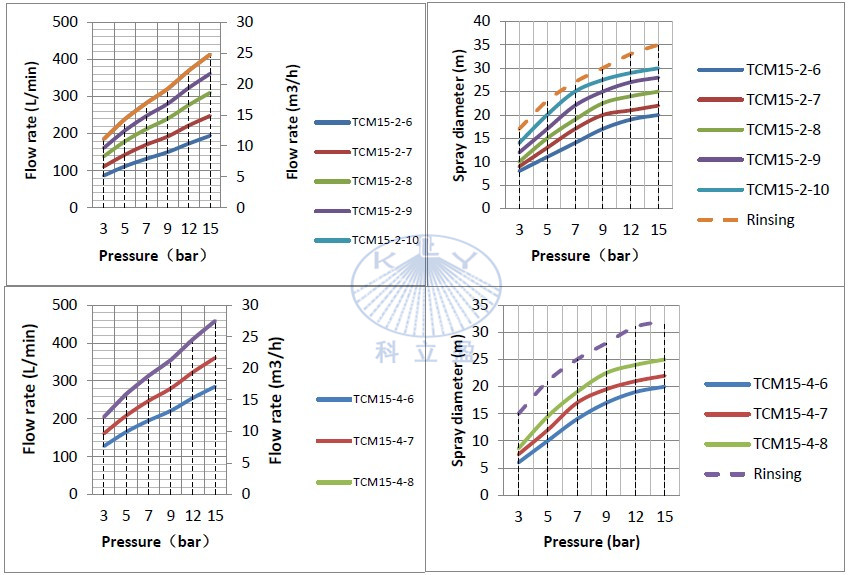

Performance data of tank cleaning machine

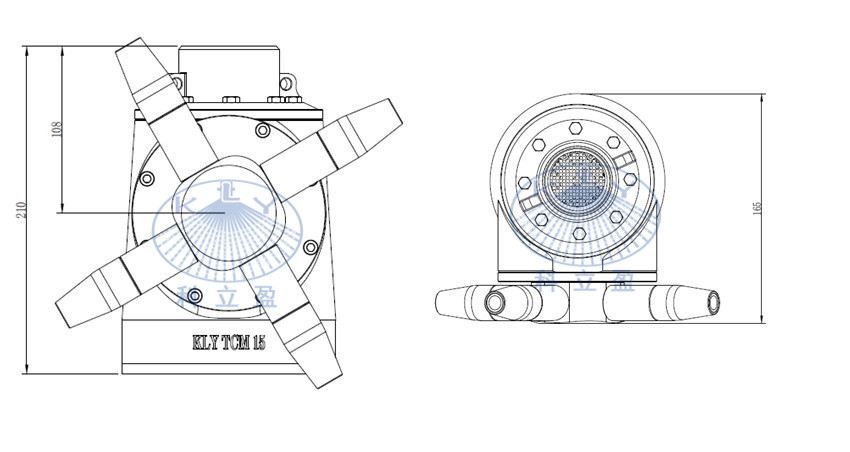

Dimensions of portable tank cleaning machine:

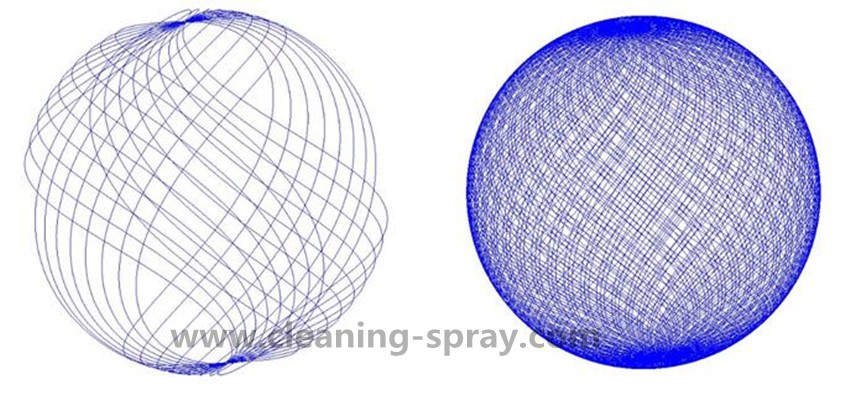

Cleaning process of tank cleaning machine:

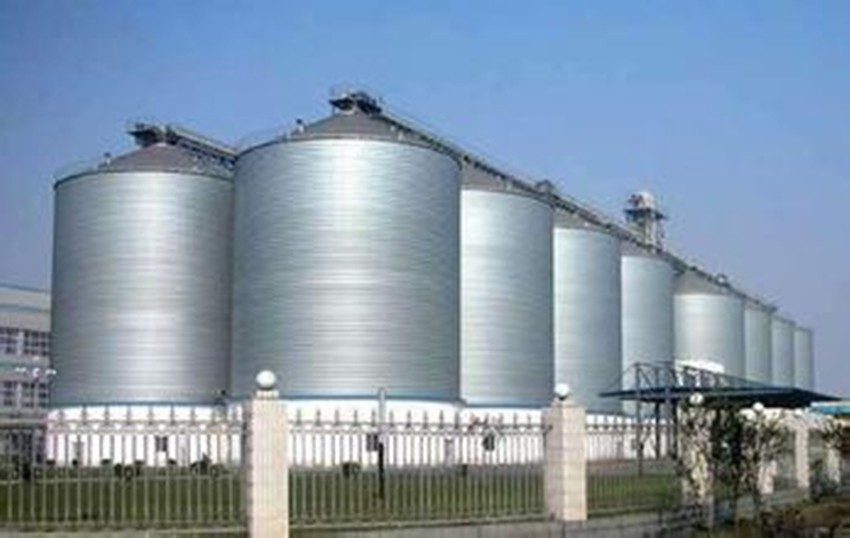

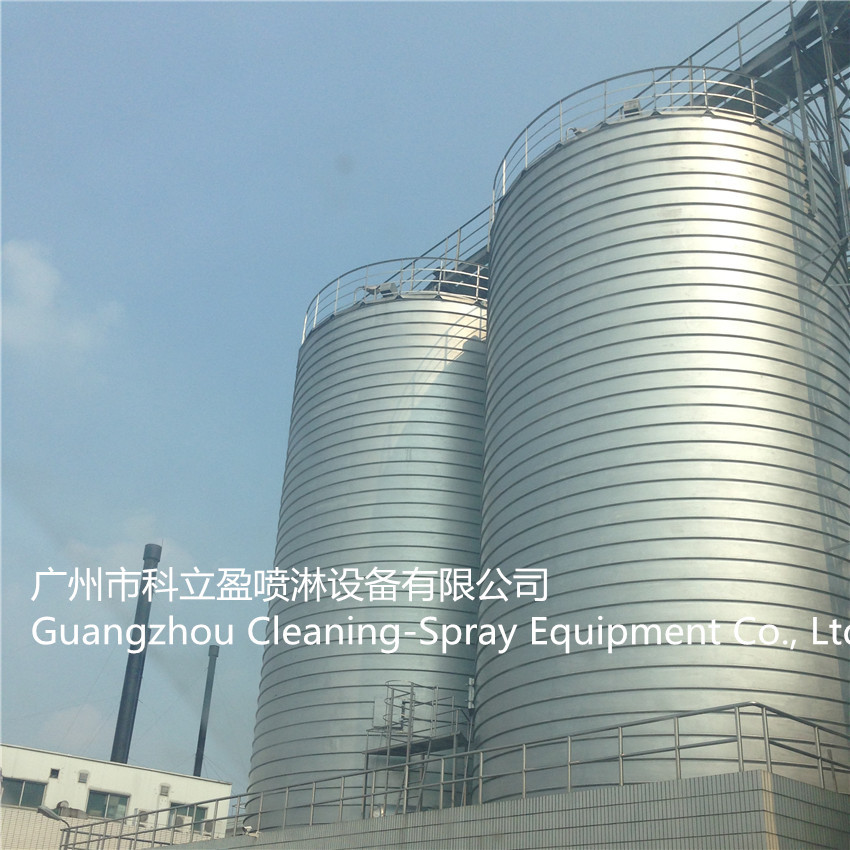

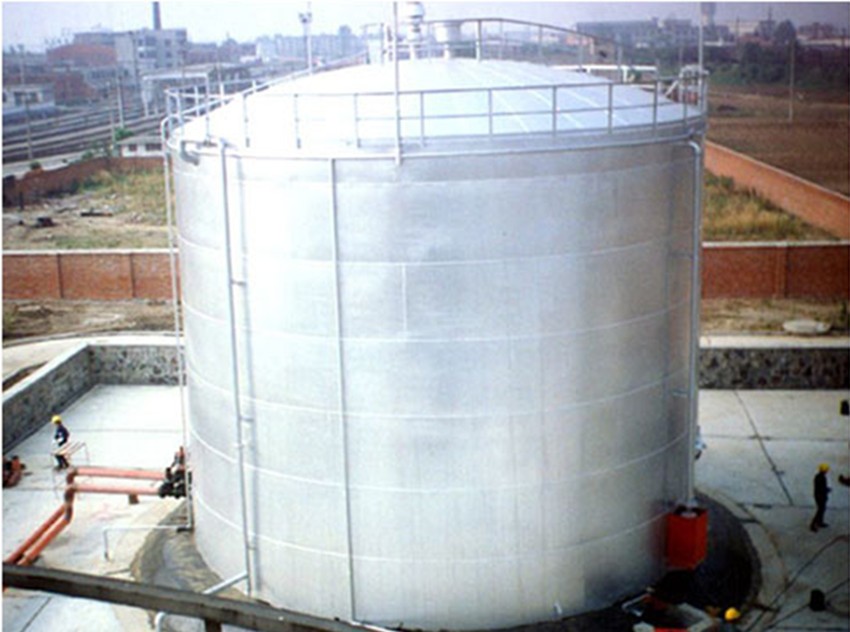

Application of tank cleaning machine:
