DG30 Large Tank Cleaning Head, high pressure tank cleaner

Portable fuel storage tank cleaning machine

Fermentor tank cleaning, fishing vessel cleaner, reactor tank cleaning, marine vessel tank cleaning machine

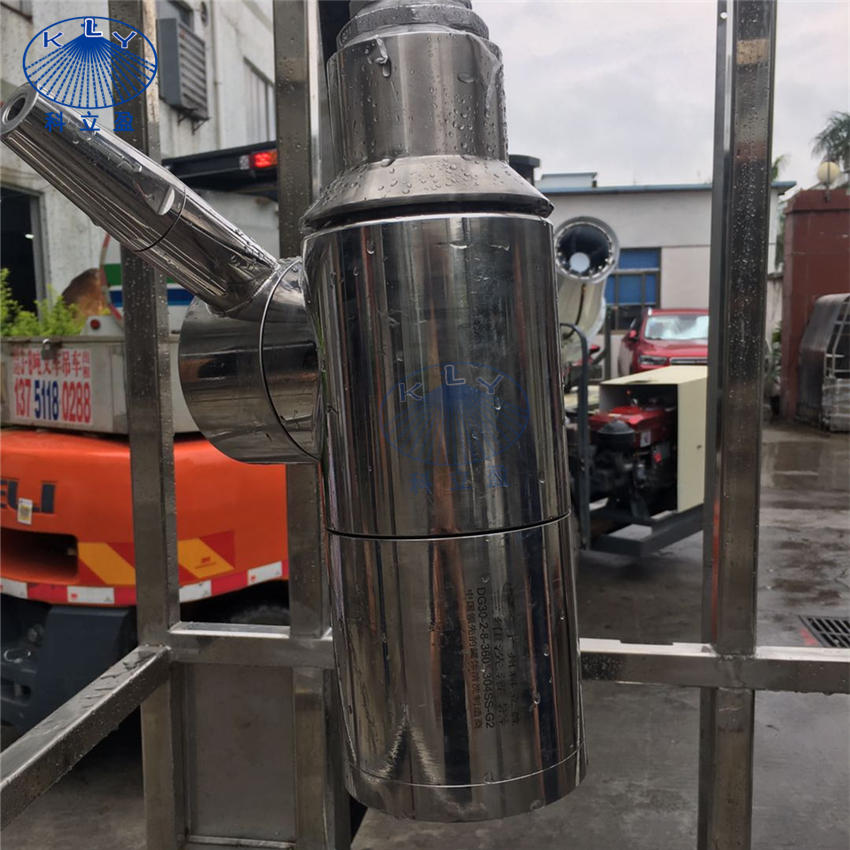

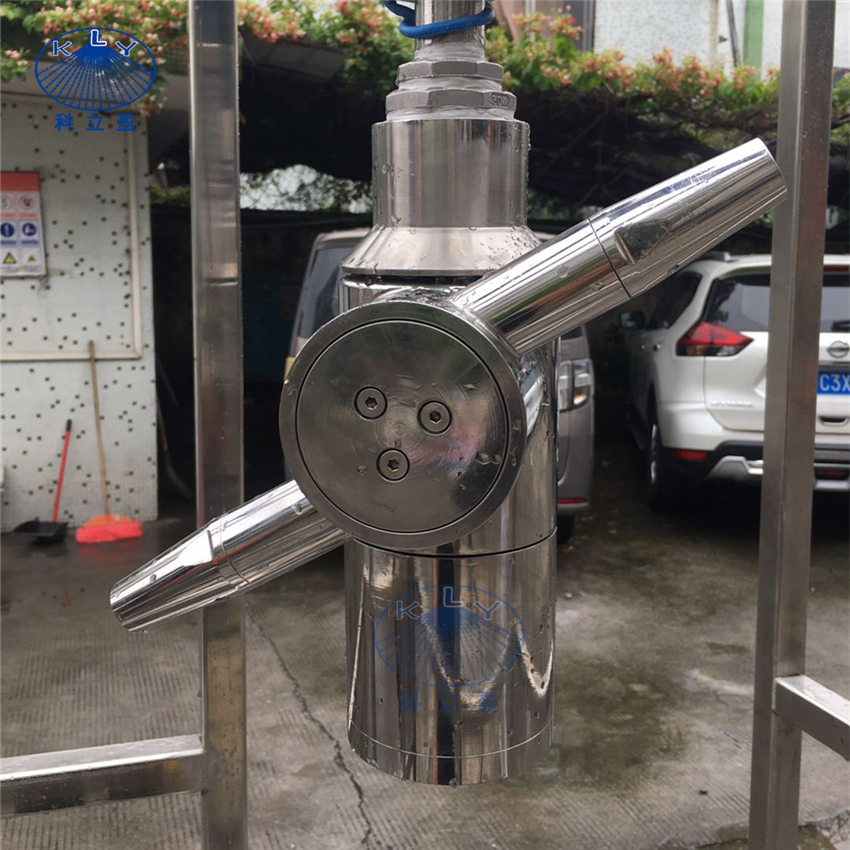

DG30 is a twin nozzle, nonprogrammable tank cleaning machine ideal for portable use. Particularly suitable for corrugated tanks where cleaning is required at more than one level without the use of fixed multi-stage systems.
It can also be used as a fixed installation.

Working principle:

The symmetrically opposed nozzles are driven by an integrated turbine and gearing unit providing safe and reliable starting and stable speed control. Rotation in the horizontal plane combined with vertical movement provides an almost spherical cleaning pattern. Speed will vary slightly according to nozzle size and pressure with one full cycle taking approximately 8-30 minutes.

Design feature:

• High performance cleaning

• Very high cleaning performance already at low pressure

• Driven and lubricated by the cleaning fluid

• Systematically cleans the entire tank interior(360°)

• Robust, low-maintenance stainless steel construction

• Driven by an integrated turbine and gearing unit

Common application:

• Cleaning tanker trucks

• Cleaning rail cars

• Cleaning petrochemical reactors

• Cleaning residues from chemical tanks

• Cleaning sewage tanks

• Cleaning silt from water supply tanks

• Cleaning pharmaceutical tanks

• Cleaning food processing tanks

• Cleaning pulp storage/processing tanks

• Cleaning blenders

• Cleaning storage tanks

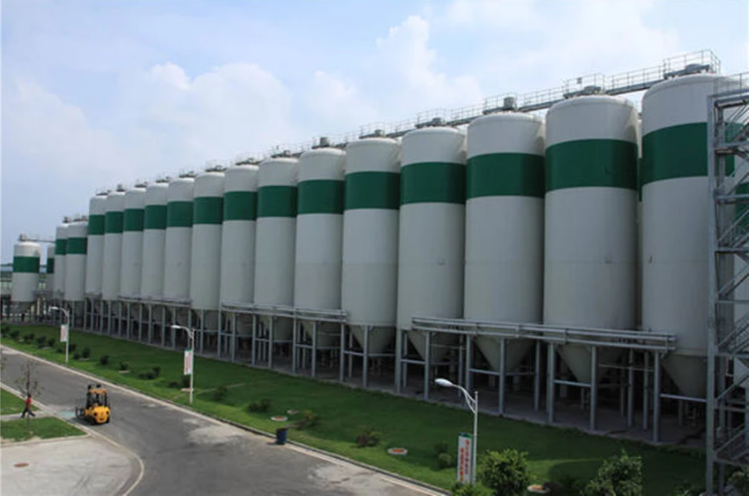

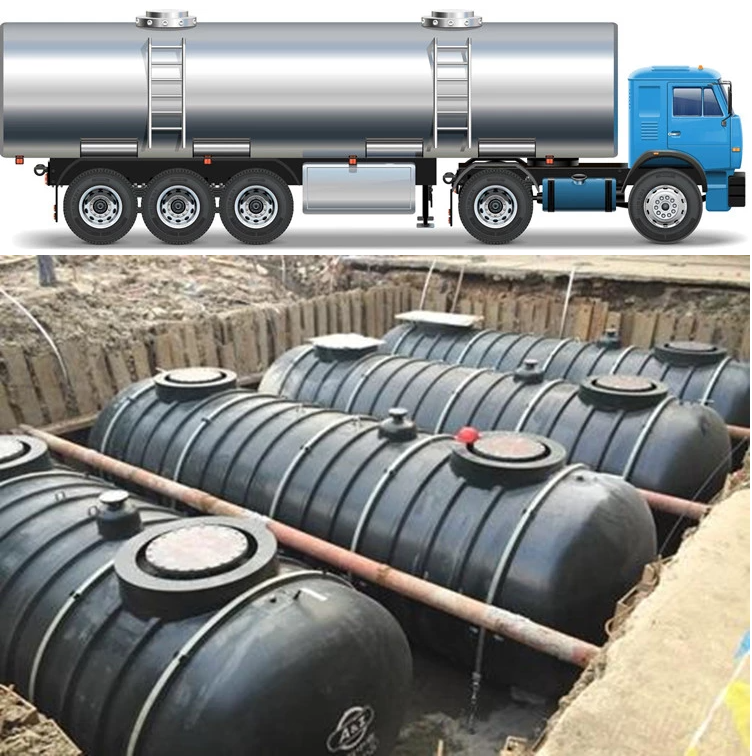

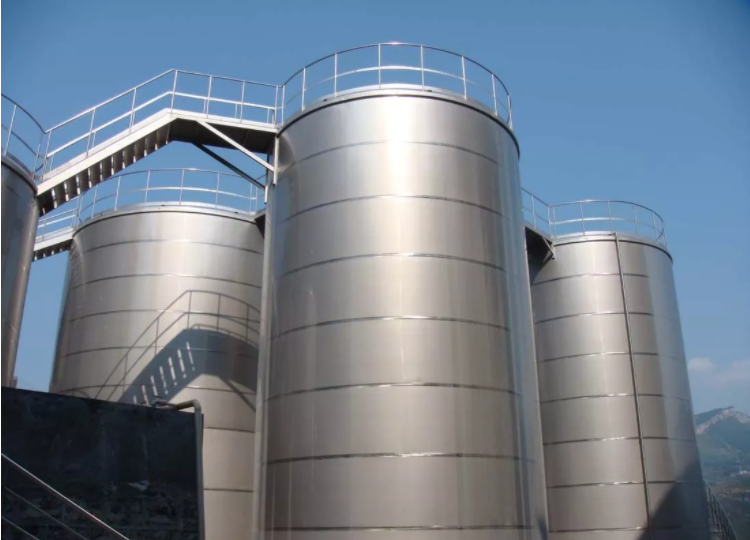

Application:
