High Pressure Tank Cleaning Nozzles

Mob: +8613725126489

Fax: +86-020-36269969

E-mail: fionaye@cleanspraying.com

Address:No.5,Nanling Industrial Zone, Longgui, Taihe Street,Taihe Town, Baiyun District, Guangzhou, 510445 Guangdong, China

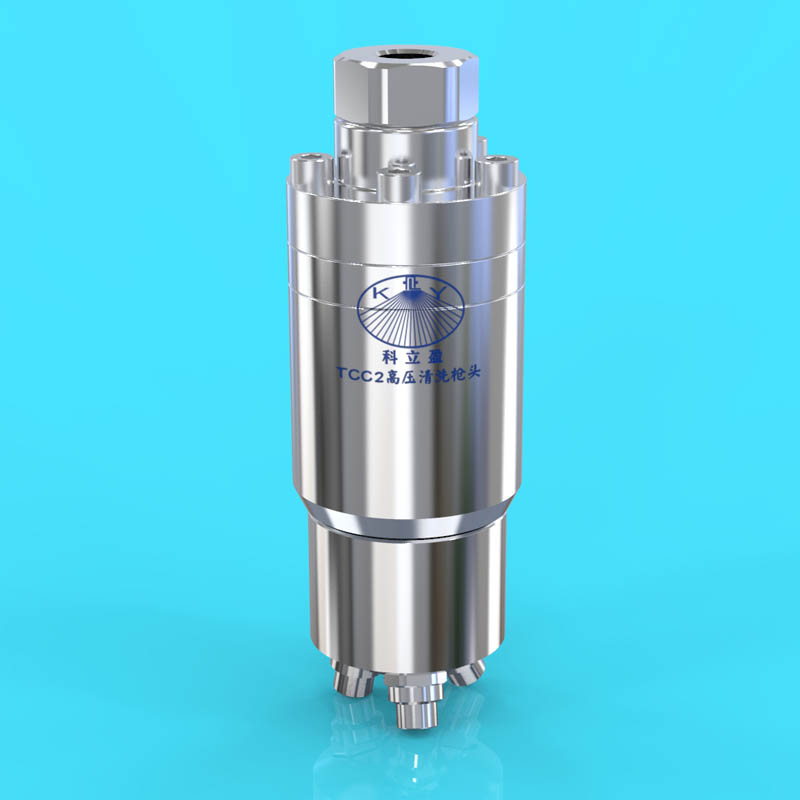

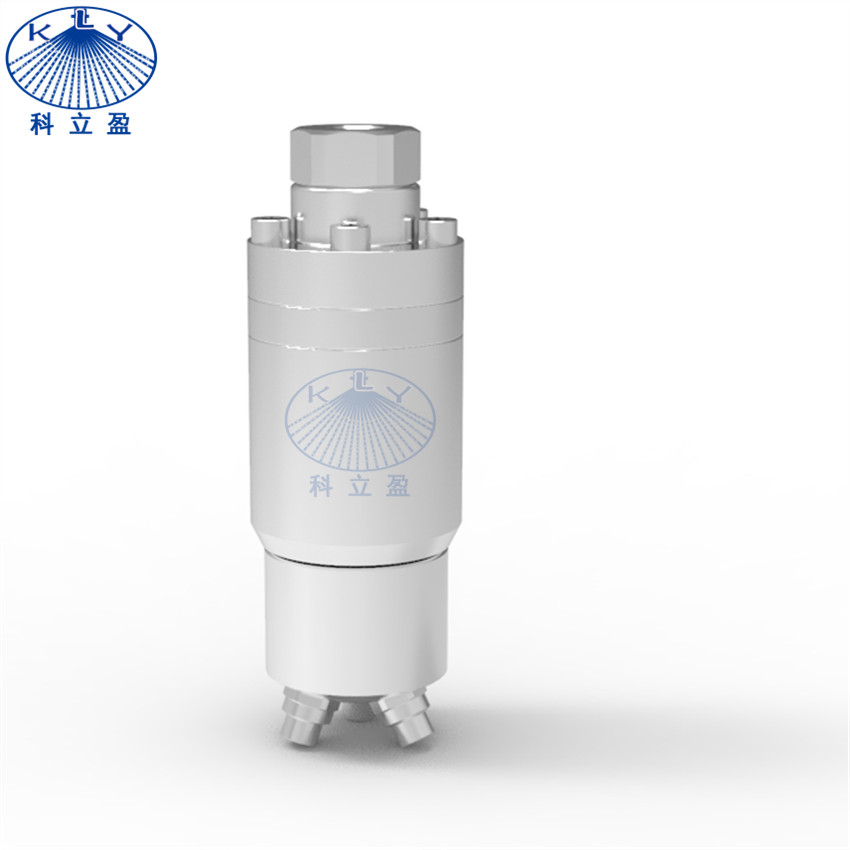

TCC2 self-rotating high pressure cleaning head

Send Inquire

TCC2 self-rotating high pressure cleaning head

Model	High pressure Self-rotating cleaning head
Material	304SS
Connection	1/4" thread
Flow rate	20-60 L/min
Recommanded pressure	30-140 bar
Temperature	95°
Max. tank diameter	1-2m
Application	rinsing and cleaning of trash can
Weight	1.2KG

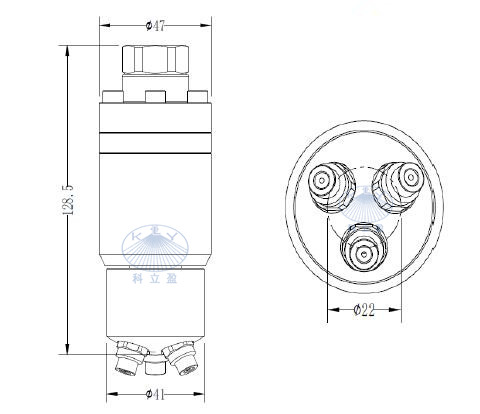

Min. tank openings	47mm
Filteration	Line strainer with a mesh size of 0,3 mm/50 mesh

Working principle
The washer drives impeller through cleaning liquid and drives transmission mechanism. Gear reduction mechanism drive rotating ball head, and scientifically arrange cleaning nozzle on the ball head to achieve predetermined cleaning angle and effective cleaning.

Design features :

Compact design, high cleaning efficiency, more than three times the efficiency of traditional cleaning heads
Fan-shaped or water jet nozzles can be replaced as required

Common application:

High pressure cleaning head is suitable for automotive, chemical, environmental protection industries and occasions that require pressure cleaning, such as trash can cleaning tips.
