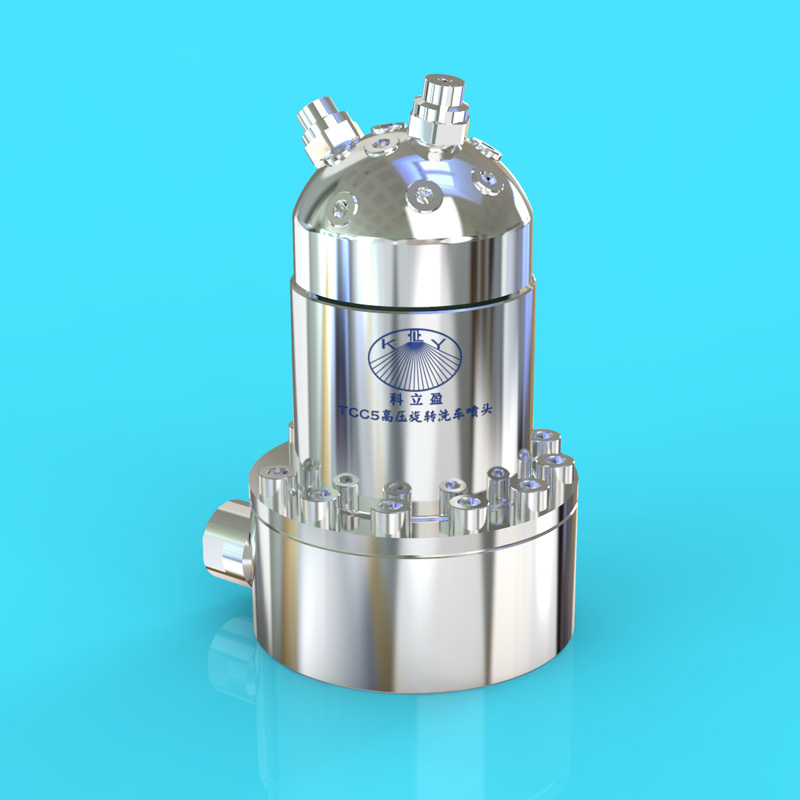

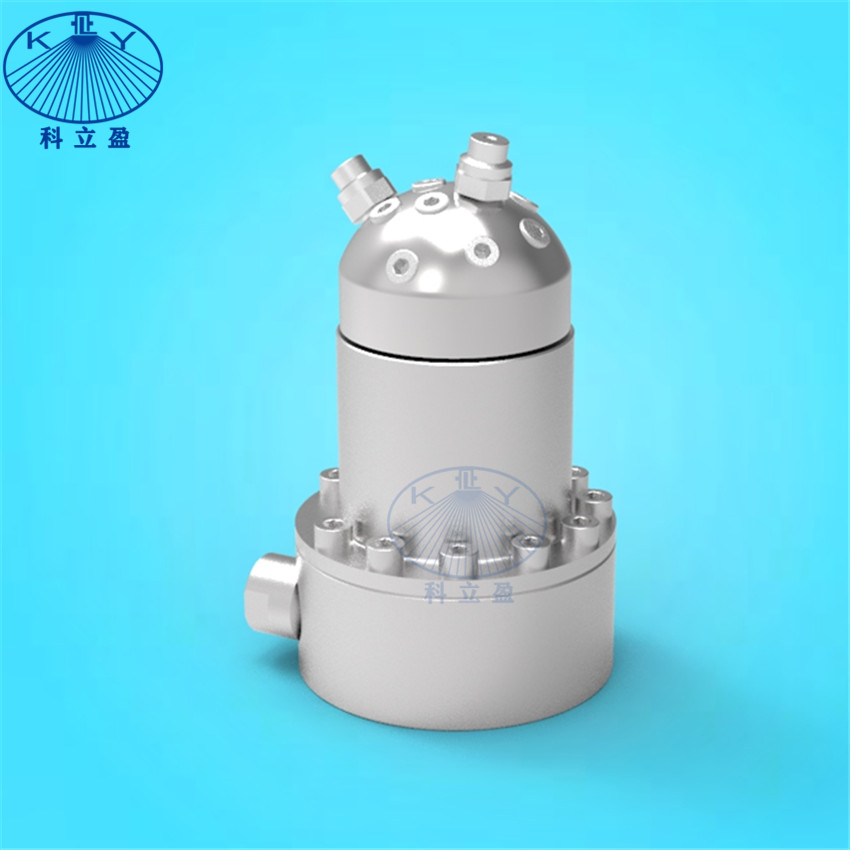

TCC5 self-spinning high pressure tank cleaner

Send Inquire

TCC5 self-spinning high pressure cleaning heads

Model	High pressure tank cleaning nozzle
Material	304SS
Connection	3/8" thread
Flow rate	20-60 L/min
Recommanded pressure	20-150 bar
Temperature	95°
Max. tank diameter	1-3.5m
Application	rinsing and cleaning of trash can
Weight	3KG
Min. tank openings	127mm
Filteration	Line strainer with a mesh size of 0,3 mm/50 mesh

Working principle
The cleaner drives the impeller through cleaning fluid, to drive the rotary ball head through the reduction gear. Using different nozzle arrangements on the spray head to change the cleaning angle from 0 to 120 degrees and ensure the effective cleaning.

Design features :

Optimized structure design enables the water jet to produce greater impact
Excellent seal design, ensure a low leakage of 1% of water, thus more economical cleaning fluid.

Common application:

TCC5 high pressure 2D rotary washer is designed for cleaning tanks in auto industry, chemical industry, coating industry and where high-pressure cleaning is required,such as high speed train carriage.
