HP1000 1000 bar 3D tank cleaning heads

HP 1000 tank cleaning heads are used for cleaning polymerization tanks,cleaning reactors tank , spray dryers, and various other tanks.

The cleaning nozzle rotates and revolves due to the reactive force of the high-pressure water spray, thoroughly cleaning the inside of tanks.

Common Application of 3D tank cleaning heads:
HP1000 high pressure reactor cleaning head is suitable for three dimension cleaning of containers, reactors, autoclaves,tank , such as chemical, petrochemical, synthetic fiber, paper and food industry, chemical raw materials, Coating industry and occasions requiring ultra-high pressure cleaning.
HP-1000 reactor cleaning head can effectively clean boiler deposits, Coke, polymer, PVC resin or residue that is difficult to remove.

Residue:

• Boiler deposits

• Coke

• Polymer

• PVC resin

• And so on

Working principle:

The high-pressure cleaner drives the transmission mechanism to rotate through the principle of reaction force, and passes through reducer regulate rotation speed, realize revolution and rotation through the transmission mechanism according to the set trajectory, so as to form a 360-degree spray pattern to achieve complete tank coverage.

Design feature of tank cleaning heads:

• It adopts dynamic balance design to maintain stable rotation and swing under high pressure.

• The speed and cleaning cycle can be adjusted steplessly, with a long service life.

• Cleaning trajectory is uniform and dense, ensuring efficient and high-quality cleaning.

• Unique nozzle structure design makes high-pressure water jet with greater impact force.

• Powerful high-pressure water jet can efficiently clean stubborn dirt.

• No need for people to enter the restricted space, greatly reducing labor intensity, improving the working environment, and avoiding safety hazards.

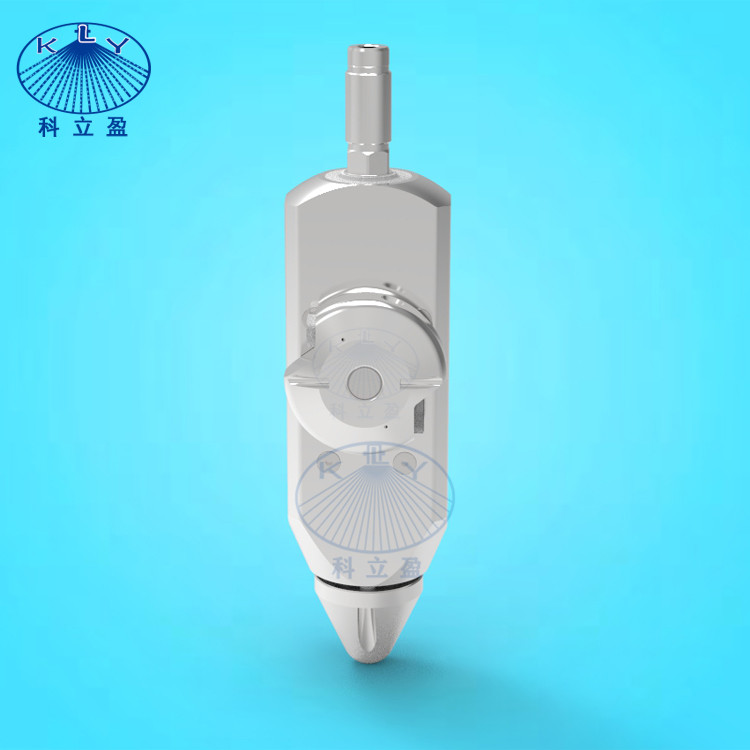

Product photo of HP1000 3d tank cleaning heads:

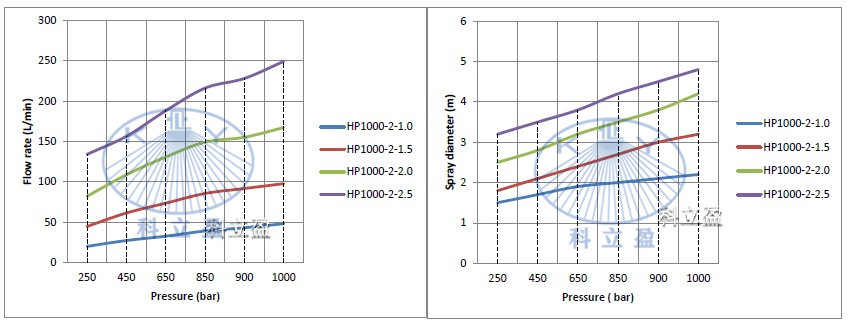

Performance data of 3D nozzle tank cleaning:

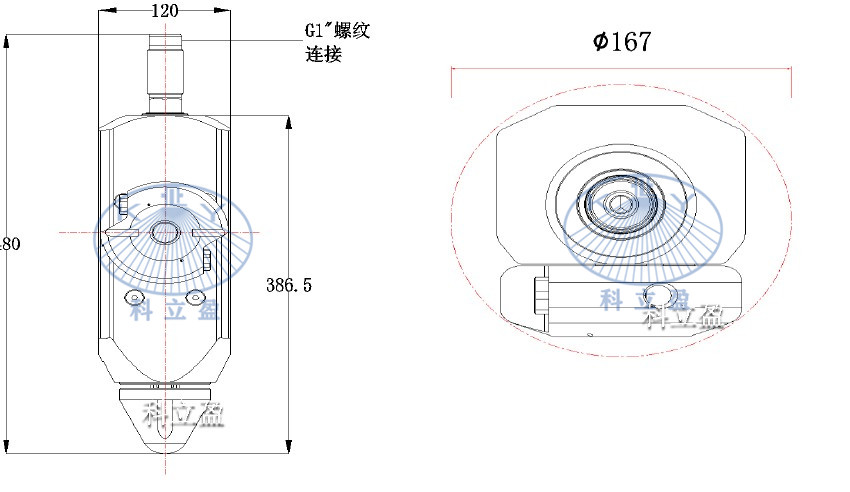

Dimension:

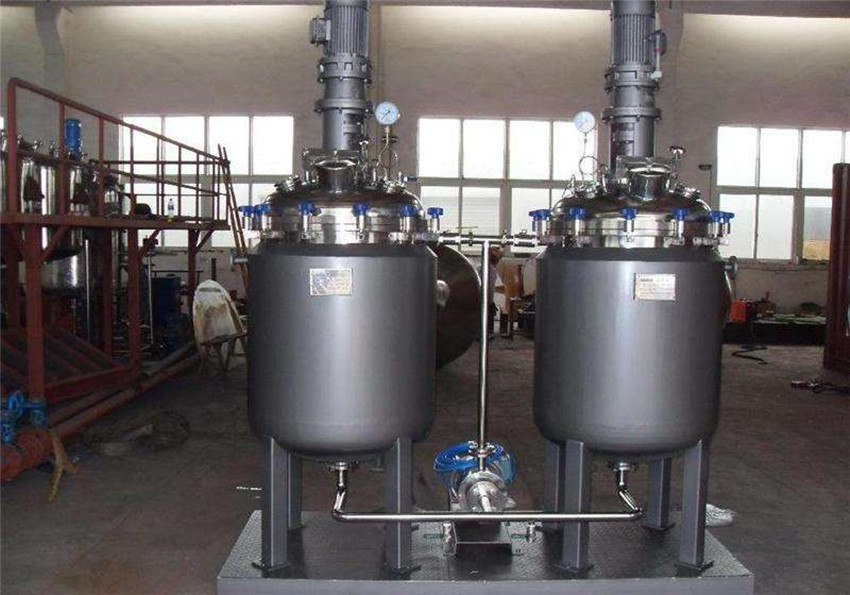

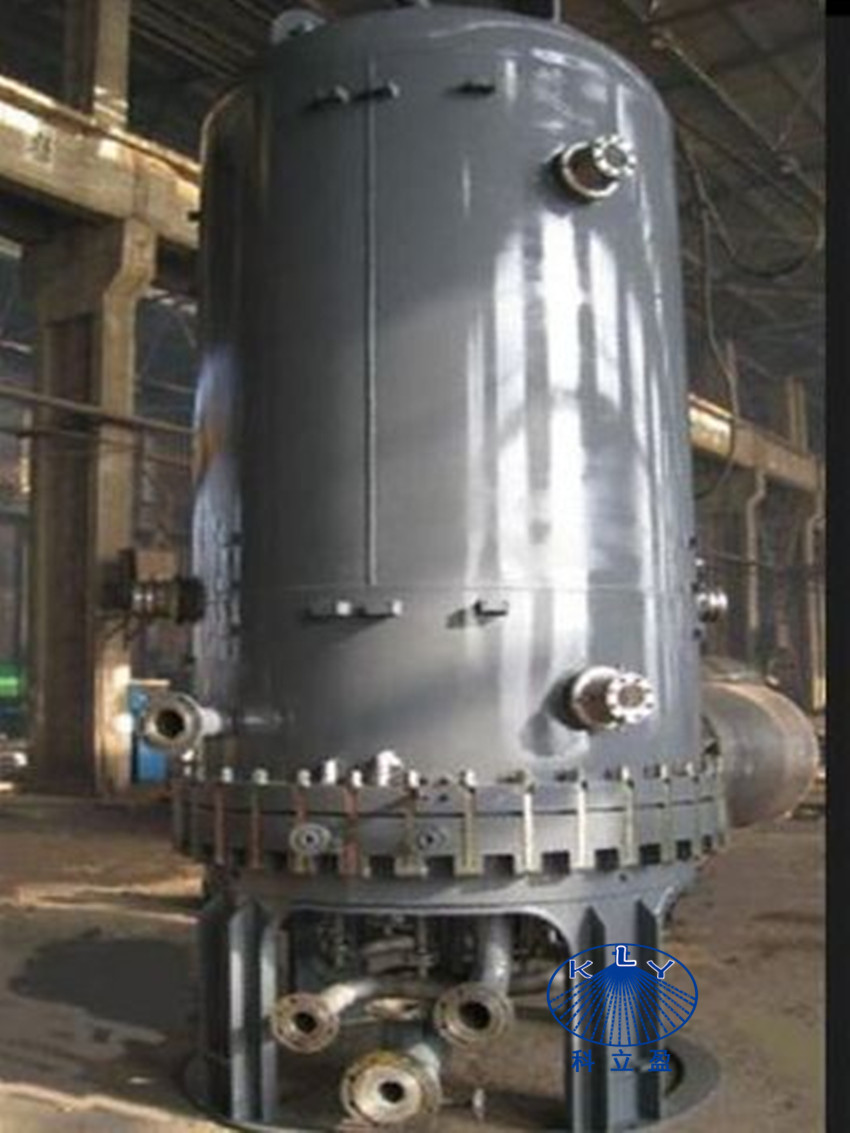

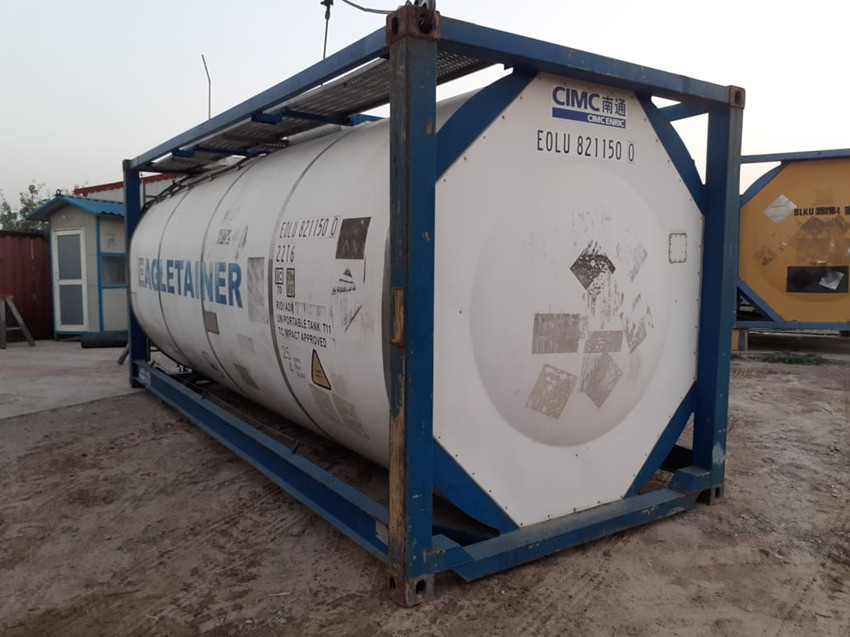

Application:
